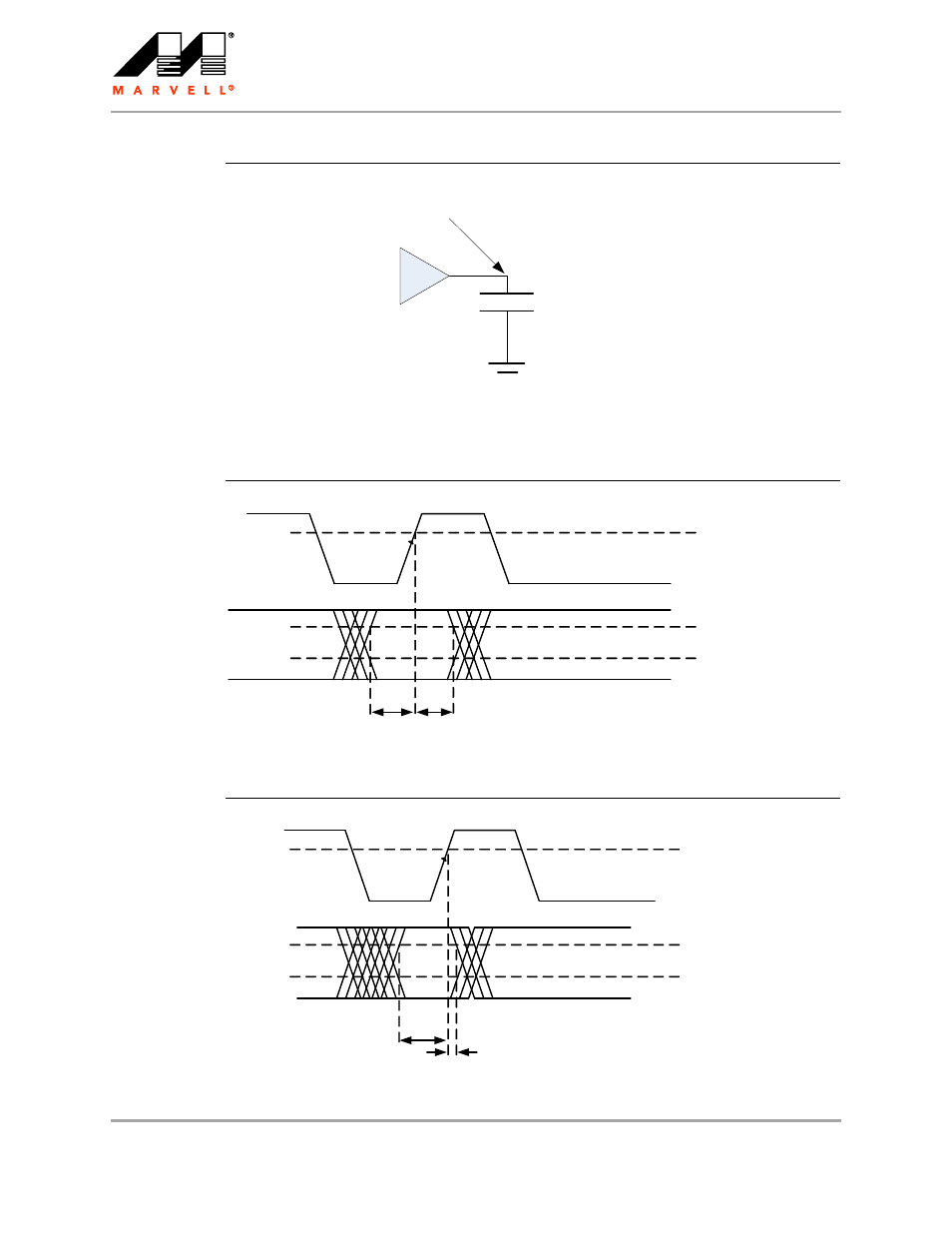

Figure 18: MDC Master Mode Test Circuit
8.6.6.3
SMI Master Mode AC Timing Diagrams
Figure 19: SMI Master Mode Output AC Timing Diagram
Figure 20: SMI Master Mode Input AC Timing Diagram
CL
Test Point
MDC
MDC
MDIO
VIH(min)
VIH(min)
VIL(max)
tOVA
tOVB
MDC
MDIO
VIH(min)
VIH(min)
VIL(max)
tSU
tHO
