3. Utilities
R100 Wireless Gateway
25
Chapter 3 - Software Configuration

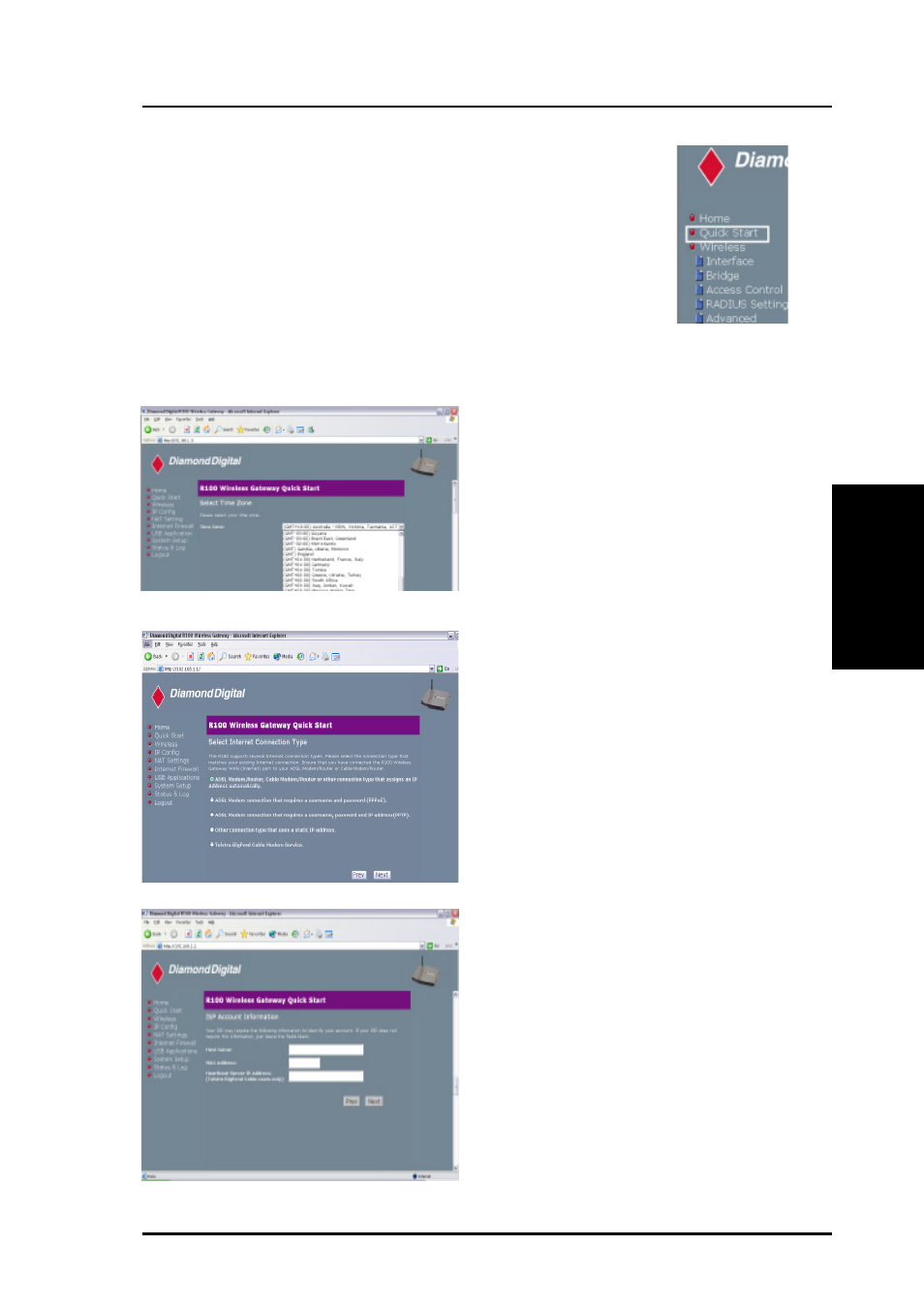

Select your time zone or the
closest region. Click Next to
continue.
Wireless Gateway Mode
There are three operation modes for the R100 Wireless
Gateway. The default operation mode of the R100 is
Wireless Gateway Mode. Please refer to System Setup
– Operation Mode in detail. Click Next to enter the
Quick Setup page. Follow the instructions to set up
the R100 Wireless Gateway.
Quick Setup in Wireless Gateway Mode
Select the connection type. Click
Next to continue.
Enter the Host name of your ISP
, the MAC address of the PC’s
network card and the Heartbeat
Server IP adress (if required).
Click Next to continue.
