Level 2 Service Manual Disassembly
3. Apply a small amount of force to the lower right side of the display assembly
and lift the left side of the display out of the front housing (see Figure 25).
4. Carefully lift the right side of the display assembly out of the front housing.
5. To replace, align the display assembly to the front housing.
6. Carefully insert the right side of the display assembly into the front housing.
7. Carefully lower the left side of the display assembly into the front housing.
8. Apply slight pressure to all four corners of the display assembly to ensure that
all four display assembly catches are properly engaged.
9. Replace the keyboard, main board, daughter board, antenna, rear housing,
battery and battery door as described in the procedures.
060421o

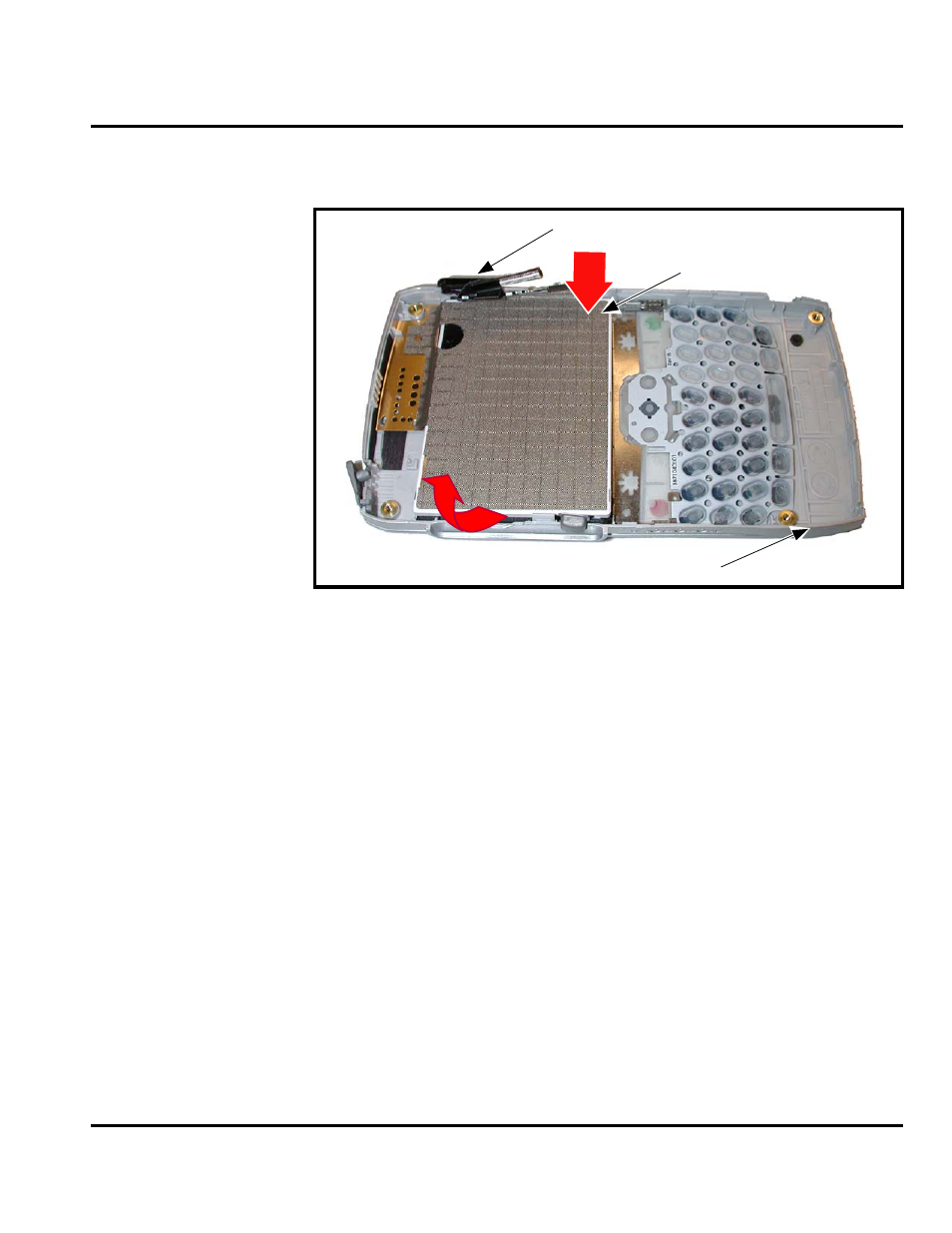

Figure 25. Removing the Display Assembly
G
The flexible printed cable (FPC) (flex) is easily damaged. Exercise extreme care when
handling.
Display assembly
Display Flex
Front housing
