Motorola CDMA 800/1900 MHz User Manual
Page 33
6809495A97-O
May 15, 2006
33
Level 2 Service Manual
Disassembly
7.
Attach Bootstrap as shown. Apply “L” shaped adhesive to Main board and align
with the edges of the shield (see Figure 21). Remove the adhesive liner before
attaching to keyboard.

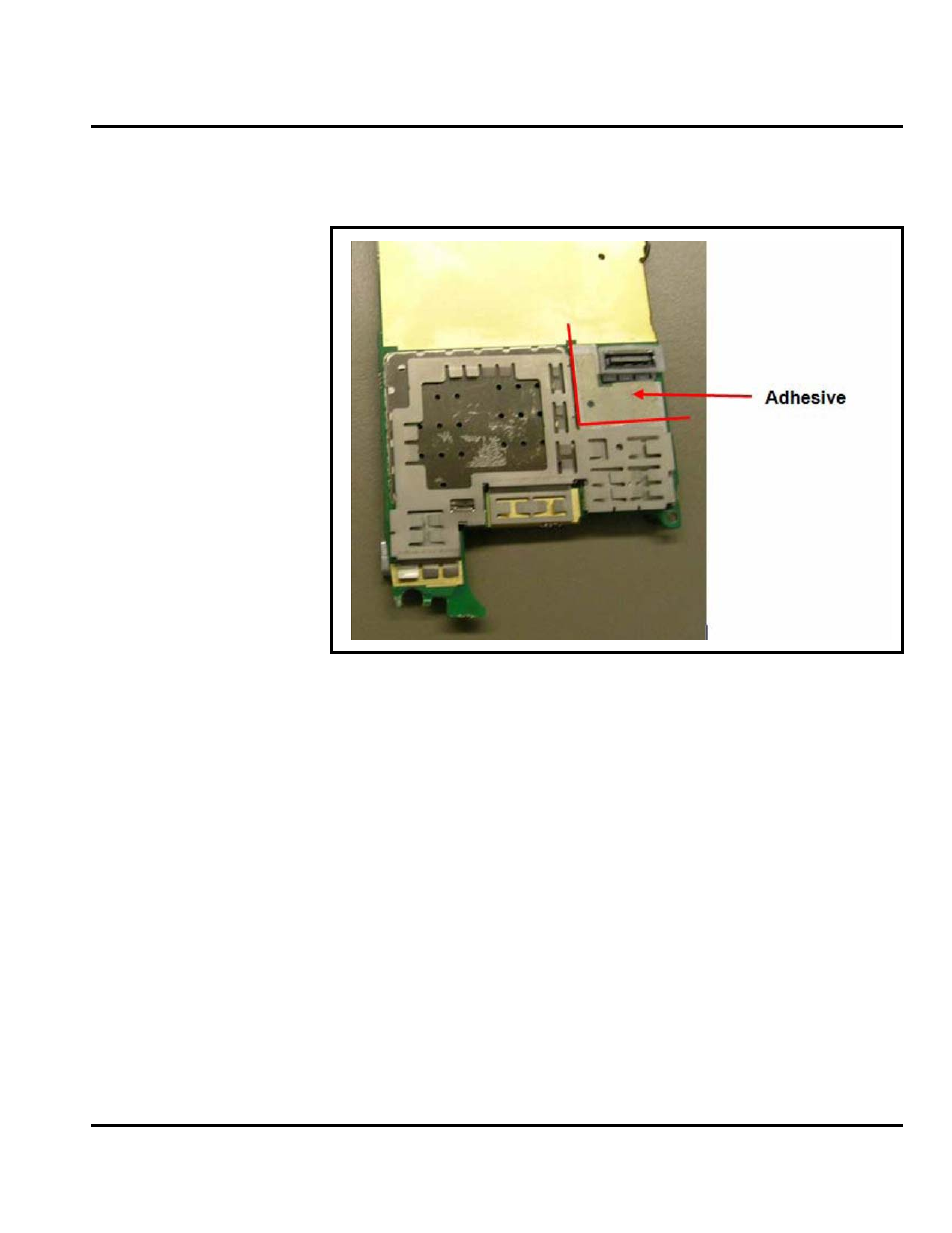

Figure 21. Aligning the Keyboard Adhesive Tape
