6809501A03-O May 15, 2006 13
Level 2 Service Manual General Operation
A 5-way navigation key allows you to move easily through menus. Figure 4 provides
a view of the Home screen display.
Status Icons
The main display provides constant graphical representations of battery capacity
and signal strength, as well as the real-time clock. The Q user guide provides more
information about icons shown on the main display.
060170o

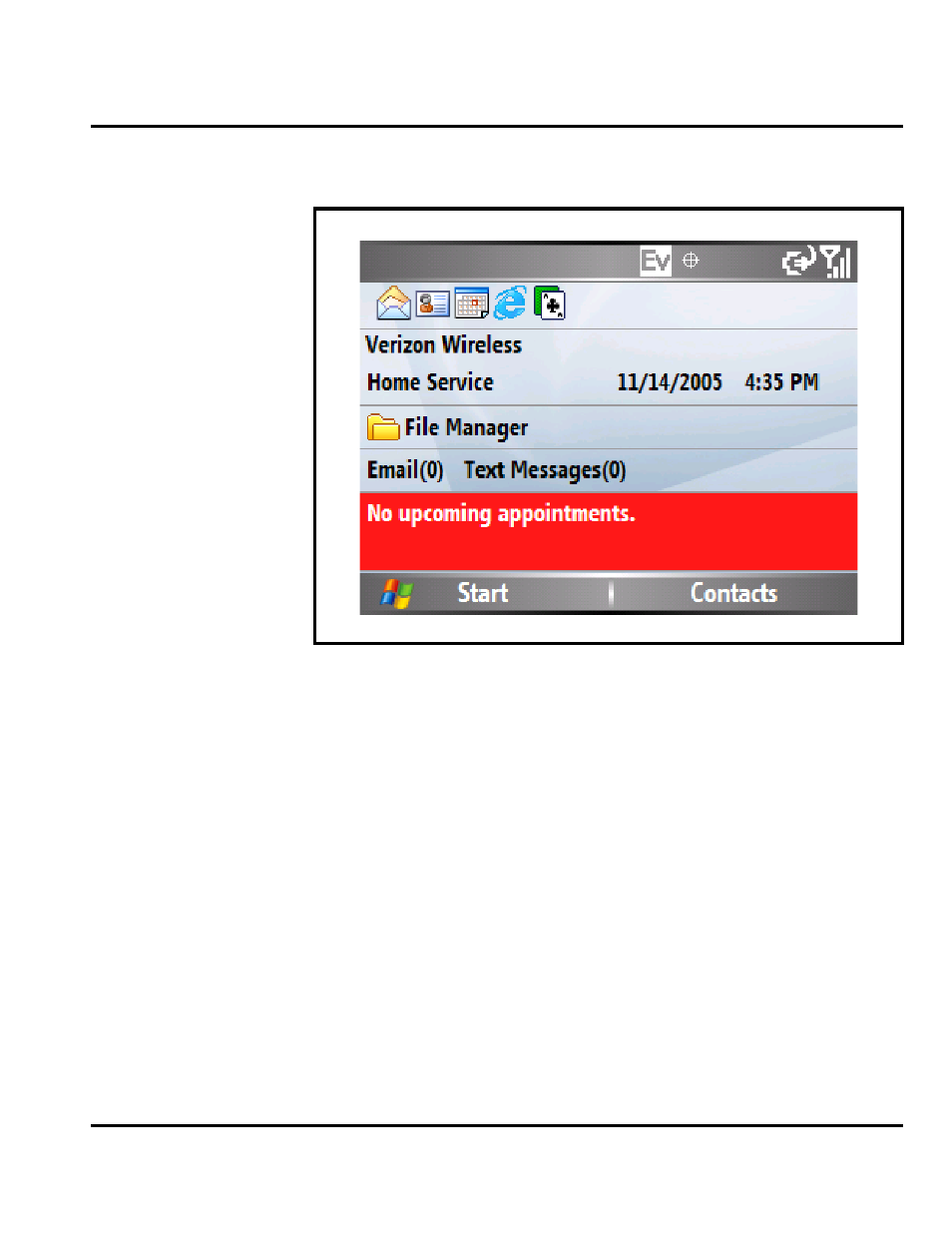

Figure 4. Home Screen Display
➧
Whether a phone displays all indicators depends on the programming and services
to which the user subscribes.
