USER GUIDE
6
8. Pre-installation guidelines
·
Switch off all computers
·
Place cables away from fluorescent lights, air conditioners, and machines that are
likely to generate electrical noise
·
Ensure that the maximum distance between each computer and the Smart CAT5,
does not exceed 10m/33ft
9. Connecting the Smart CAT5 system
Connect each computer to the Smart CAT5 system using the appropriate RICC and
CAT5 cables. Figure 4 illustrates the Smart CAT5 system connections with the
appropriate RICC connected to a PS/2, SUN and USB computer/server.
K
ey
bd
M
ou
se
10
0T
Vid
e
o
S
eri
al
A
P
ar
all
el
PCI 33Mx32b
PCI 33Mx32b
PCI 33Mx32b
PCI 33Mx32b
Se
ria
l B
NetServer tc2100
SCSI
Smart CAT5 Switch
SD
P110
PS/2 RICC
USB RICC
SUN RICC
CAT5 cable
Up to 10M / 33ft
CAT5 cables
POWER
100-250 VAC 50/60 Hz
1
2
3
4
5
6
7
8
10
11
12
13
14
15
16
9
COMPUTER
w
w
w
.m
in
ic
o
m
.c
o
m

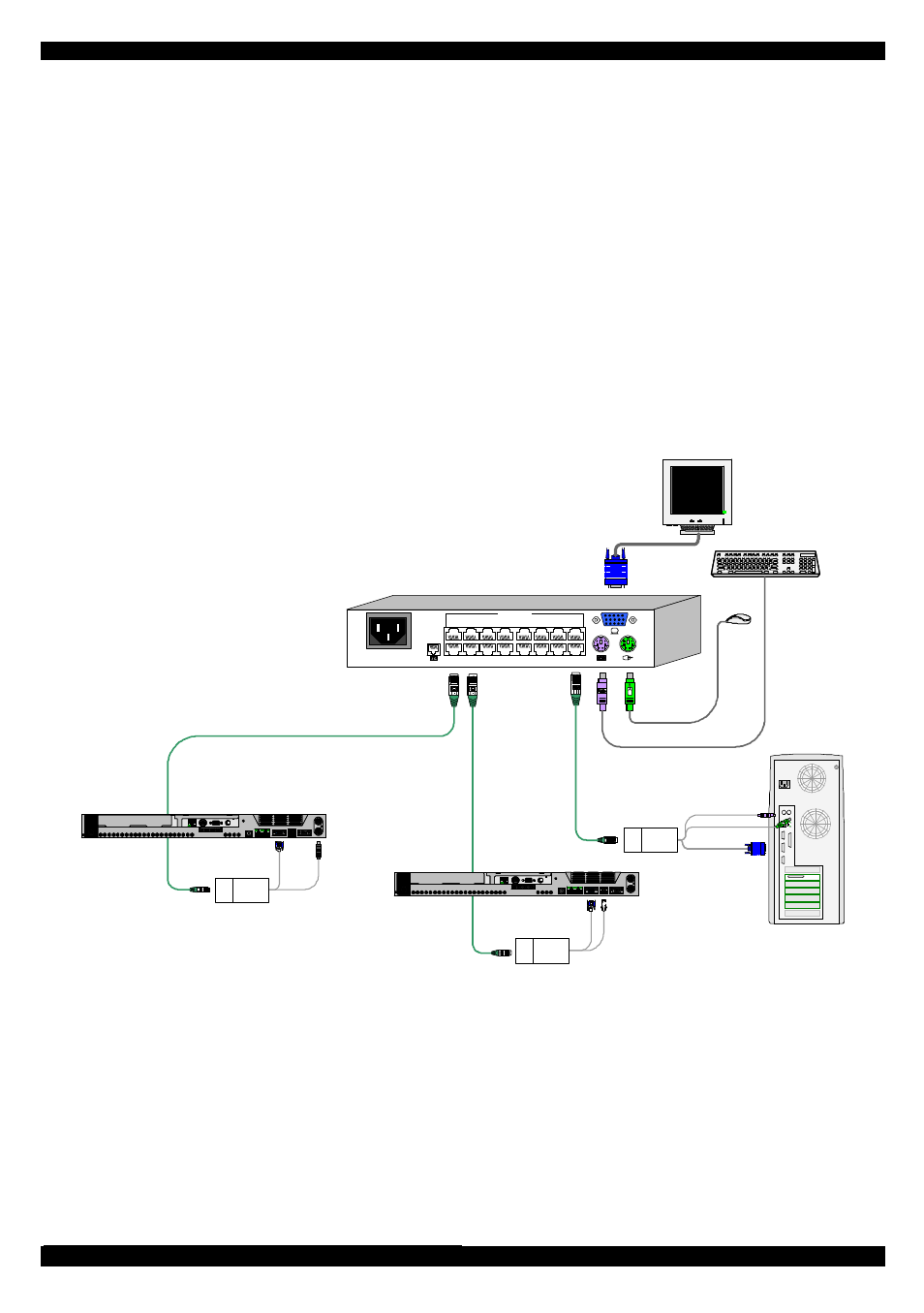

Figure 4 Smart CAT5 system connections
