USER GUIDE
26

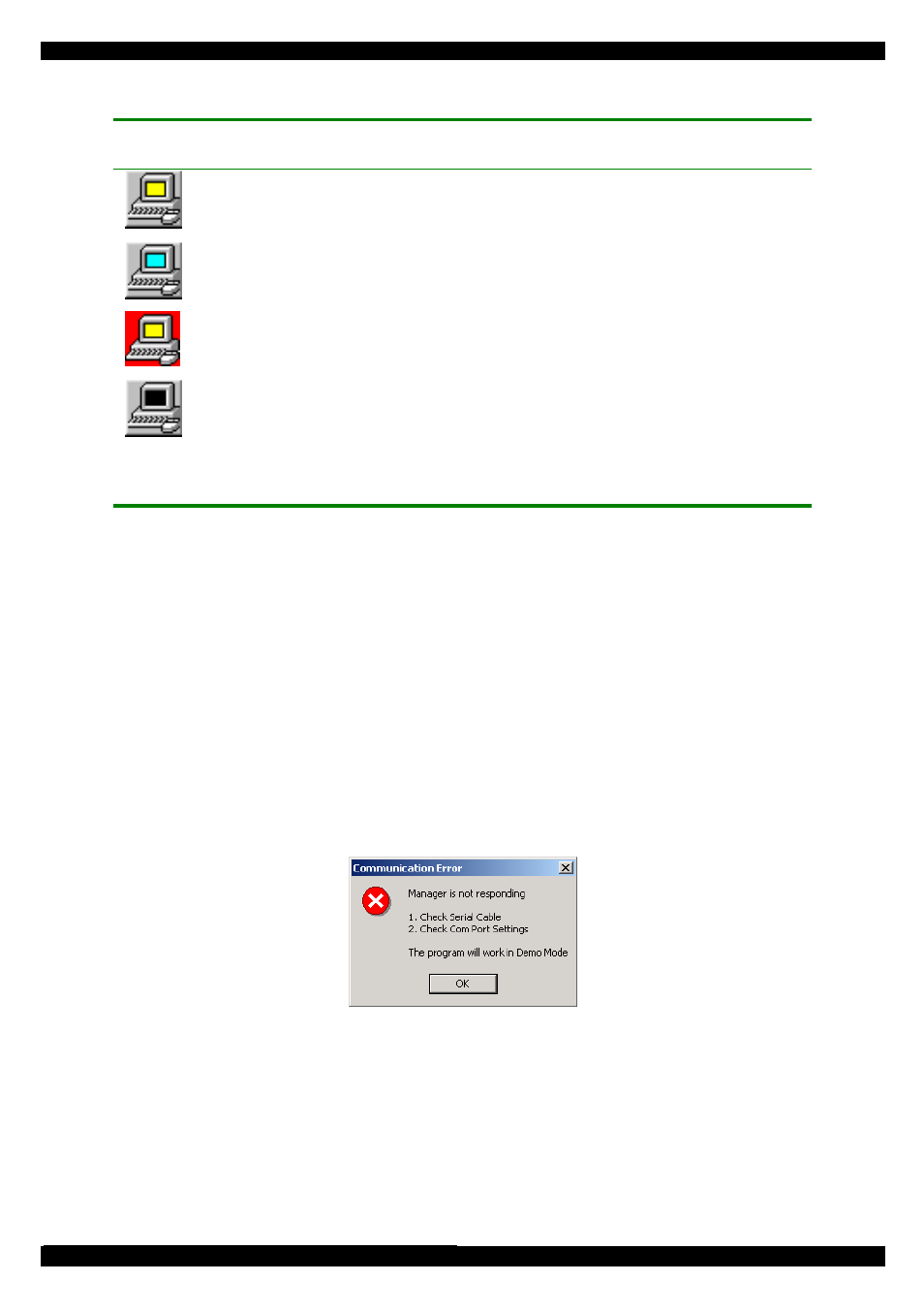

36. Computer icons
Icon Meaning
Computer is connected and switched on
Computer is switched off or unconnected
Computer that you are presently connected to
Connected and switched on computer with a Local
Workstation attached and presently being used locally.
After remaining idle for the Timeout period, it changes to
yellow.
When you first open the Control window the software automatically gets the status of
the system, including the security access settings.
37. Communication Error
If a Communication Error box appears when trying to scan the system – Figure 21.
Check that:
· The RS232 Serial cable is connected to the computer’s and Smart 16 IP
Manager’s serial ports.
· The Com Port settings in Options / Com Port are set correctly. After
changing the Com port exit and re-enter the Control software.
Figure 21 Communication Error
38. The View menu
From the View menu choose to display:
· All computers, or only active switched on computers.
· The Legend
· The toolbar
