19. Navigating the OSD
To navigate up and down use the Up and Down arrow keys.
To jump from one column to the next (when relevant) use the Tab key.
To exit the OSD or return to a previous window within the OSD press Esc.
20. Selecting a computer
To select a computer:
1. Navigate to the desired computer line.
2. Press Enter. The selected computer is accessed. An confirmation label appears
showing which computer is accessed.
Note! When the OSD is displayed you cannot select computers using the front panel
Select buttons or the keyboard hotkeys.
21. The OSD settings (F2)
Press F2. The OSD Settings window appears see Figure 12.

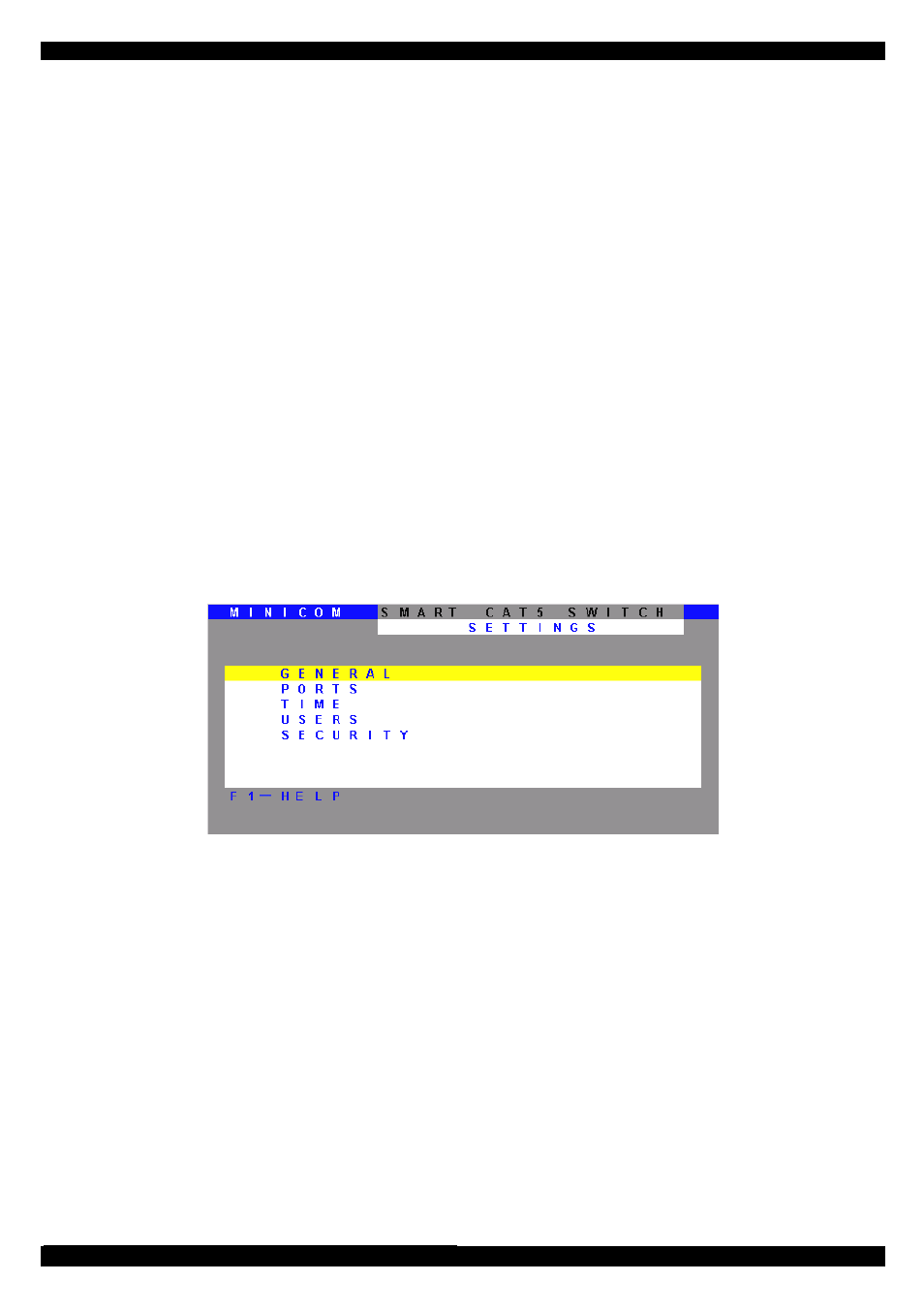

Figure 12 The Settings window
Note! When the OSD is password protected (explained below) only the Administrator
has access to the F2 settings window.
