6.Sub LCD: Lets you monitor the phone’s status and see who’s

calling without opening the phone.

7.Main LCD (display): Displays the phone’s main menu, features,

modes, etc.

8.Softkey (left): Lets you select the menu corresponding to the

bottom left line on the Main LCD.

9.Navigation Key: Lets you navigate quickly and easily through

the menu options. Press

or

of the Navigation key to

adjust the receiver volume during a call. It takes a shortcut to
the menu by pressing,

=Phone Book (Find Name),

=My Shortcut,

=Share Picture and =Downloads.

10. MENU/OK: Lets you see the phone’s menus and select menu

options.

11. Camera Key: Lets you see Pictures menu.

12. TALK: Lets you place a call, receive a call, answer Call Waiting,

use Three-Way Calling and Voice Dial.

13. Standard Charger Jack: Connect the Sprint Standardized

Charger (sold separately). Please ask a Sprint Store for this
charger.

14. Accessories Connector: Connect the charging accessories

such as Travel Charger (included), Desktop Charger or
PCS Wireless Connection Kit (sold separately).

15. Number Keys: Lets you enter numbers, letters and characters,

and navigate within menus. Press and hold 2-9 key to make a
Speed Dial call.

16. END/POWER: Turns the phone ON and OFF. Lets you

disconnect a call while talking or mute the ringer when
receiving incoming calls.

17. BACK: Allows you to clear characters from the screen, mute

the ringer when receiving incoming calls or display
Time/Date while the phone is in use.

18. Softkey (right): Lets you select the menu corresponding to the

bottom right line on the Main LCD.

Section 2: Understanding Your PCS Phone

2A: Your PCS Phone – The Basics

11

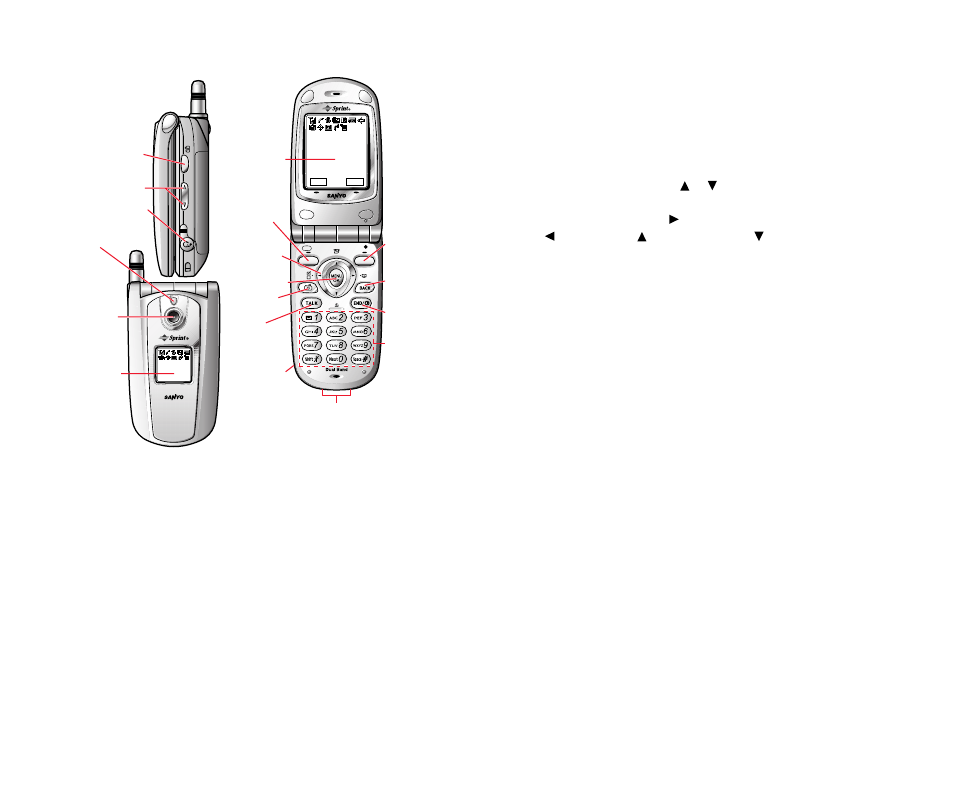

Front View of Phone

Your Phone’s Features

1.Side Camera Key: Press to display Camera mode. Lets you mute

the ringer when receiving incoming calls.

2.Volume Keys: Lets you adjust the receiver volume during a call,

or ringer volume in Standby mode. Lets you mute the ringer
when receiving incoming calls.

3.Headset Jack: Insert the plug of the headset (sold separately)

for hands-free listening.

4.LED (green/red light): Incoming Call = Green blinks/

Notification (Message, Voicemail, Alerts, etc.) = Red blinks.

5.Camera Lens: This built-in camera lens allows you to use auto

focus function.

Section 2: Understanding Your PCS Phone

10

2A: Your PCS Phone – The Basics


S p r i n t

J u l 2 1 , 0 3 ( M o n )

1 2 : 3 0 p m



Web

Memo


S p r i n t

1 2 : 3 0 p J u l 2 1

4. LED

(green/red light)

17. BACK

16. END/

POWER

18. Softkey

(right)

3. Headset Jack

1. Side Camera

Key

6. Sub LCD

5. Camera

Lens

2. Volume Keys

8. Softkey

(left)

12. TALK

9. Navigation

Key
10. MENU/OK
11. Camera

Key

7. Main LCD

15. Number

Keys

14. Accessories

Connector

13. Standard

Charger Jack
