Auxiliary reader
The auxiliary reader must not be further than 50 meters from
the DG-600H. Also this reader should be nearer than 60
centimeters, to avoid disturbance. The suggested wire gauge
is #22~26 AWG.
auxiliary Split of units for DG-600H and
reader in ranging up to 50 M bring out the friendly system
device for low cost but high security with anti-tampering as
well as convenience and reliability.
DG-600H
Stand-alone Proximity Reader

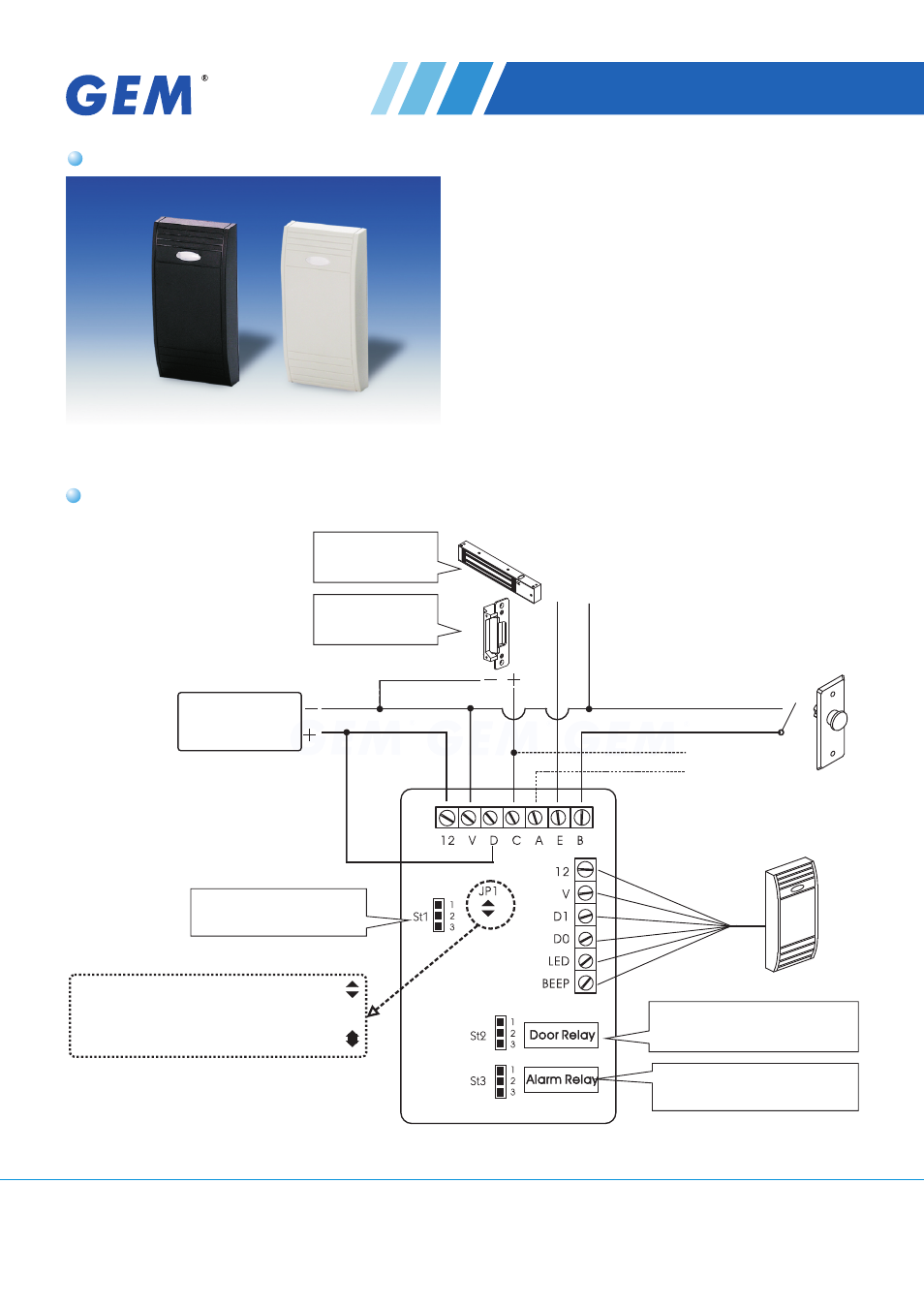

Connecting Diagram
Fail-Safe Lock
St 2 connect to 1-2
Contact door switch or the
electric lock signal output
Push Button
External relay start
the warning system
Auxiliary Reader
(Wiegand Format)
Connect to 1-2;C and D contact is N.C.
Connect to 2-3; for N.O.
Connect to 1-2;C and A contact is N.C.
Connect to 2-3; for N.O.
Fail-Secure Lock
St 2 connect to 2-3
*Linear supply recommended
Power supply
(9~16Vdc)
Insert 2-3 position to reset
GEMPROX-H
125 KHz,Wiegand 26~37-bit
format output
Size:88(L) X 44(W)X16(D)mm
DG-600H Jp1 leads to all Wiegand format
DG-600H Jp1 short-circuit to Wiegand 26 bits format
