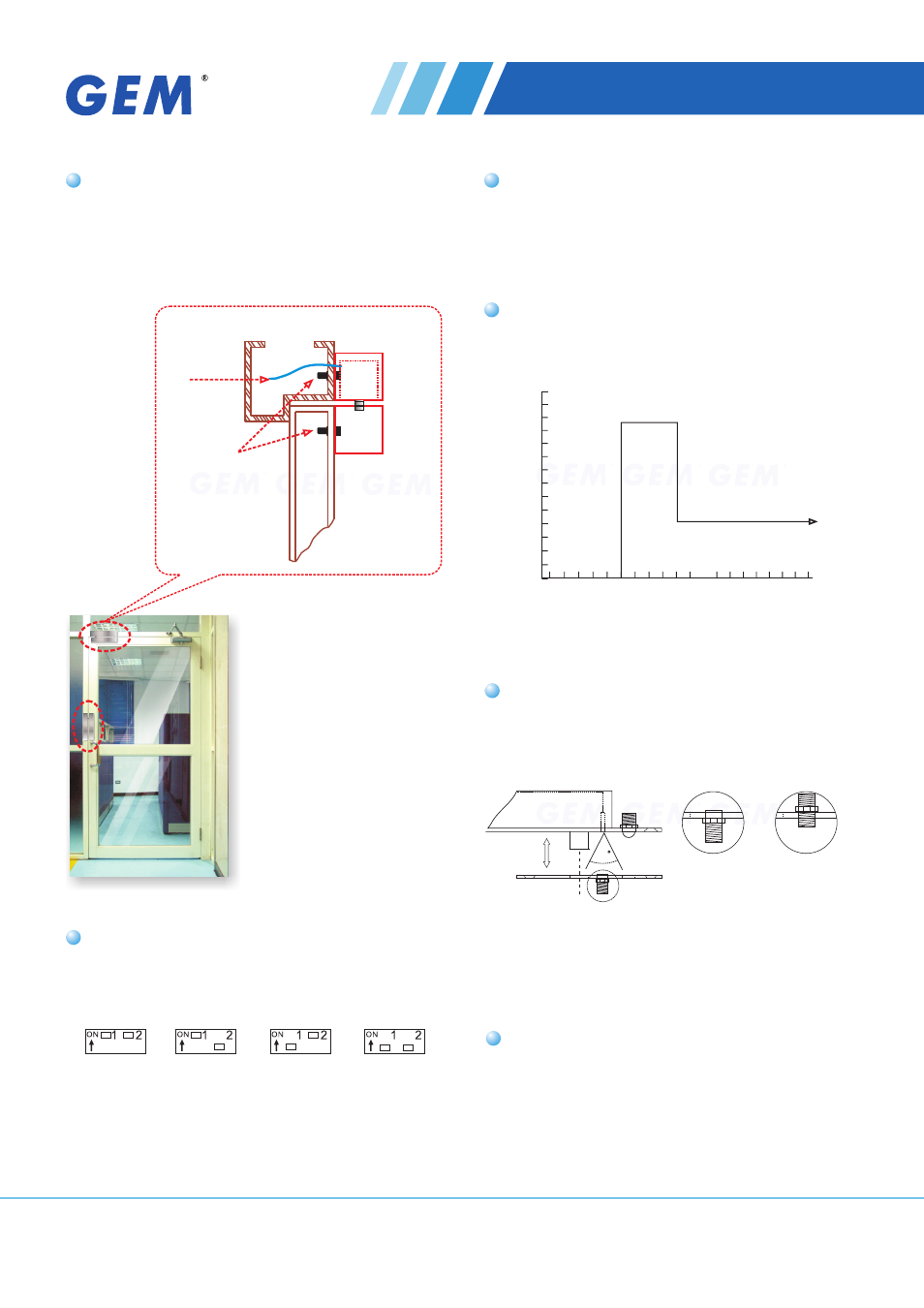

GEM's electric dropbolts can be installed either horizontally
at the top or bottom of the door frame or vertically on the side
of the door frame.
0 seconds 3 seconds 6 seconds 9 seconds
Relock time setting
The door position sensor can detect within a range of
5mm. If the door gap is too wide, a magnet within the strike
plate of the door can be adjusted to improve detection
accuracy.
45 5 mm maxi
Reed
The product is warranted against defects in material and
workmanship while used in normal service for a period of 1
year from the date of sale to the original customer. The GEM
policy is one of continual development and improvement;
therefore GEM reserves the right to change specifications
without notice.
Warranty
Horizontal or vertical installation Long life solenoids
Adjustable Sensor
The special designed solenoid aims for strength and long
life. The solenoid is guaranteed 500,000 times of operations.
Pull in
Holding
C
u
rr
e
n
t
D
ra
w
(
m
A
)
Time (seconds)
Wiring cable
Header
Door
Blind Nut
EB-400
Energy Saving Design
After the dropbolt is completely locked, the current draw
changes from 0.9A to 0.3A to prolong its life.
Adjustable Time Delay of 0,3,6,9 seconds with 2 way DIP
switch. (Default Value: 0 sec.)
Relock Time Delay
GIANNI INDUSTRIES, INC.
EB400 Surface Mount
Stainless Housing Electric Dropbolt
