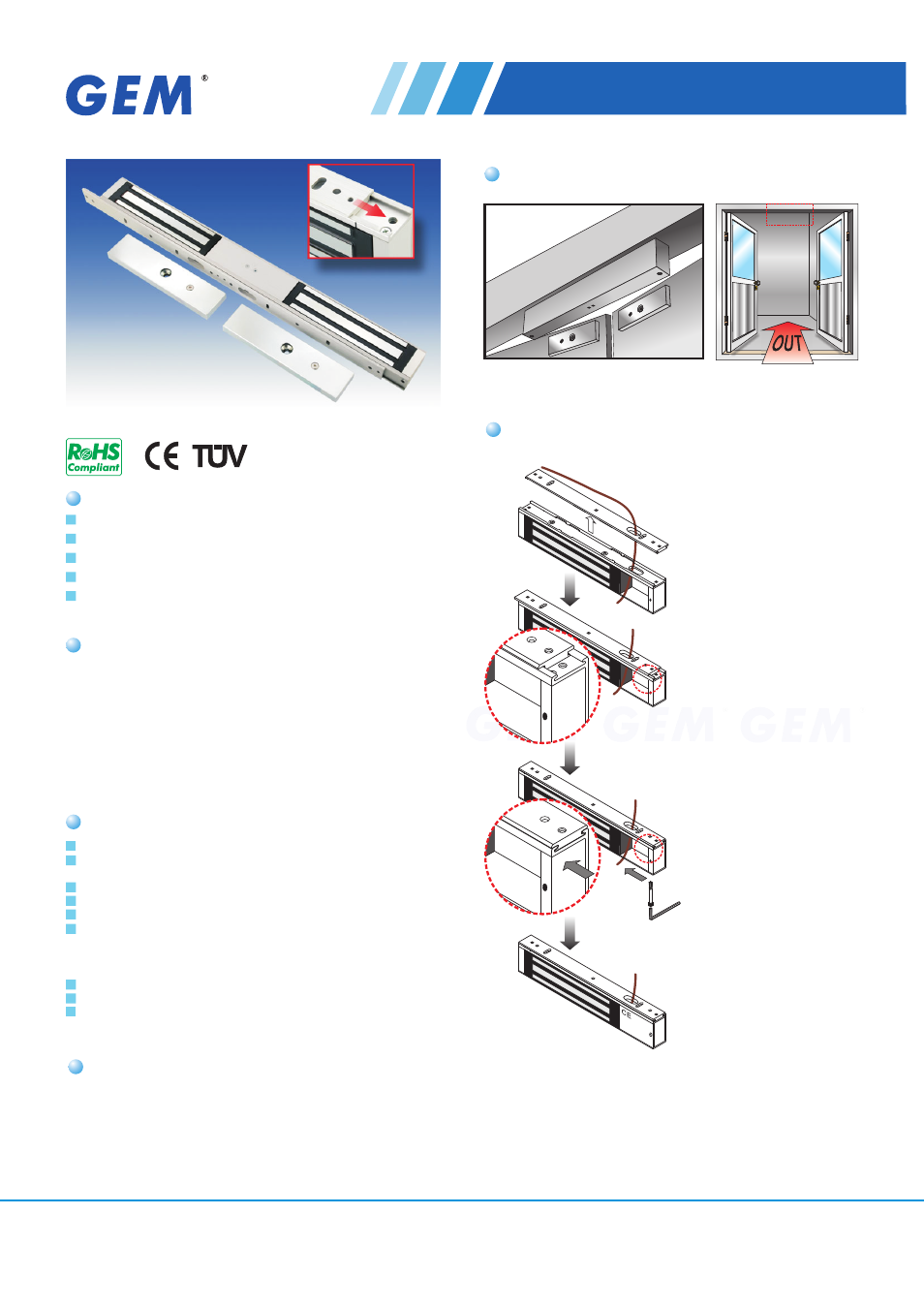

Gianni Industries EM-NH2350 - Manual

Statement
Features
Specification
EM-NH2350 is designed for surface mount on
double out-swing doors. Its slide-in mounting
plate simplifies the process of installation and
firmly secures the magnet. EM-NH2350M comes
with bond sensor output and EM-NH350ML with
LED indicating locked and unlocked status.
Special Mounting Plate design
EM-NH2350
Double Midi Electromagnetic Lock
Holding force up to 800 lbs x2
Aluminum anodized casing.
Mounting plate & housing for easy installation.
Dual voltage 12 or 24 VDC (selectable).
Anti-Residual magnetism function.
Operating Voltage: 12/24 VDC
Current Draw: 250mA/24VDCx2
500mA/12VDC x 2
Operating Temperature -10~ 55ºC (14~131ºF)
Humidity: 0~95% non-condensing.
Holding Force: Up to 800 lbsx2 (363Kgx2)
Dimensions:
Magnet:(L) 530, (W) 52, (D) 29 mm
Armature Plate:(L) 185, (W) 45, (D) 14 mm
Mounting Plate:(L)530, (W) 29, (D) 6.5 mm
Finishes for magnet and armature plate: Zinc Plated
Epoxy Potting Compound: E87252 (S), UL94V-0
Weight (Approx.): 6.0 Kg
Patent:
ZL 2006 2 0122522.X
Nr. 20 2006 012 052.1
M308308
GB 06 1 6099.8
06 07229 (France)
GIANNI INDUSTRIES, INC.
Cable
1 . P a s s t h e p o w e r c a b l e
through the mounting plate
and the hole of the maglock.
4.Use the Allen wrench and
fixing screws to tighten the
mounting plate and maglock.
2.Place the mounting plate
above the maglock. Leave a
length of 1 cm from either end
of the maglock.
3.Slide the mounting plate
into the maglocks. Fit the
maglock from the bottom to
the mounting plate.
Regular Installation
The product is warranted against defects in material and
workmanship while used in normal service for a period of 5
years from the date of sale to the original client. The GEM
policy is one of continual development and improvement;
therefore GEM reserves the right to change specifications
without notice.
Warranty
No. 13, Zhongxing Rd., Tucheng Dist., New Taipei
City 236,Taiwan (R.O.C.)
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: [email protected]
Website: gianni.tw Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-EM-NH2350 Ver. I Published on 2012.09.18
