-48-
Model G0694 (Mfg. Since 10/09)
READ ELECTRICAL SAFETY
ON PAGE 47!
Hot
Hot
6-15 Plug
(As Recommended)
220V
1-PH
G
VS DIAL
CONTROL PANEL
(SHOWN FROM BEHIND)
12 11
24 23
DOOR
LIMIT
SWITCH
MOTOR
3HP 220V 3-PH
SPEED DISPLAY
BOARD
GND
1 2 3
E AC IN
300W 100Ω
Delta VFD022E21A
Inverter
INPUT: 1-PH 200-240V
50/60 Hz 24.0A
OUTPUT: 3-PH 0-240V
11A 4.2KVA
2.2 kW/3HP
FREQUENCY RANGE:
0.1–600Hz
READY RUN FAULT
VFD-E
RESISTOR
R/L1 S/L2 T/L3
T/T1 V/T2 W/T3 +B1 B2 –
MI1
MI2
MI3
MI4
MI5
MI6
DCM 24V
ACM AC1
10V AVS
3 1
2 3
3
4
4
2 1
ON BUTTON
TACHOMETER
SENSOR
JUNCTION
BLOCK
FWD/REV
SWITCH STOP
BUTTON

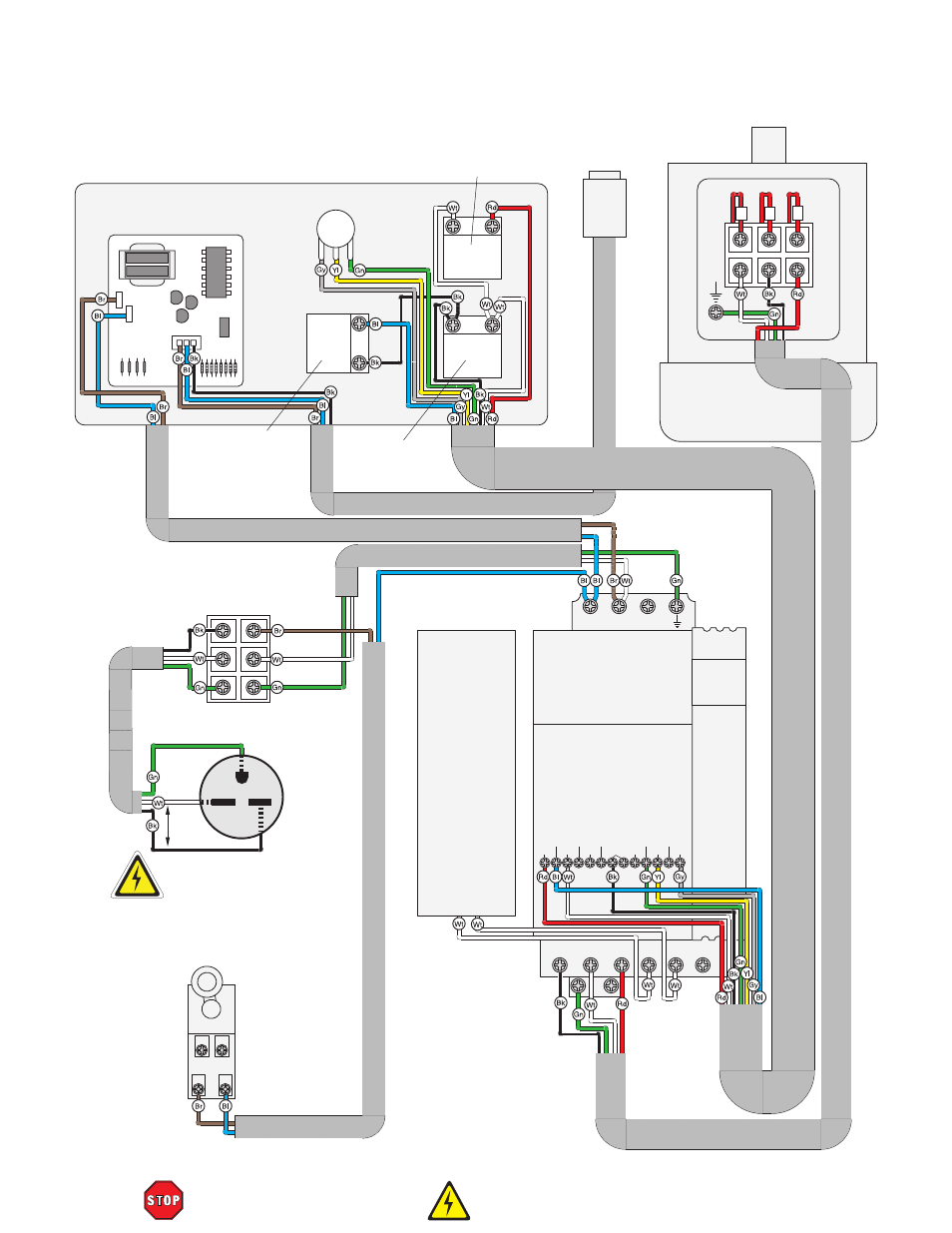

Wiring Diagram
