Model G0694 (Mfg. Since 10/09)
Tailstock
the tailstock is equipped with a cam-action
clamping system to secure it to the lathe bed.
When the lever is tightened, a locking plate lifts
up underneath the bed and clamps the tailstock
in place.
To position and lock the tailstock in position:
1. Loosen the lock lever and move the tailstock
to the desired position along the bed
(
figure 12).
2. re-engage the lock lever to secure the
tailstock to the bed.
Note: The hex nut underneath the tailstock
may require occasional tightening to restore
proper clamping pressure and lever position.
When adjusted properly, the lever should be
at the horizontal position when the tailstock is
fully clamped to the bed.
Always operate the lathe with the tailstock
firmly locked to the bed. Otherwise, the
workpiece can be ejected causing serious
personal injury.
2. re-engage the tool rest holder lock lever to
secure the tool rest assembly in position.
Note: The hex nut underneath the tool rest
holder (
Figure 13) may require occasional
tightening to restore proper clamping pres-
sure and lever position. When adjusted prop-
erly, the lever should be at the horizontal
position when the tailstock is fully clamped to
the bed.
Inboard Tool Rest
the tool rest holder is equipped with a cam-
action clamping system to secure it to the lathe
bed. When the tool rest holder lock lever is tight-
ened, a locking plate lifts up and secures the tool
rest assembly to the bed. the tool rest can also
be positioned and locked at a specific angle or
height.
Positioning Inboard Tool Rest on
Bedway
1. Loosen the tool rest holder lock lever and
move the tool rest assembly to the desired
position on the lathe bed (
figure 13).
Always operate the lathe with the tool rest
holder firmly locked to the bed. Otherwise,
the workpiece can be ejected causing seri-
ous personal injury.

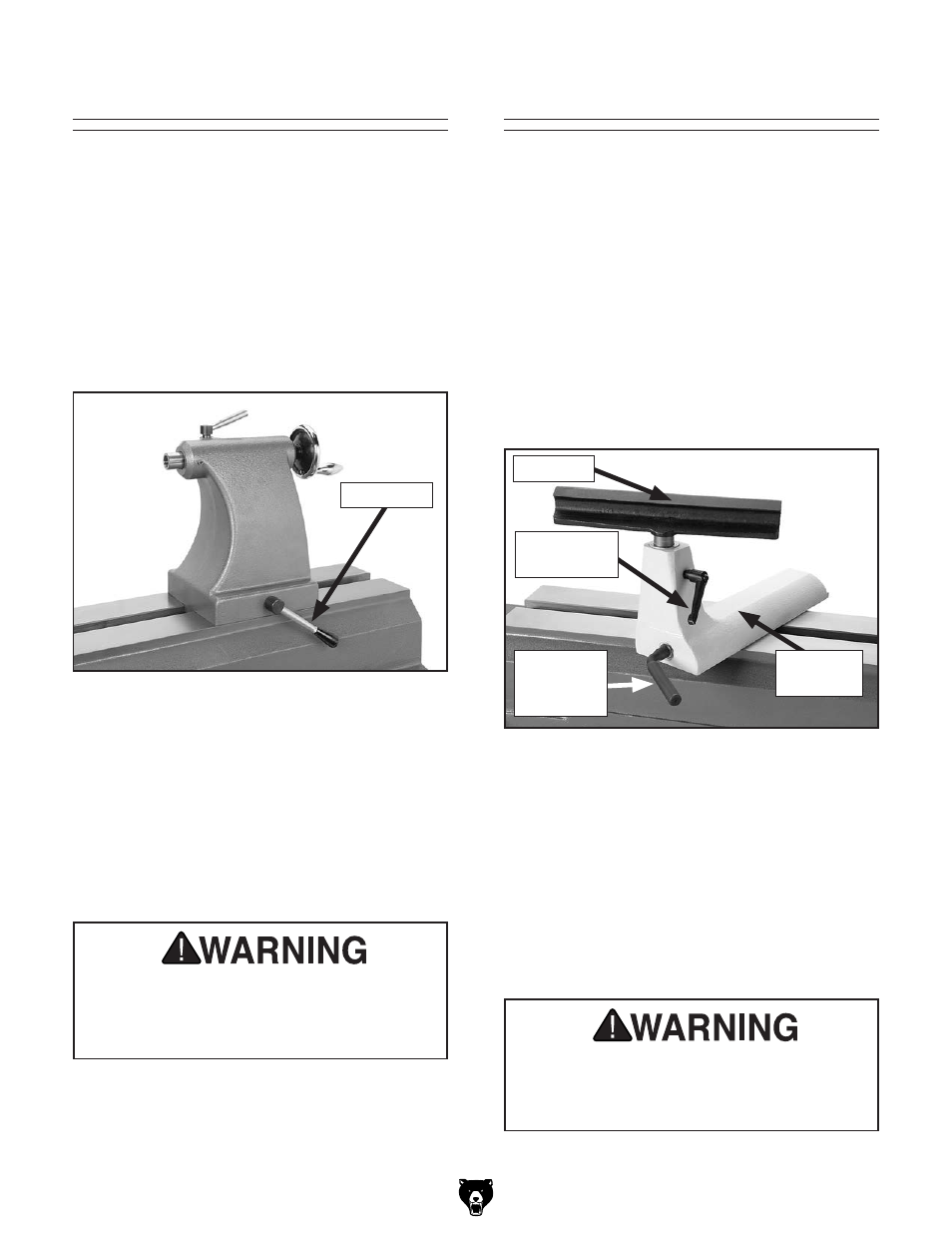

figure 12. tailstock lock lever.
Lock Lever
figure 13. tool rest controls.
tool rest
tool rest
Lock handle
tool rest
holder
tool rest
holder
Lock Lever
