Model G0694 (Mfg. Since 10/09)
-45-

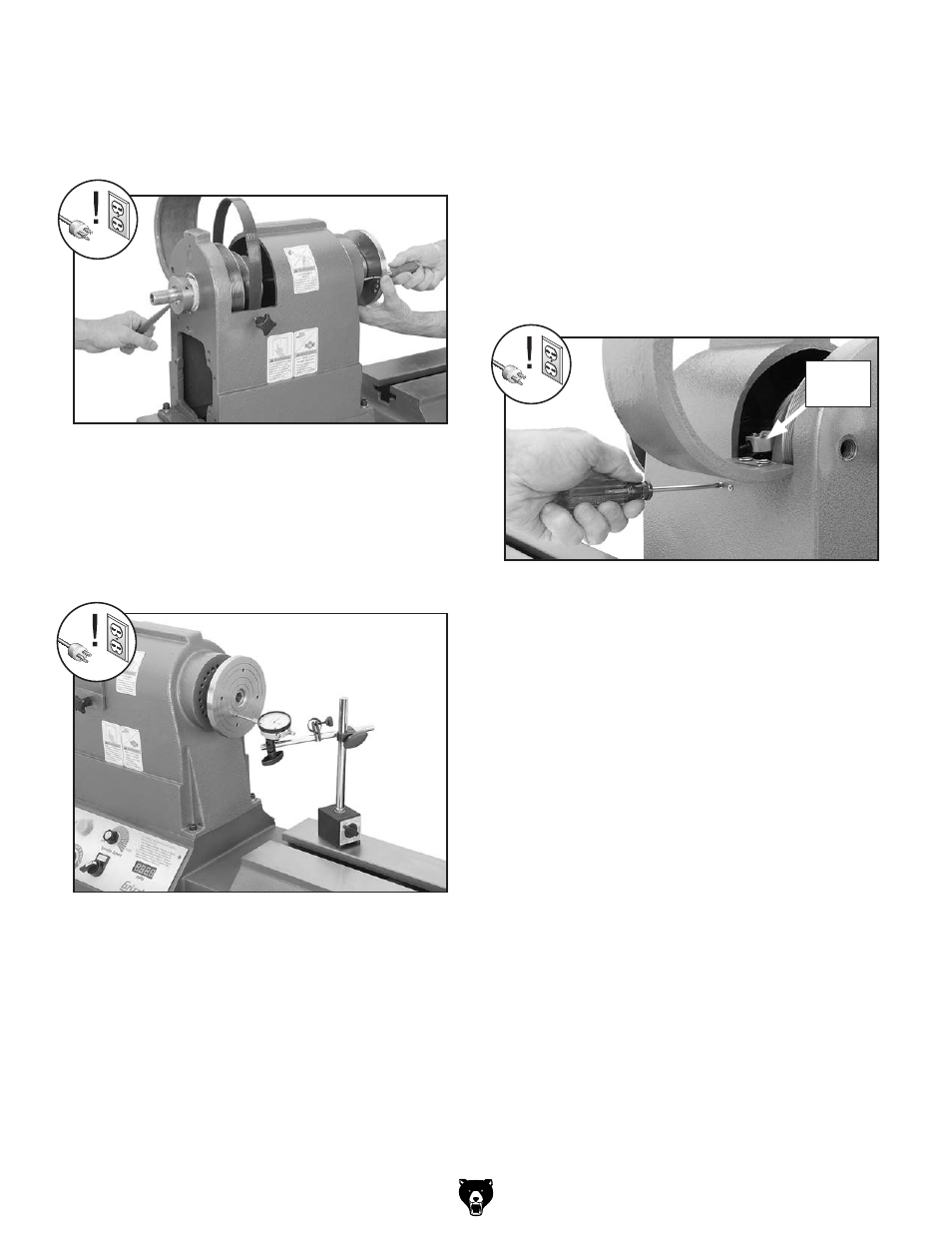

figure 67. seating outboard roller bearing.
19. While an assistant holds the metal rod through
the faceplate to prevent the spindle from turn-
ing in the headstock, tighten the spanner nut
until it is snug and seat the outboard bearing,
as shown in
figure 67.
21. Loosen or tighten the spanner nut until end
play is 0.001"–0.002", tighten the spanner nut
an additional
1 ⁄
8
turn to preload the bearings.
figure 68. Using a dial indicator to measure end
play.
20. set up a dial indicator, as shown in figure
68, and while holding the spanner nut with
a leather glove, push and pull it toward the
tailstock to determine the amount of end play.
the correct amount of end play is 0.001"–
0.002".
22. put on a pair of leather gloves and remove
the spanner nut.
23. reinstall the speed sensor with the screws
you removed earlier (see figure 69). Make
sure the cord does not touch the pulley
sheaves or hang down near them.
Tip: To avoid entangling the speed sensor
cord in the pulleys, tie it onto the inboard
side of the cross support bar inside the head-
stock.
24. replace the cover on the outboard end of
the spindle and secure it with the spindle lock
mechanism you removed in
Step 5.
25. thread the spanner nut fully onto the spindle,
then secure it with the two set screws.
26. thread the mounting hub adapter onto the
spindle and tighten the three set screws.
27. align the key in the adapter with the keyway
in the outboard mounting hub.
figure 69. reinstalling speed sensor.
speed
sensor
