Model G0694 (Mfg. Since 10/09)
-25-

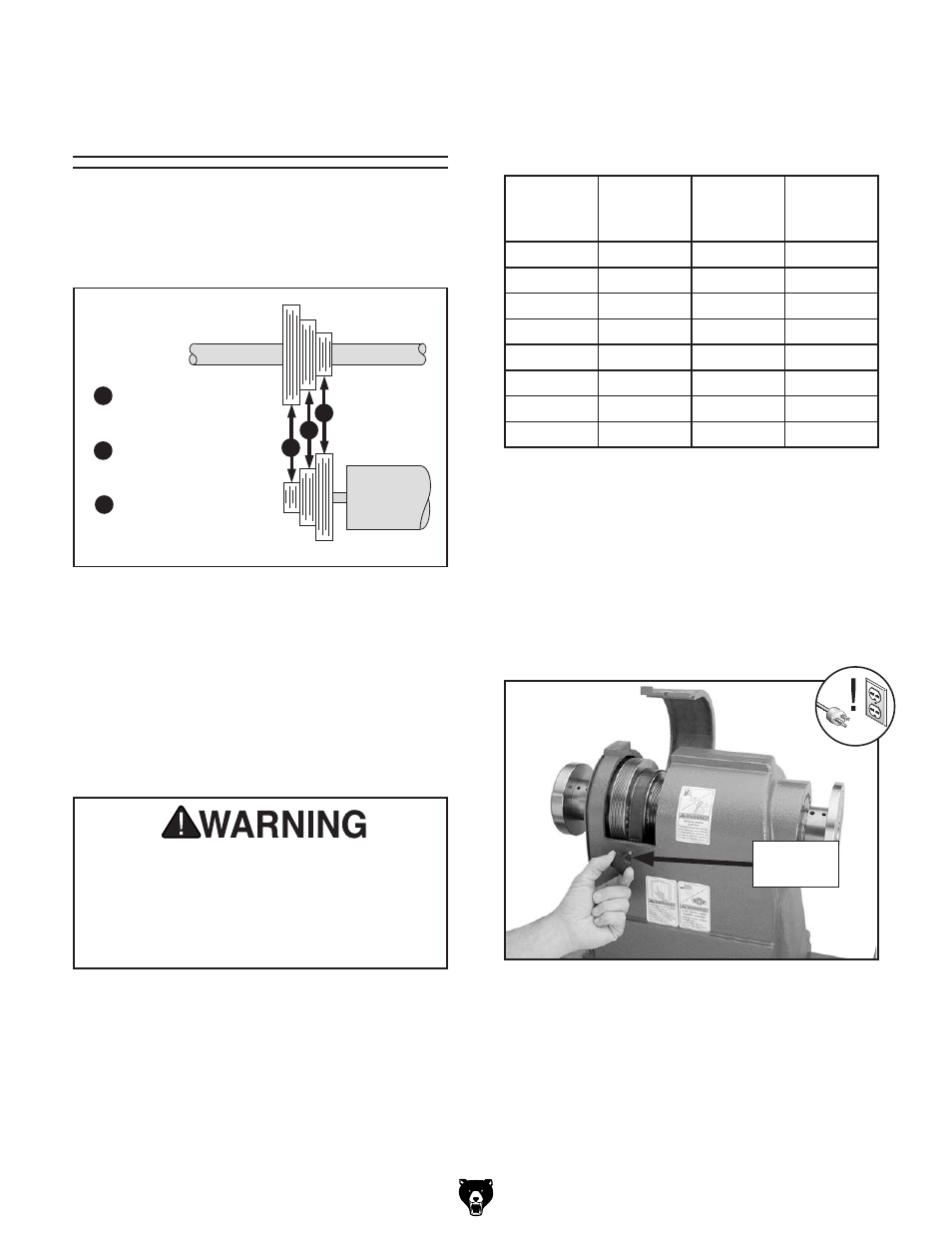

Adjusting Spindle
Speeds
Diameter
of Work-
piece
Roughing
RPM
General
cutting
RPM
finishing
RPM
Under 2" 1520 3000 3000
2–4" 760 1600 2480
4–6" 510 1080 1650
6–8" 380 810 1240
8–10" 300 650 1000
10–12" 255 540 830
12–14" 220 460 710
14–16" 190 400 620
figure 22. Model g0694 typical spindle speed
recommendations.
Spindle
Motor
C
B
A
A = Low Range
100-1000 RPM
B = Mid Range
1000-2000 RPM
C = High Range
2000-3000 RPM
figure 21. speed ranges for each belt position.
To change speed ranges:
1. disConneCt Lathe FroM poWer!
2. remove the threaded knob and open
the upper belt access panel, as shown in
figure 23.
the Model g0694 has three speed ranges for
maximum turning options. these ranges are
selected by changing belt positions on the motor
and spindle pulleys (
figure 21).
When turning a workpiece where a lot of mate-
rial must be removed and a rough finish does not
matter, low range, which has more torque, is best.
When turning a workpiece where a clean finish is
required, and only light cuts are made, high range
is best. Mid range is a compromise between
the two ranges. Use the speed dial to adjust the
spindle speed within each range.
refer to the chart in figure 22 help choosing the
correct spindle speed. note that both the diameter
of the workpiece and the type of cutting deter-
mines the spindle speed.
figure 23. Belt access panel removed.
threaded
Knob
Always choose the correct spindle speed
for your operation. Using the wrong speed
may lead to the workpiece breaking loose
or being thrown from the lathe at a high rate
of speed, causing fatal or severe impact
injuries.
