g0669X precision 10" x 54" Vs Milling Machine

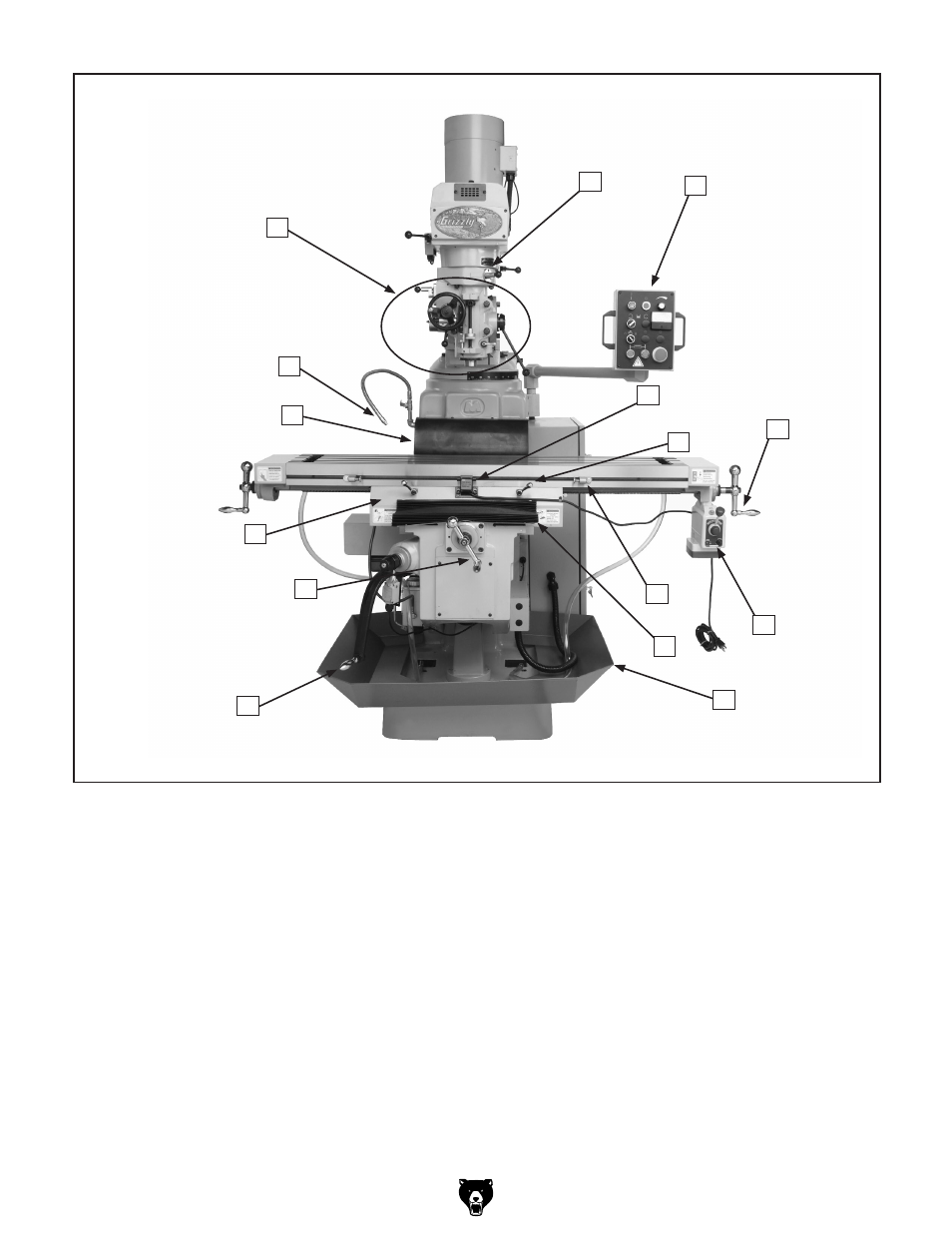

figure 2. Front identification.
B
a
C
e
M
A. Quill auto-downfeed Controls (see Page 31
for more detail)
b. Quill auto-downfeed selector
C. Control panel (see Page 24 for more detail)
D. Longitudinal power Feed Limit switch
E. table Lock
f. Longitudinal Ball handle
G. Longitudinal power Feed
H. Longitudinal power Feed Limit stop
I. Front Way Cover
J. splash pan
K. Vertical Crank
L. Cross Feed (y-axis) Ball handle
M. saddle
N. rear Way Cover
O. Coolant nozzle
d
F
g
h
i
J
L
K
o
n
