7. slip the coarse downfeed handle onto the
shaft located on the right side of the head, as
shown in
figure 16.
Note: If necessary, use the set screw on
the hub of the handle to adjust the ball bear-
ing pressure until the handle can be easily
installed and removed.

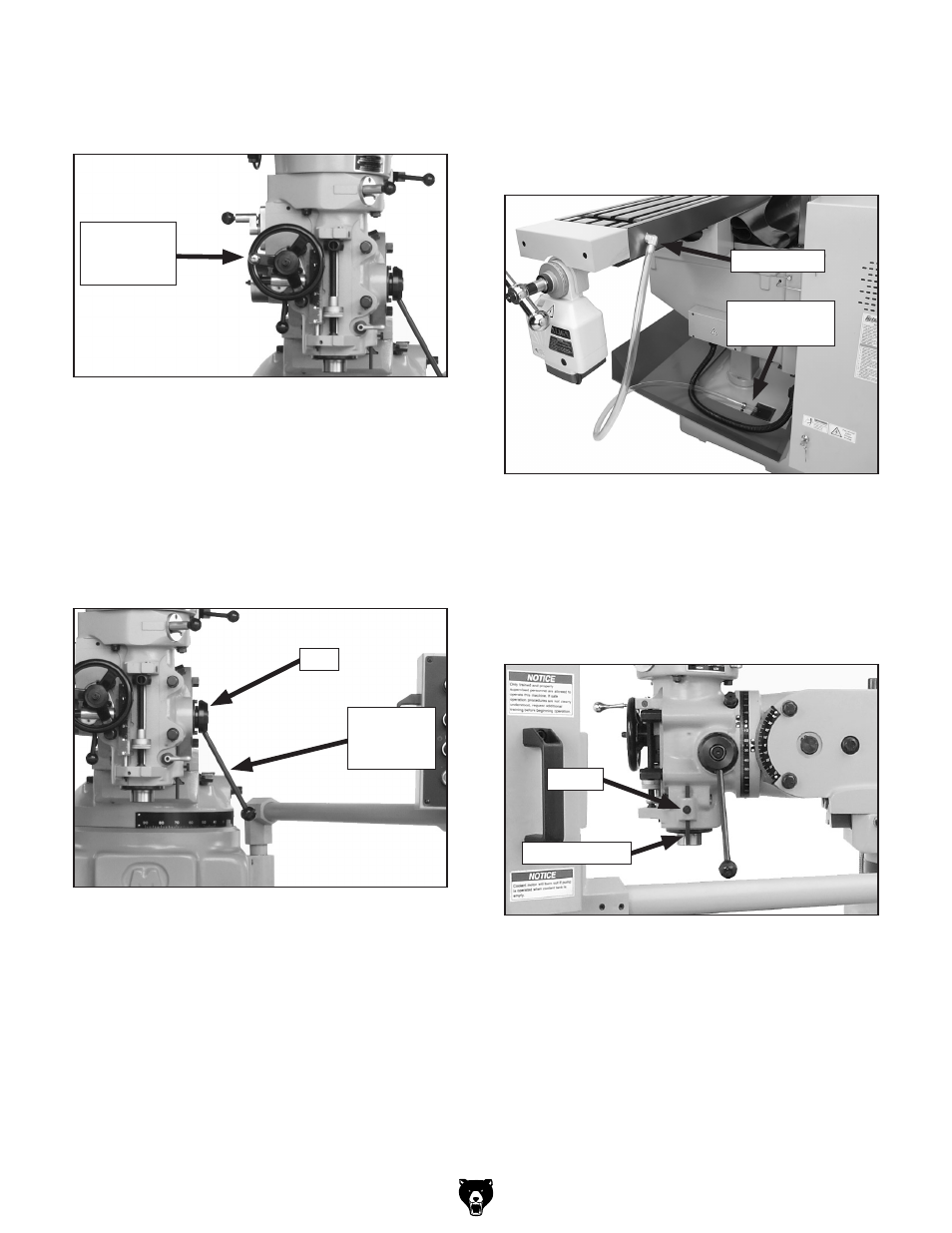

figure 16. Coarse downfeed handle installed.
Coarse
downfeed
handle
hub
6. slide the fine downfeed handwheel onto the
shaft on the front of the head, as shown in
figure 15.
figure 15. Fine downfeed handle installed.
Fine
downfeed
handwheel
8. attach each coolant return hose to the pipe
elbow on the rear of the table, then secure
the other end through the clamp on the
base and over the drain screen, as shown in
figure 17.
9. Loosen the screw on the right side of the
head shown in figure 18, then, aligning the
flat of the indicator rod with that of the hole,
slide the rod into the hole from the bottom
and retighten the screw.
figure 18. indicator rod installed (right side of
head shown).
screw
indicator rod
figure 17. Coolant return hose installed (right
side shown).
pipe elbow
Clamp &
drain screen
