www.gateway.com
55

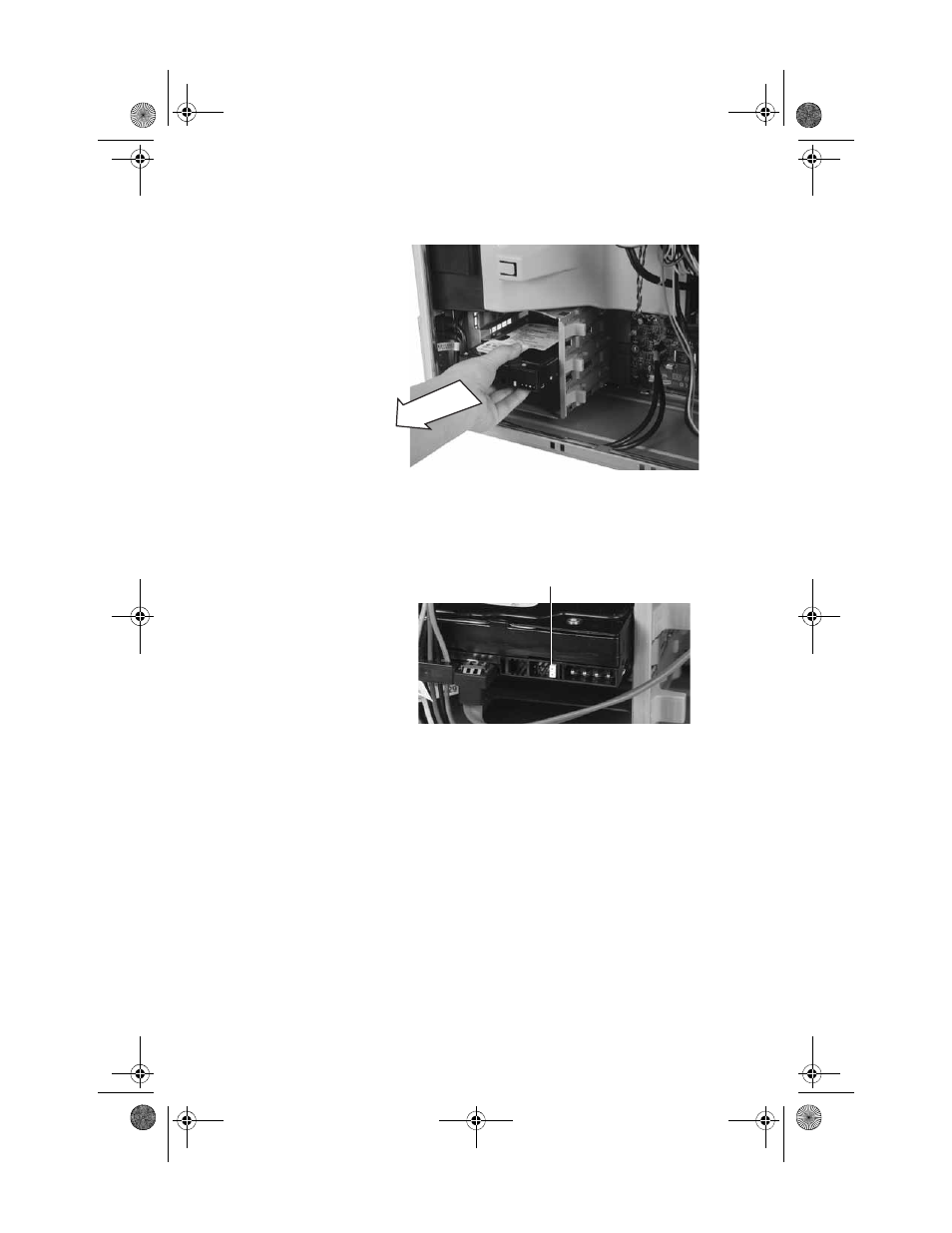

4 Remove the hard drive by sliding it out of the drive bay.
5 Note any jumper settings on the old drive and set the
jumper on the new drive to be the same. If you are
installing a new drive, follow the manufacturer’s
instructions.
6 Slide the new drive into the drive bay, then secure it in
the drive bay by sliding the drive release latch in toward
the computer.
7 If you are replacing a drive, reconnect the drive cables
using your notes from
Step 3 . If you are installing a new
drive, follow the manufacturer’s instructions for
connecting it to the system board.
8 Replace the side panel by following the instructions in
“Replacing the side panel” on page 44 .
9 Reconnect all external cables and the power cord.
10 Turn on your computer.
11 If you installed a new drive, format and partition the
drive according to the manufacturer’s instructions
(available on the manufacturer’s Web site).
Jumper
