Gateway E1400 User Manual
Page 65

58
System Components
To replace the system board:
1
Remove or disconnect the following devices from the system board:
Processor. (See “Replacing the processor” on page 61 for
instructions.)
DIMMs. (See “Adding or replacing memory” on page 45 for
instructions.)
AGP graphics card. (See “Replacing the AGP card” on page 51.)
Devices from the old system board that are not included with the
new board, such as processor retention brackets.
2

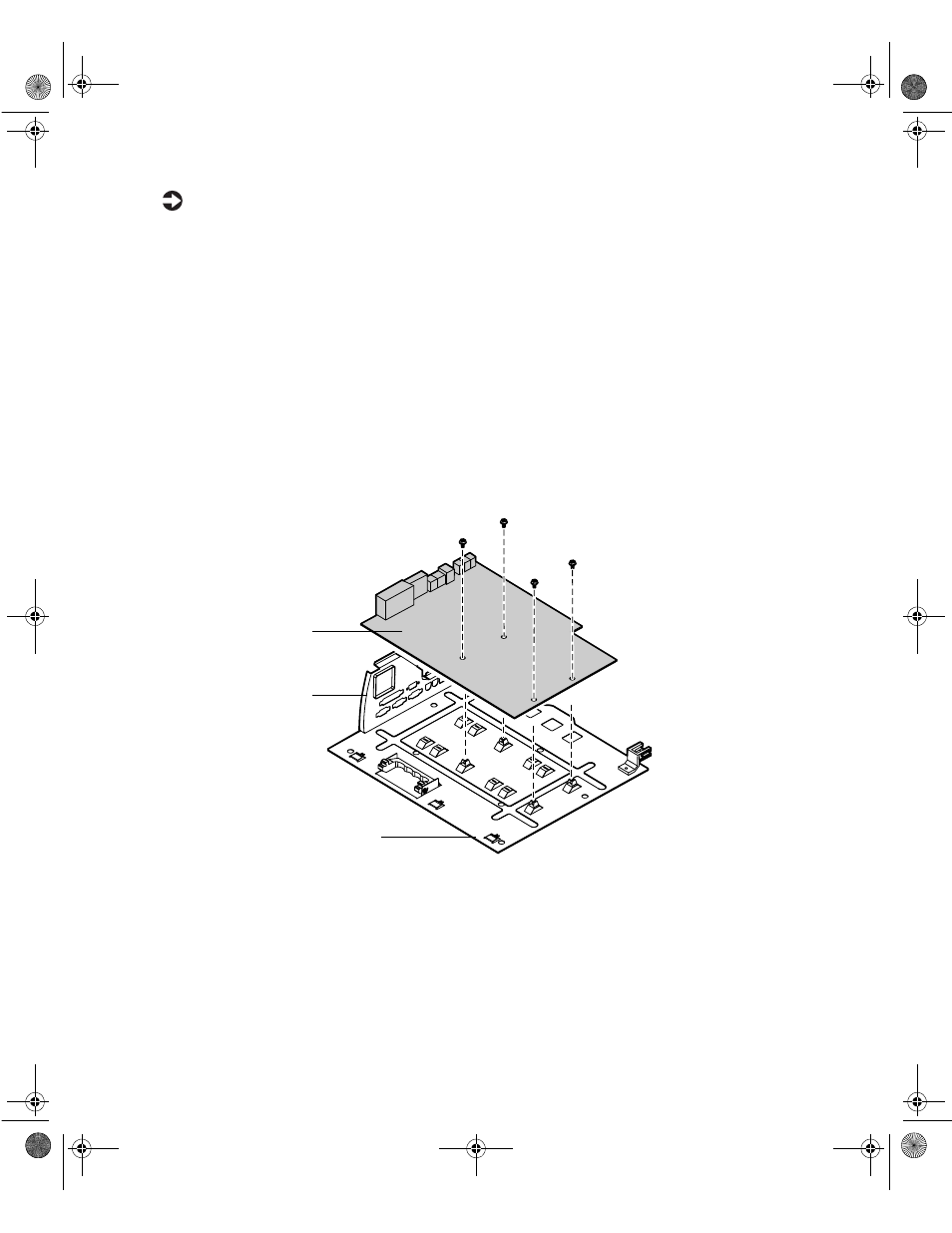

Remove the four screws that attach the system board to the system board
tray assembly, then lift out the system board.
3
Remove the new system board from its packing material.
4
Install the new board onto the system board tray assembly, carefully
aligning the ports and connectors with the holes on the rear I/O shield.
5
Reinstall the four screws to secure the board to the tray assembly.
System
board
System board
tray assembly
Rear I/O
shield
05960.book Page 58 Monday, February 21, 2000 2:47 PM
