Gianni Industries GL-1200F User Manual

Statement specification

background image

Statement

Specification

Fire Exposure and Hose Stream Tests were conducted in
accordance with the standard, "Positive Pressure Fire Tests of
Door Assemblies," ANSI / UL 10B and 10C, uniform building
code standard UBC 7-2 (1997).

GL-1200F is designed for face mount on

sliding doors or gate. The maglock can be
configured to mount on in-swing doors with
o p t i o n a l Z - s h a p e d b r a c k e t s . I t a c h i e v e s
waterproof rating IPX 7 and

R comes with magnetic

bond sensor indicating locked and unlocked
status.

is suitable for outdoor

applications. GL1200

Operating Voltage: Single Voltage: 12 or 24VDC
Dual Voltage: 12/24VDC
Current Draw:
Single Voltage: 460mA/12VDC, 250mA/24VDC
Dual Voltage: 500mA/12VDC, 250mA/24VDC
(at temperature 20ºC)
Bond sensor output (GL1200R): 0.5A/20VDC
Operating Temperature: -10~55ºC (14~131ºF)
Humidity: 0~95% non-condensing.
Holding Force: Up to 1200 lbs (545 Kg)
Dimensions:
Magnet:(L) 202, (W) 62, (D) 40 mm
Armature Plate:(L) 185, (W) 62, (D) 16 mm
Special Finishes for magnet and armature plate: Zinc plated
Epoxy Potting Compound: E87252 (S), UL94V-0
Net Weight: 4.8 Kg

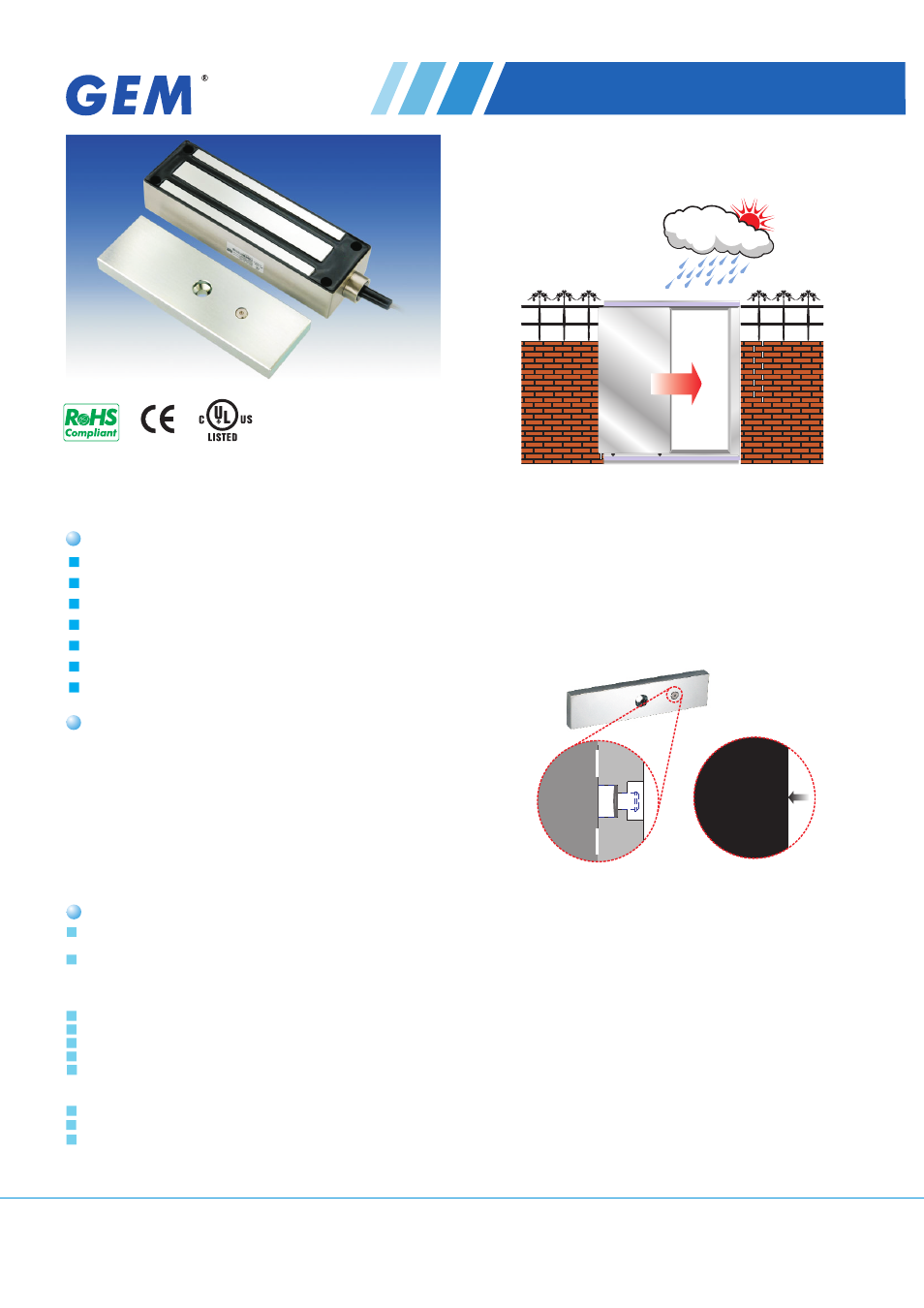

GL-1200F Waterproof Electromagnetic Lock
(Face Mount)

GIANNI INDUSTRIES, INC.

Low maintenance with high reliability
Stainless steel casing

High reliability
Dual voltage 12 or 24 VDC (selectable)
MOV provides spike and surge protection
Anti-Residual magnetism function
Holding
force up to 1200lbs

Features

This series of Waterproof Magnetic Lock is

epoxy

potting compound. Also, GEM Waterproof Series Magnetic
Locks have been proved to withstand water with the test
procedures of IPX7, IPX8 by a trusted third party. Therefore
users need not worry that the lock will rust or spark, if the lock
is in outdoor applications and installed in confined space
where inflammable gases are stored.

protected by

Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-GL-1200F Ver. F Published on 2011.08.30

Magnet

Armature

(Power Off)

Magnet

Armature

(Power On)

Anti-residual statement
Our electromagnet locks feature Anti-Residual Magnetism
(ARM) which ensures the door can be opened without any
resistance from left over magnetism imparted to the armature
plate

No. 13, Zhongxing Rd., Tucheng Dist., New Taipei
City 236,Taiwan (R.O.C.)
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: [email protected]
Website: gianni.tw
