III. Program Instruction:

Enter Program Mode:

1. Enter the master code twice (Factory master is 「12345」)

→2 beeps and the Yellow LED will light up.
→ you are now in the "programming mode".

Note:

After 60 seconds if you have not entered any codes or data, the system will

automatically exit from the programming mode. After 6 wrong attempts at the master
code the lockout facility will operate.

Exiting from the program mode:

1. Press「#」 to exit from the programming mode.
2.

Note:

After 60 seconds if you have not entered any codes or data, the system will

automatically exit from the programming mode. After 6 wrong attempts at the master
code the lockout facility will operate.

To Enter a User Code：

Enter the Programming mode

1. Enter the slot position code 「＊01~＊10」 →?????（user code 5 digit）→（beep）

→enrolled→ Press # to exit from the programming mode, or program other operating.

Note:

The codes"00000","12345" or master code are not be used for PIN code.

To Program Relocking Timer（relay）：

Enter the Programming mode

A. Press「＊20」Followed by the number of seconds the relay should open→「05」

=5 seconds（01 ~99 = seconds）→（beep）→enrolled → Press 「#」 to exit from
the programming mode, or program other operating.

B. Enter「00」Sets the relay to latching mode.

(Correct code entered opens the relay,

and the relay stays open until the correct code is entered again).

To Delete a User Code：

Enter the Programming mode→ Press the slot position code of your choice to delete

(example "06") →Press「＊06」→「00000」→（beep）→delete→Press「#」 to exit
from the programming mode, or programming other operating.

To Change the Master codes:

Enter the Programming mode, Enter「＊00」Followed by the new 5 digit master code→
（

beep）→enrolled→Enter 「#」 to exit from the programming mode, or program other

operating.

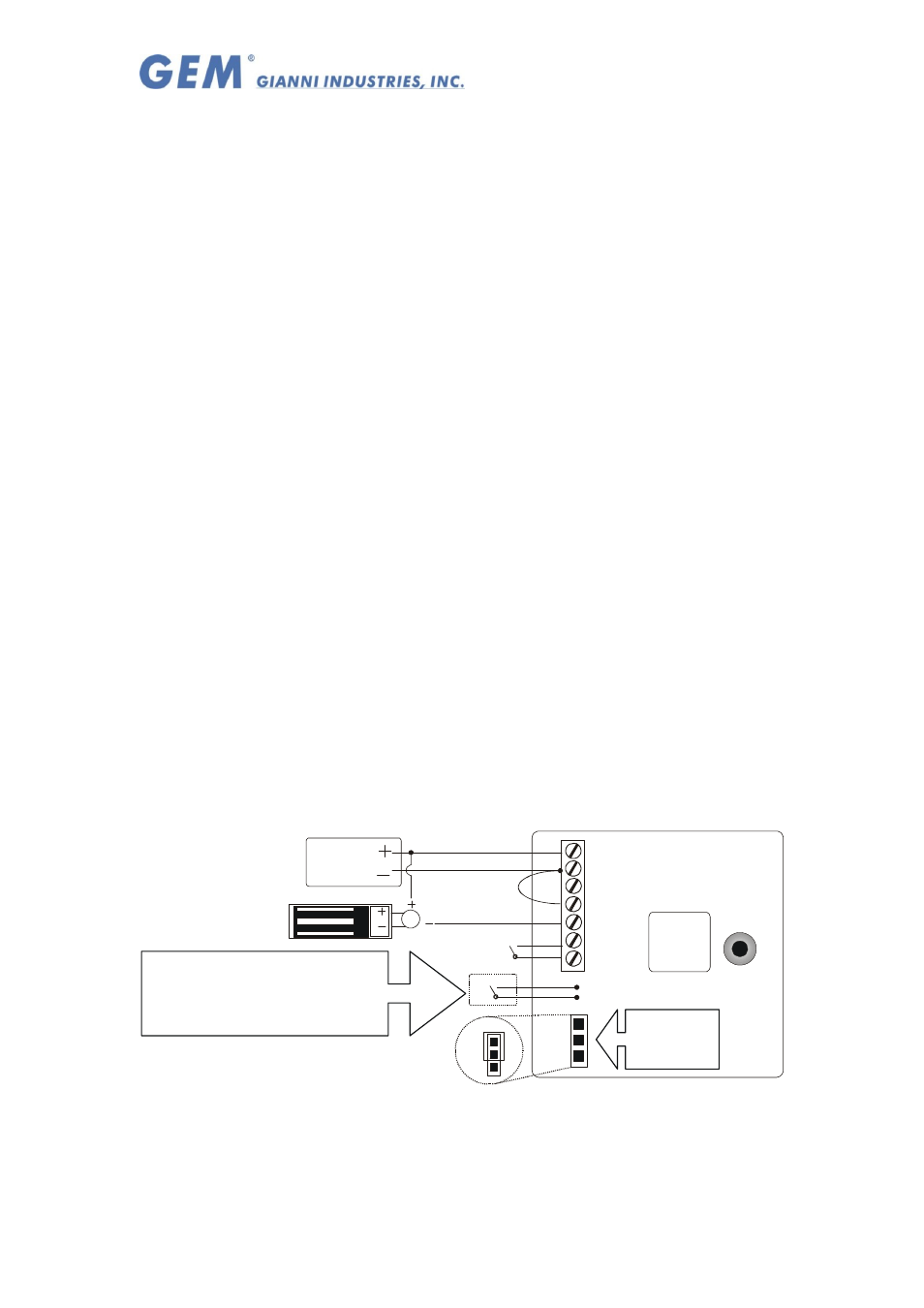

IV. Wiring diagram:

2
3

B(White)

P(White)

N.C.(Blue)

Com.(Green)

N.O.(Yellow)

Power in(Red)

1
2
3

12Vdc
Power
Supply

Push Button

Relay

Buzzer

Master Code

resetting to

Factory Code

"12345"

FAIL-SAFE LOCKING

DEVICE

Varistor

Contact door reed switch

(Pink)

This reed switch is used

to reset the re-locking time

to 0 second when the door is moved.

(Using N.O. contact in case of door closed,

changeover to N.C. When door is moved)
