Gianni Industries LZ-NH2500N - Manual

LZ-NH2500N Bracket
In-swing doors
Copyright 2010 Gianni industries, inc. All rights reserved.
DM-CA-LZ-NH2500N Ver. C Published on 2011.09.08
Unit:mm
Application of the Electromagnet:
EM-NH2500 Series
2 1
6 7 Finish
4
5
3
Power
19
0
63
.5
8
63
.5
6
63
.5
63
.5
19
0
19
0
63
.5
8
63
.5
6
63
.5
63
.5
19
0
48
53
3
75

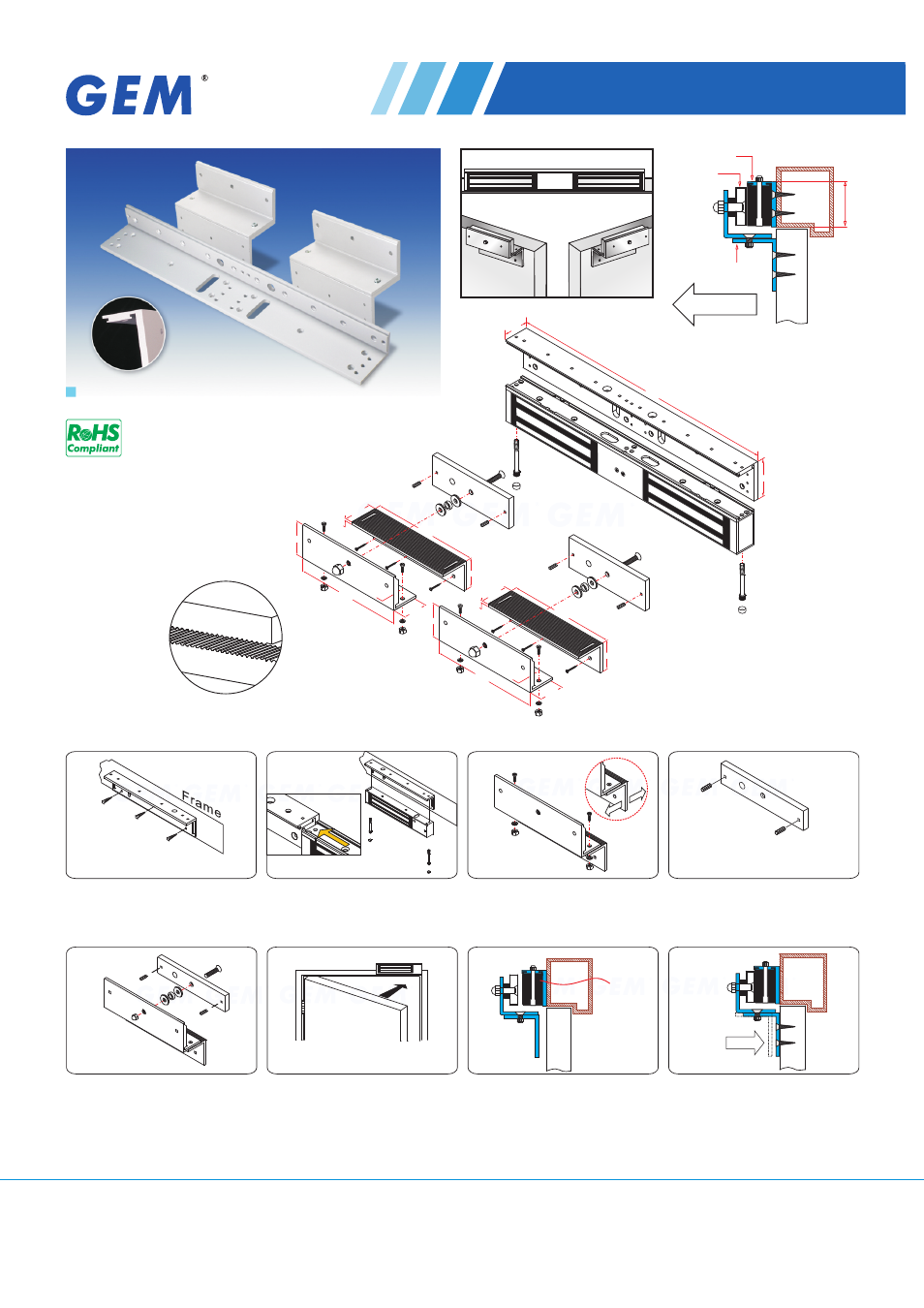

Installation of LZ bracket on In-swing Doors
Install L bracket on the door frame.
M a k e s u r e t h e d o o r m a y b e
opened/closed. Fasten the electromagnet to L
bracket with fixing screws. Assemble Z bracket. Make sure it is
still loose. I n s e r t t h e g u i d e p i n s i n t o t h e
armature plate.
Fasten the armature plate to Z
bracket. Insert the rubber washer
between them. Close the door and turn on the
power. L e t t h e a r m a t u r e p l a t e a n d
electromagnet bond together. Press
Z bracket to the door leaf. Fasten Z bracket to the door leaf.
GIANNI INDUSTRIES, INC.
M
in
im
a
l:
7
5
m
m
L-Bracket
Z-Bracket
In-swing
Frame
Door
Armature
Plate
