g9249 12" x 37" Belt drive gap Bed lathe
-81-

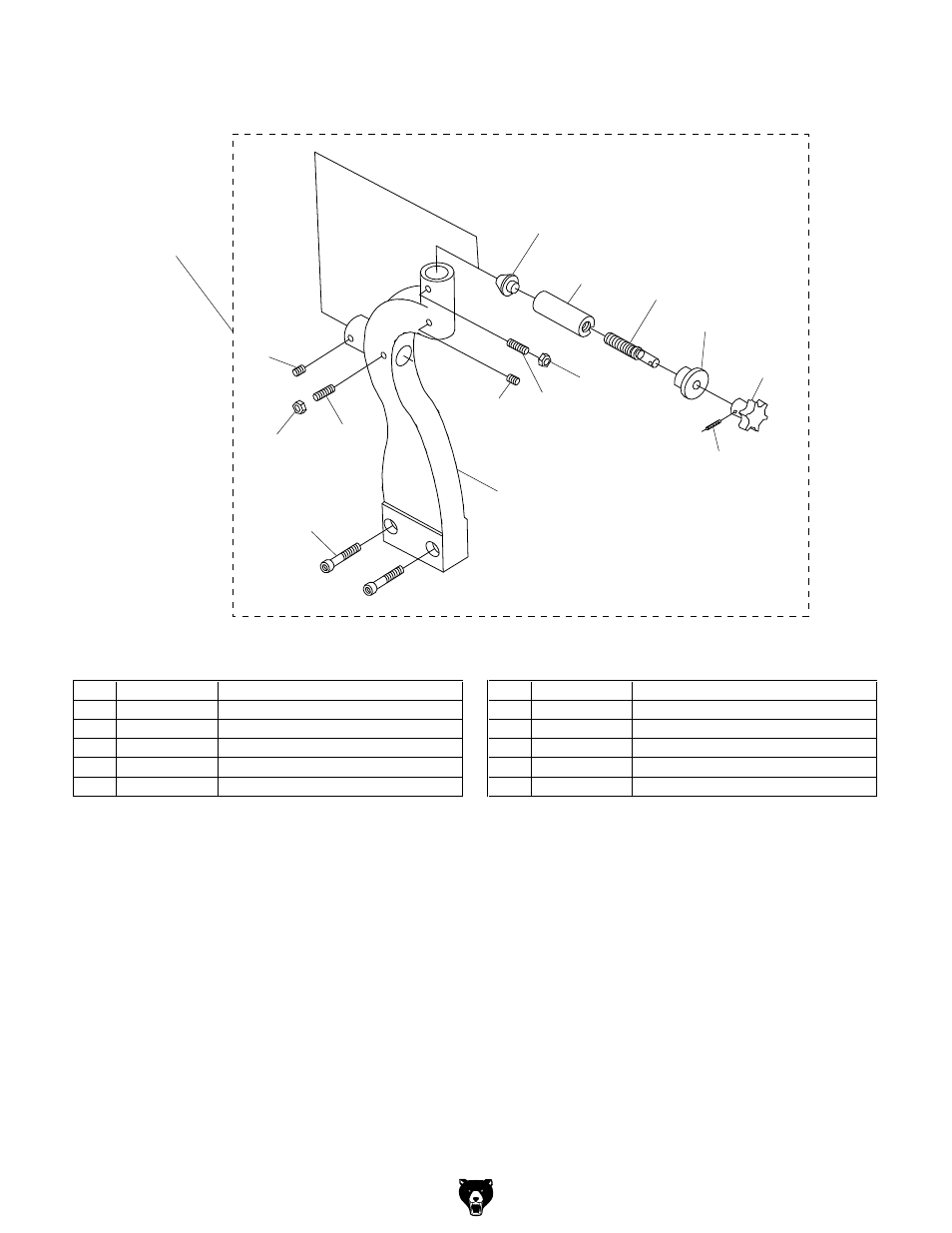

follow Rest
*""
*"#
*"$
*"%
*"&
*"'
*"(
*") *"*
*"+
*#"
*##
*")
*"*
*"+
REF PART # DESCRIPTION REF PART # DESCRIPTION
800 P9249800 COMPLETE FOLLOW REST 806 P9249806 CLAMPING BLOCK
801 P9249801 STAR HANDLE M8-1.25 X 30 807 PSS03M SET SCREW M6-1 X 8
802 PRP02M ROLL PIN 3 X 16 808 PSS11M SET SCREW M6-1 X 16
803 P9249803 COLLAR 809 PN01M HEX NUT M6-1
804 P9249704 ADJUSTING SCREW M8 X 40 810 PSB40M CAP SCREW M8-1.25 X 35
805 P9249805 BUSHING 811 P9249811 FOLLOW REST BASE
