-12-

g9249 12" x 37" Belt drive gap Bed lathe

Inventory

the following is a description of the main compo-
nents shipped with your machine. lay the compo-
nents out to inventory them.

Note: If you can't find an item on this list, check
the mounting location on the machine or examine
the packaging materials carefully. Occasionally
we pre-install certain components for shipping
purposes.

Box 1 Inventory: (figure 3)

Qty

A. 12" x 37" lathe w/3-Jaw Chuck 6",

steady rest, and Follow rest installed

(not shown) ................................................. 1

B. rubber gaskets (lathe/stand) ................... 2

c. Brackets (Center panel) ............................. 2

D. Complete Bolt Bag ..................................... 1

— hex Bolts M12-1.75 x 50 (lathe/stand) .. 6
— lock Washers 12mm (lathe/stand) ....... 6
— Flat Washers 12mm (lathe/stand) ........ 6
— hex nuts M12-1.75 (lathe/stand) .......... 6
— phillips head screws M6-1 x 10
(Center panel) ...................................... 12
— Flat Washers 6mm (Center panel) ....... 12
— hex nuts M6-1 (Center panel) ............... 6

E. Center panel ............................................... 1

f. Chip pan ..................................................... 1

G. tool Box...................................................... 1

H. American rocker type tool post ............... 1

I. oil Can ....................................................... 1

J. drill Chuck Arbor Mt#3–B16 ...................... 1

K. live Center Mt#3 ....................................... 1

L. spindle sleeve Mt#3–Mt#5 ...................... 1

M. dead Centers Mt#3 ................................... 2

N. hex Wrench set 3, 4, 5, 6, 8mm .......1 each

O. 4-Way tool post Key .................................. 1

P. drill Chuck B16 & Key ................................ 1

Q. outside Jaws for 3-Jaw Chuck .................. 3

R. standard screwdriver #2 ............................ 1

S. handles ...................................................... 2

T. Change gears 30, 32, 46t................1 each

u. open end Wrench 13/16mm ...................... 1

V. 4-Jaw Chuck 8" .......................................... 1

W. Faceplate 12" .............................................. 1

X. Chuck Keys ................................................ 2

if any nonproprietary parts are missing (e.g. a

nut or a washer), we will gladly replace them; or

for the sake of expediency, replacements can be

obtained at your local hardware store.

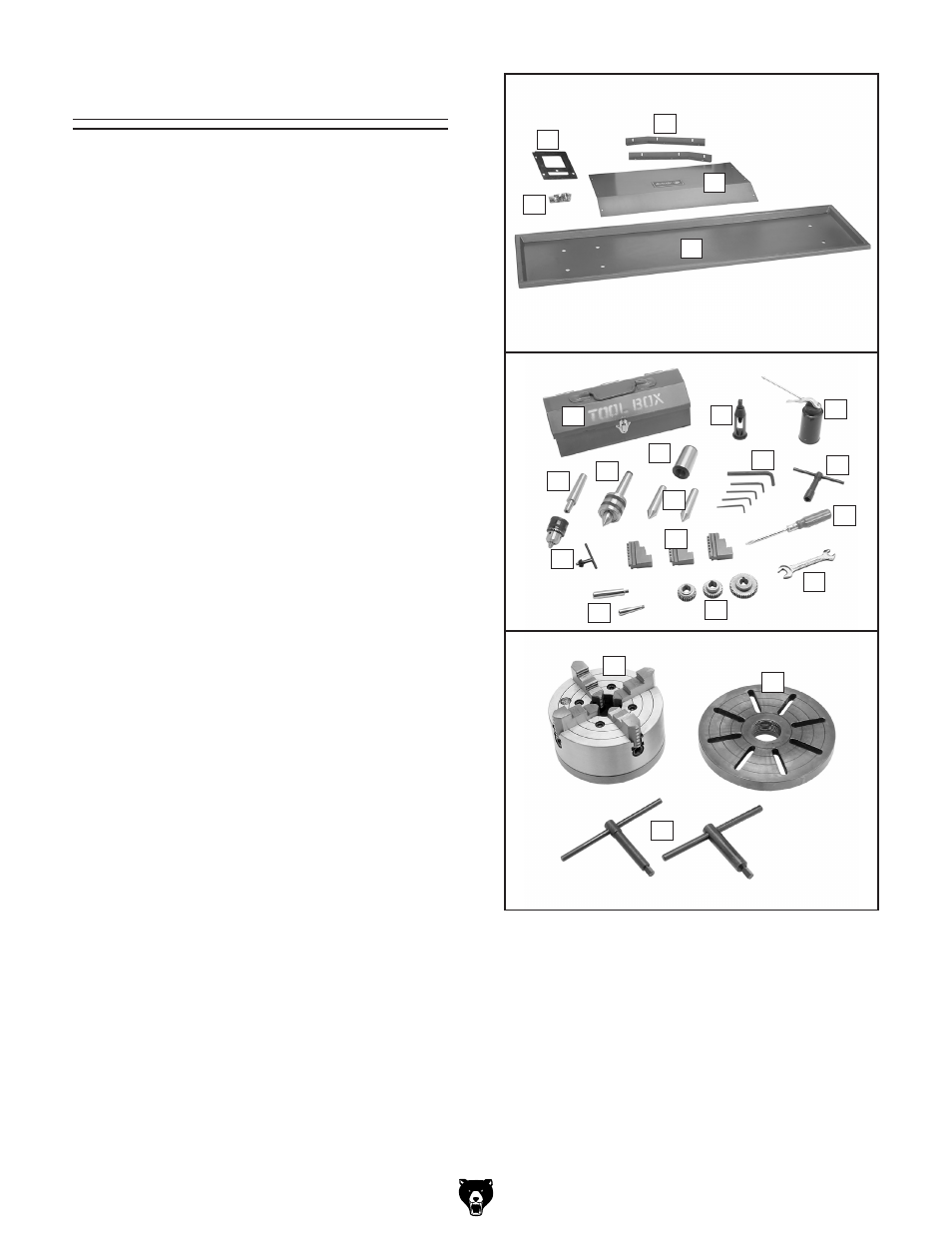

figure 3. Box 1 inventory.
