g9249 12" x 37" Belt drive gap Bed lathe
-67-
SEcTION 9: PARTS

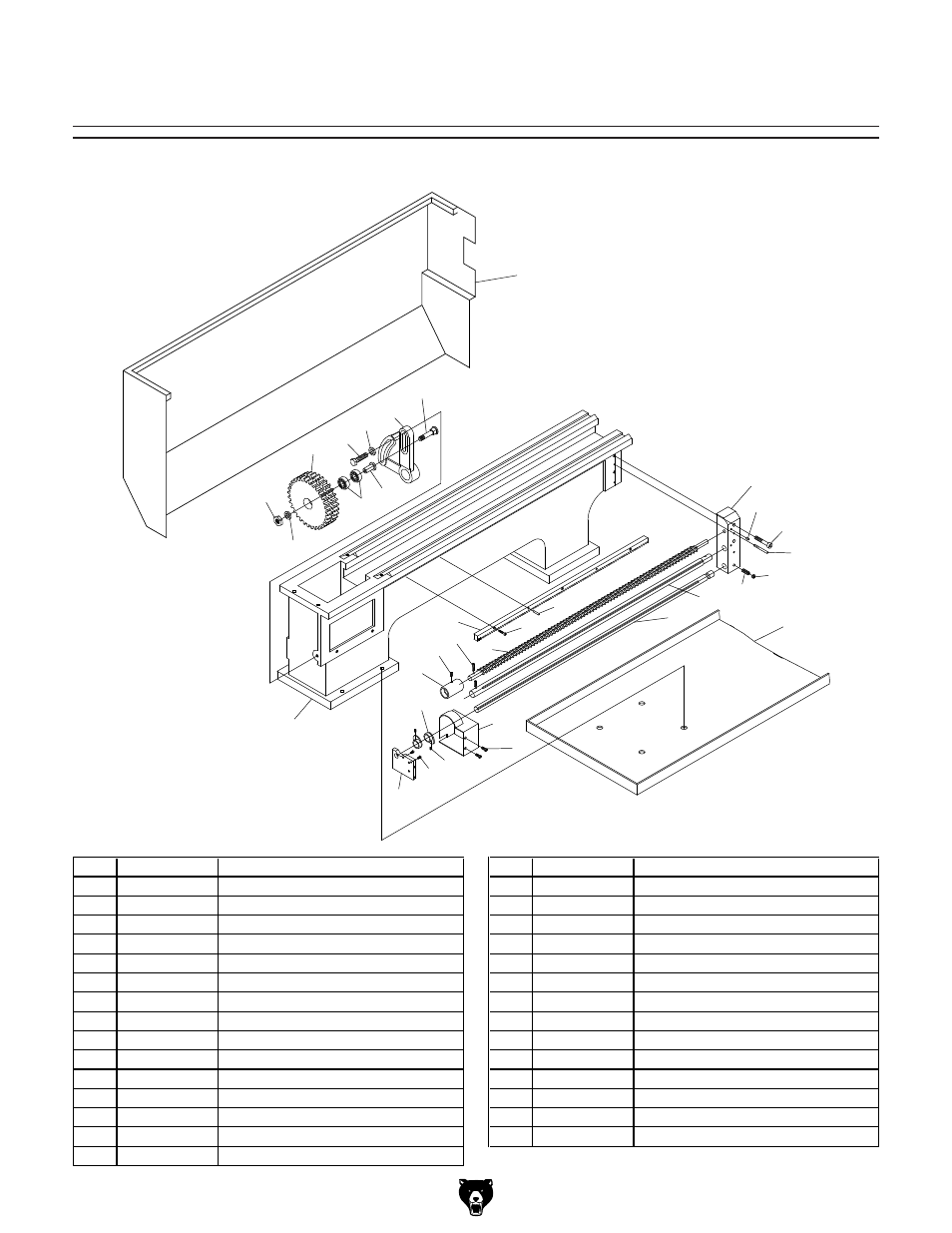

Bed
&
'
(
)
*
+
,
-
.
&%
&&
&'
&(
&)
&*
&+
&,
&-
&.
'%
'&
''
'(
')
'*
'+
',
'-
'.
(%
&(
'+
&+(
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P9249001 ROD END CAP 17 P9249017 LEADSCREW BUSHING
2 P9249002 BALL OILER 18 PRP05M ROLL PIN 5 X 30
3 PSB05M CAP SCREW M8-1.25 X 50 19 P9249019 CARRIAGE LEADSCREW
4 PRP30M ROLL PIN 5 X 50 20 P9249020 RACK
5 PSS09M SET SCREW M8-1.25 X 20 21 PSB02M CAP SCREW M6-1 X 20
6 PN03M HEX NUT M8-1.25 22 PRP05M ROLL PIN 5 X 30
7 P9249007 FEED ROD 23 P9249023 SHAFT
8 P9249008 SPINDLE DIRECTION ROD 24 P9249024 BRACKET
9 P9249009 CHIP PAN 25 P9249025 BEARING SLEEVE
10 P9249010 SWITCH COVER 26 PW04M FLAT WASHER 10MM
11 PS14M PHLP HD SCR M6-1 X 12 27 PB31M HEX BOLT M10-1.5 x 40
12 P9249012 ECCENTRIC BRACKET 28 P6003 BALL BEARING 6003ZZ
13 PSS02M SET SCREW M6-1 X 6 29 P9249029 CHANGE GEAR 120/127T
14 PSB26M CAP SCREW M6-1 X 12 30 P9249030 SPECIAL NUT M10-1.5
15 P9249015 SWITCH BRACKET 163 P9249163 BACKSPLASH
16 P9249016 BED
