g9249 12" x 37" Belt drive gap Bed lathe
-3-
Identification

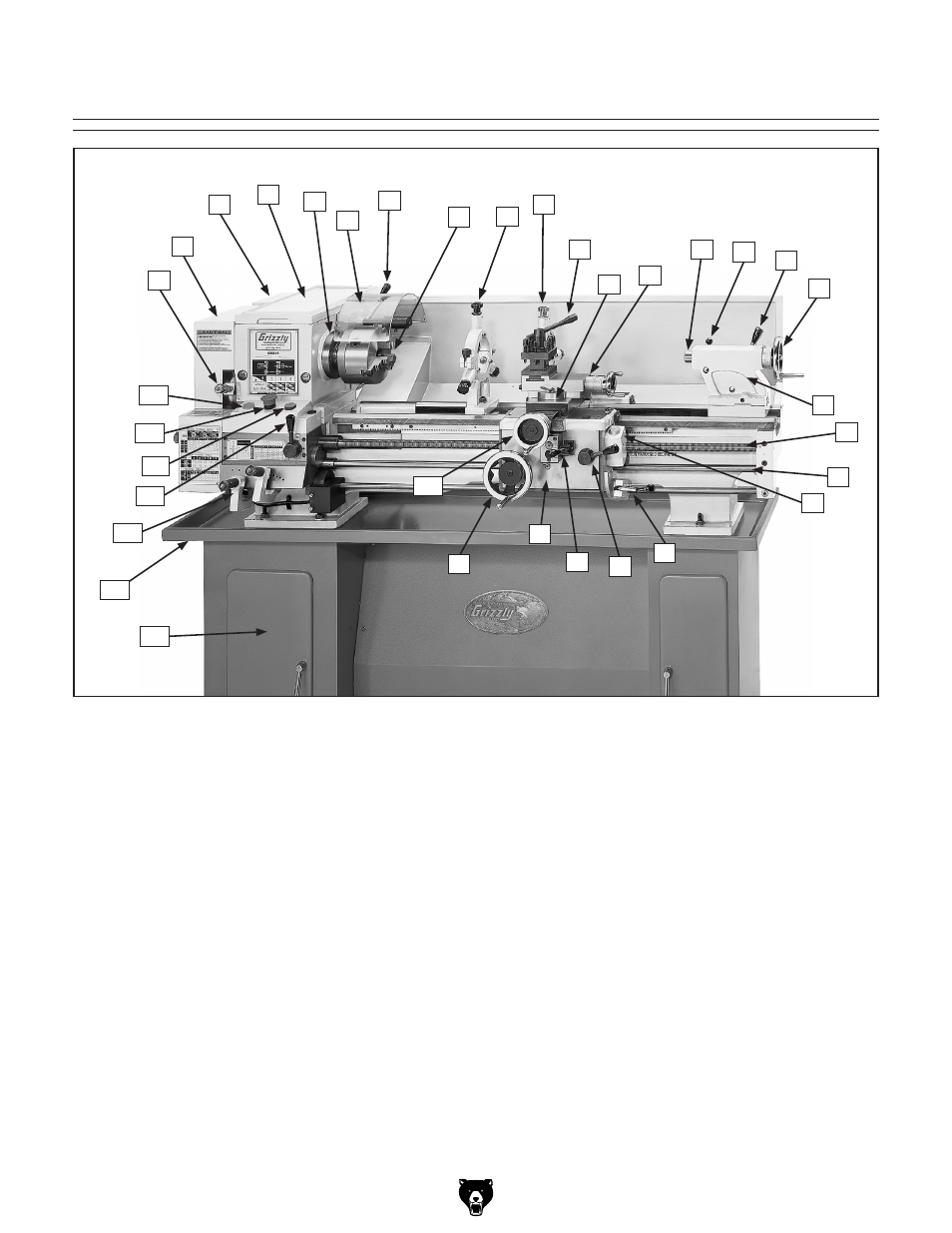

figure 1. Model g9249 identification.
A
B
C
d
e
F
g
h i
J
K
l
M
n o
p
Q
r
s
AC
Ad
Ae
AF
Ag
A. Feed direction lever
B. Change gear Cabinet
c. electrical Cabinet
D. headstock Cover
E. headstock threaded spindle 2 1 ⁄
4
"-8 Mt#5
f. Chuck guard
G. Belt tensioning lever
H. 3-Jaw Chuck
I. steady rest
J. Follow rest
K. 4-Way tool post
L. Cross slide
M. Compound slide
N. tailstock Quill Mt#3
O. Quill lock
P. tailstock lock
Q. Quill handwheel
R. tailstock
S. longitudinal leadscrew
T. Feed rod
u. thread dial
V. spindle direction lever
W. half-nut lever
X. Apron
y. Feed Change lever
z. Carriage handwheel & dial
AA. Cross slide handwheel & dial
AB. Cabinet stand
Ac. Chip pan
AD. Feed rate selectors
AE. Feed rod/leadscrew lever
Af. Jog Button
AG. emergency stop Button
AH. power lamp
