Optional Brackets
A appropriate bracket fully complements the magnetic lock.
Brackets are selected according to the direction of door
swing, the thickness of door frame, and the materials of the
door.

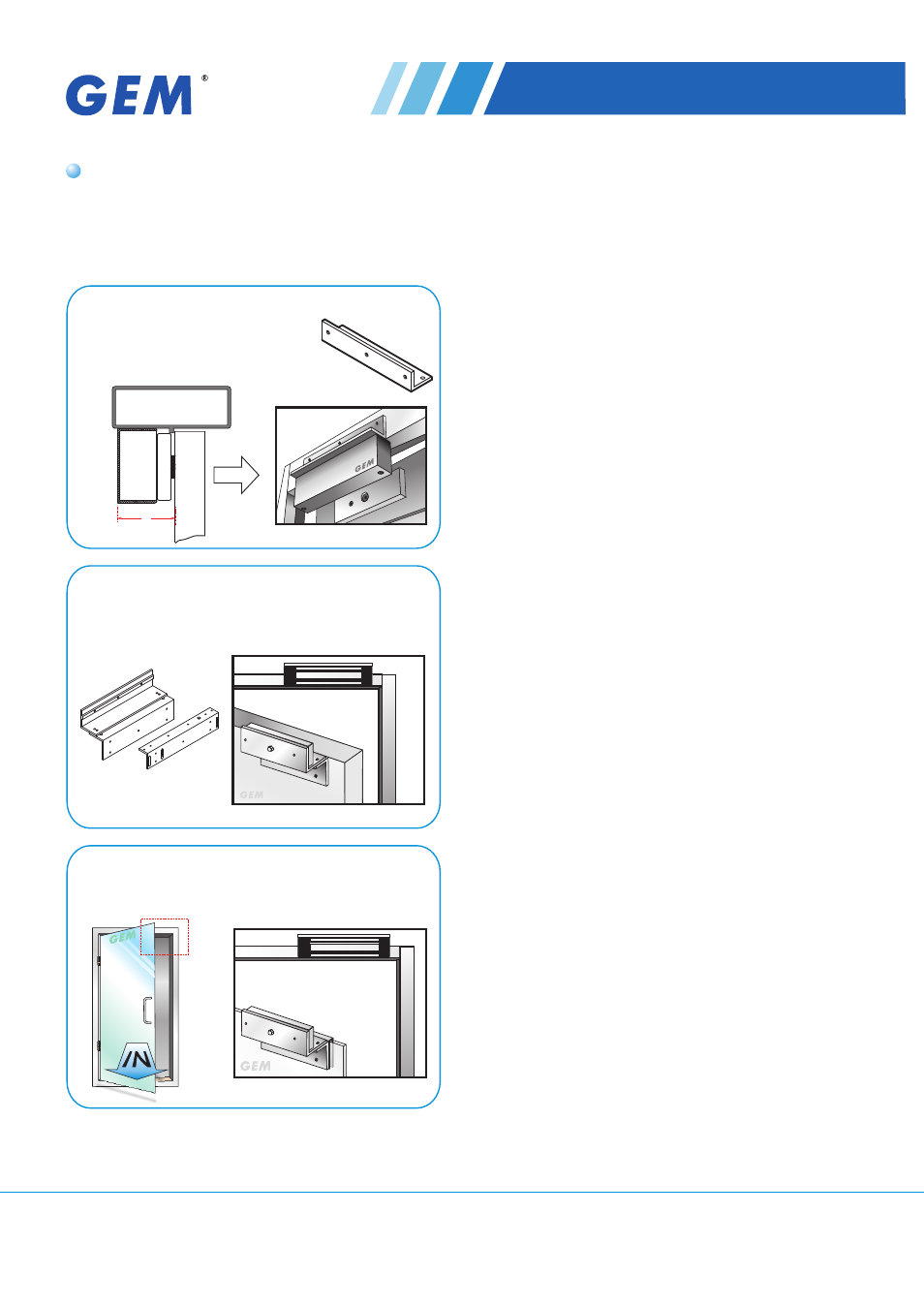

Outswing doors: L-brackets are recommended for narrow
frame doors.
38 mm
L-150
Inswing doors: bracket is recommended for
use on doors that open inwards.
LZ-150
Inswing full frameless glass doors: bracket is
recommended for use on full frameless glass doors with
thickness of 10 mm.
GLZ-150
LZ-150
GIANNI INDUSTRIES , INC.
When the door frame thickness (marked
'A') is less than 38 mm it is highly
recommended to use an L-150 bracket to
enable installation.
