EM-1200 series
Standard Electromagnetic Lock
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-EM-1200 Ver. D Published on 2011.09.07
GIANNI INDUSTRIES, INC.

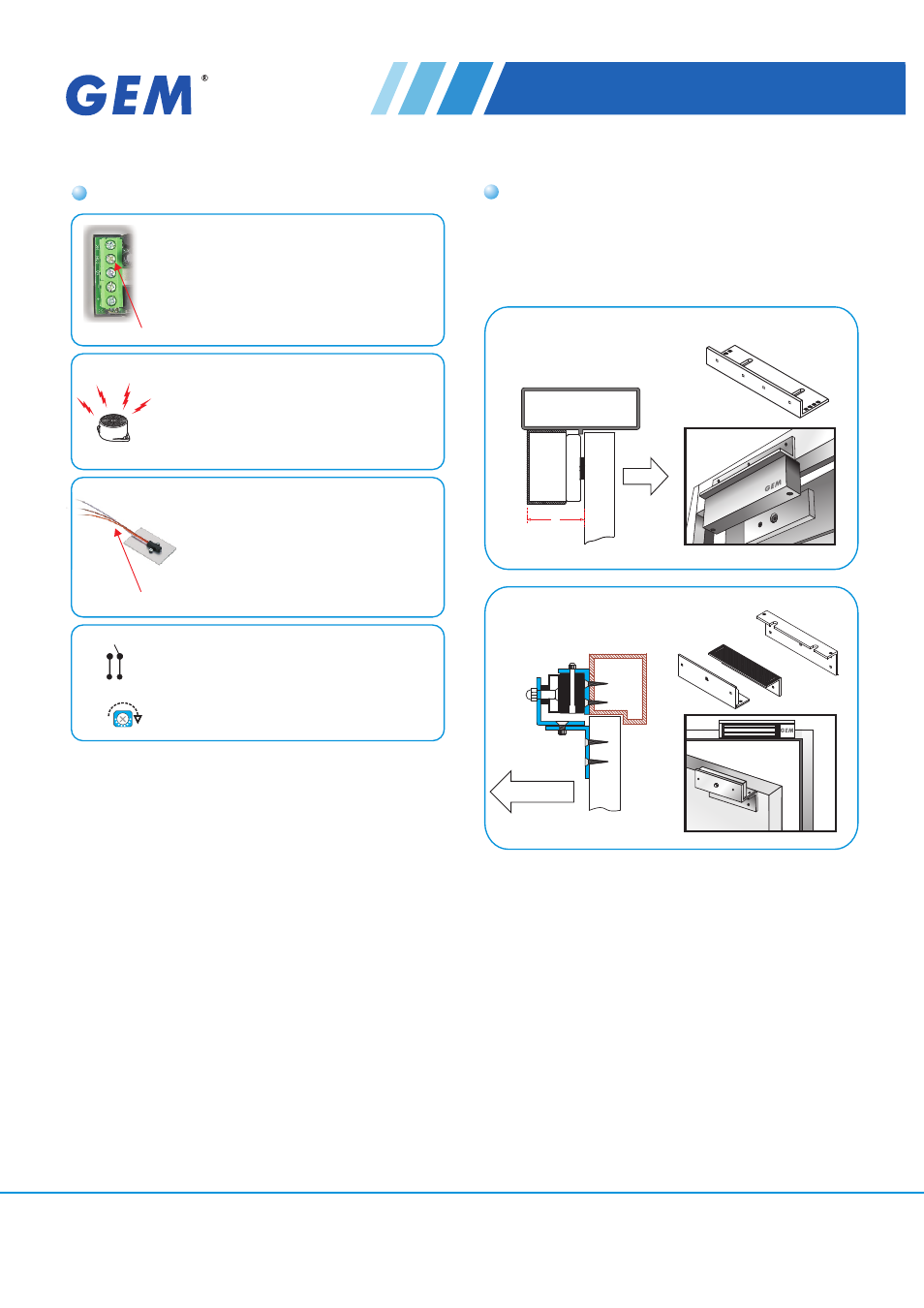

Operating Features
EM-1200MTD : Relock time delay
Ensure automatic locking after the
door is closed properly. Relock time
delay can be adjusted from 1 to 80
seconds.
EM-1200MBZ : Buzzer Alarm
Door Held Open Alarm is an auditory feedback for
users. The alarm sounds when the door is not
closed and that has exceeded a specified time
limit. VR timer is adjustable from 1 to 20 seconds.
EM-1200M : Bond sensor output
Indicate the locked & unlocked status with visible
LED indicator.
Bond sensor output : SPDT rated: 0.5A/125VAC;1A/24VDC
: Door status EM-1200MDS
Door Status Sensor indicates the door
is in an open or closed status.
Door status output : SPDT rated: 0.2A/12VDC
Timer Adjust
Shorten
Trigger
Optional Brackets
With L-bracket for narrow frame doors
When < 60 mm ,must
installed with "L" brackets.
"A"
L-500
LZ-bracket for inswing doors
LZ-500N
Bracket installation is according to door swing
direction and door frame type , e.g. narrow frame
door , frameless glass door , inswing door , etc.
60 mm
Magnet
A
rm
a
tu
re
Door Frame
Door
Leaf
A
Outswing
In-Swinging
Frame
Door
