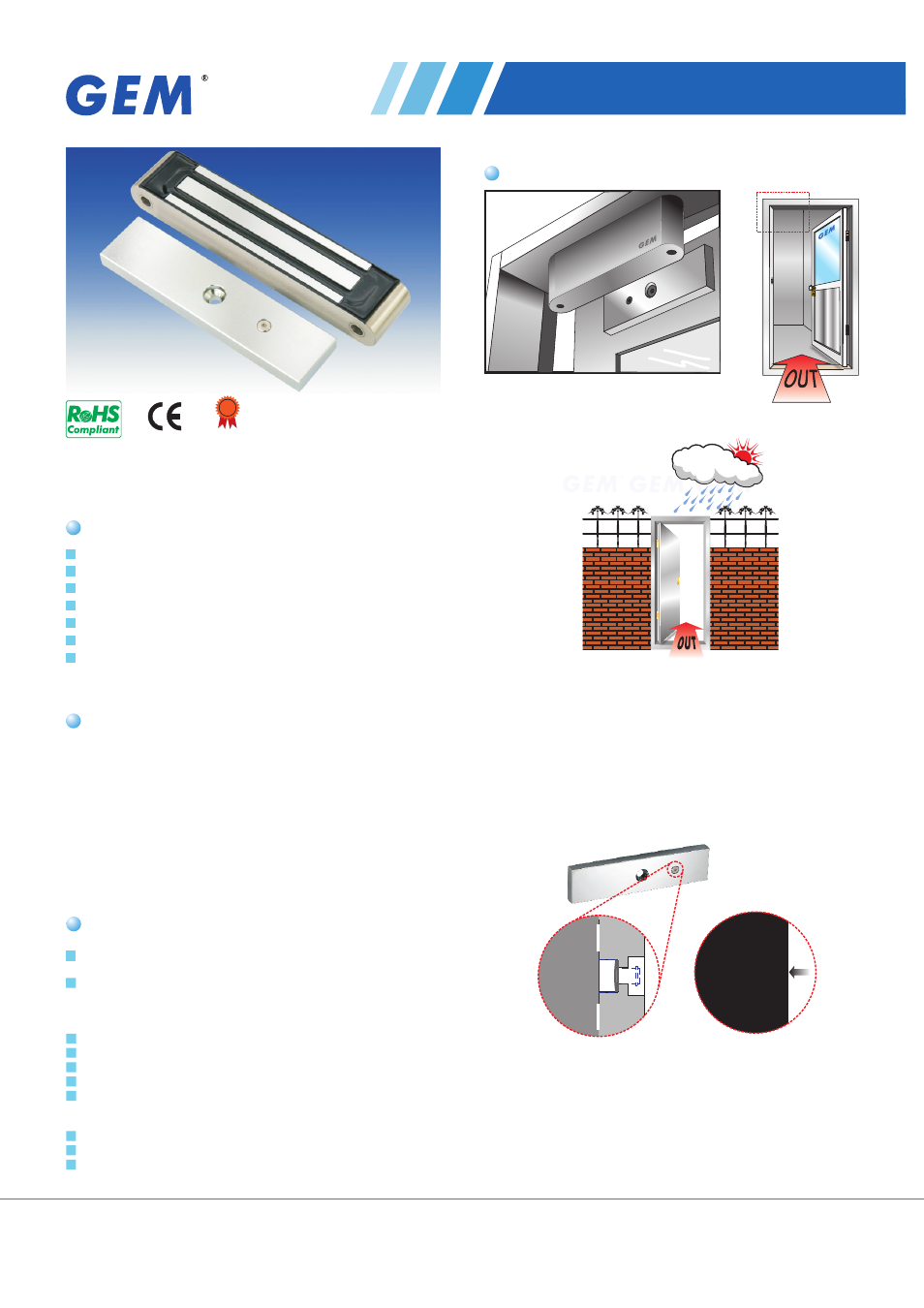

Gianni Industries EM-750 User Manual

Statement specification, Features, Em-750 midi magnetic lock waterproof

background image

Statement

Specification

Regular Installation

Waterproof Test:
Reference to IEC 60529 Edition 2.1: 2001-02-IPX7

EM-750 is designed for surface mount on out-

swing doors. It achieves waterproof rating IPX 7
and

R comes with

magnetic bond sensor indicating locked and
unlocked status.

is suitable for outdoor applications. The oval-

angle magnet is unprecedented on market and
aesthetically appealing. EM-750

Operating Voltage: Single Voltage: 12 or 24VDC
Dual Voltage: 12/24VDC
Current Draw:
Single Voltage: 340mA/12VDC, 250mA/24VDC
Dual Voltage: 500mA/12VDC, 250mA/24VDC
(at temperature 20ºC)
Bond sensor output (EM-750R):SPDT rated 0.5A/20VDC.
Operating Temperature: -10~55°C (14~131°F)
Humidity: 0~95% non-condensing.
Holding Force: Up to 800 lbs (363 Kg)
Dimensions:
Magnet:(L) 230, (W) 46, (D) 30 mm
Armature Plate:(L) 185, (W) 45, (D) 14 mm
Special Finishes for magnet and armature plate: Zinc plated
Epoxy Potting Compound: E87252 (S), UL94V-0
Net Weight: 3.0 Kg

GIANNI INDUSTRIES , INC.

Features

High reliability
Stainless steel housing
Oval-angle magnet
Waterproof rating IPX 7
Dual voltage 12 or 24 VDC (selectable)
MOV provides spike and surge protection
Holding force up to 800 lbs

EM-750 Midi Magnetic Lock
Waterproof

This series of Waterproof Magnetic Lock is

epoxy

potting compound. Also, GEM Waterproof Series Magnetic
Locks have been proved to withstand water with the test
procedures of IPX7, IPX8 by a trusted third party. Therefore
users need not worry that the lock will rust or spark, if the lock
is in outdoor applications and installed in confined space
where inflammable gases are stored.

protected by

Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-EM-750 Ver. H Published on 2011.08.26

Magnet

Armature

(Power Off)

Magnet

Armature

(Power On)

Anti-residual statement
Our electromagnet locks feature Anti-Residual Magnetism
(ARM) which ensures the door can be opened without any
resistance from left over magnetism imparted to the armature
plate

No. 13, Zhongxing Rd., Tucheng Dist., New Taipei
City 236,Taiwan (R.O.C.)
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: [email protected]
Website: gianni.tw
