Gianni Industries GS-300 - Manual

Statement
Specifications
GIANNI INDUSTRIES, INC.
Copyright 2008 Gianni industries, inc. All rights reserved.
DM-CA-GS-300 Ver. C Published on 2008.05.14
The products are manufactured under an ISO
9 0 0 1
Q C 0 8 0 0 0 0 C e r t i f i e d Q u a l i t y
Management Program environment back its
product quality, performance and commitment
to customer satisfaction.
&
The product is warranted against defects in material and
workmanship while used in normal service for a period of 5
year from the date of sale to the original customer. The GEM
policy is one of continual development and improvement;
therefore GEM reserves the right to change specifications
without notice.
Warranty

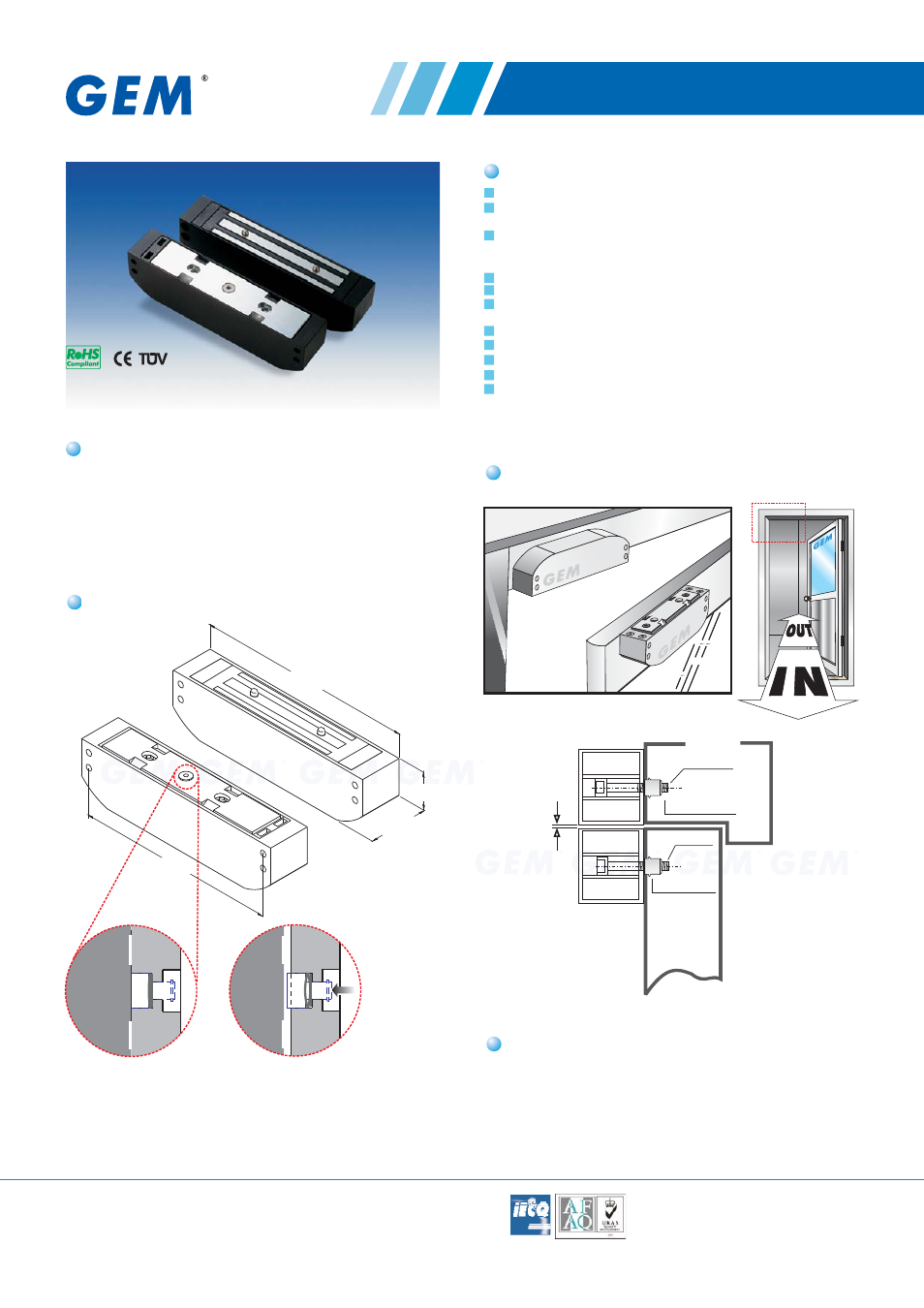

Surface Installation
Unit: mm
Dimension
Unique Anti-Residual design
When there is no power, there will be no holding force, and
the push-off button will pop out immediately, to release the
Electromagnetic Lock and the Armature Plate for no residual
magnetism.
Magnet Armature
(Power Off)
Magnet Armature
(On Power)
34
44.5
176
162
The GS-300 mini surface mount shear lock with complete
housing is specially designed for surface mounting door. The
housing holds the magnet should be fitted above the door and
the housing holds the Armature Plate should be installed on
the door.
It is essential to leave a minimum gap of 2mm
between the Shear Lock and the Armature Plate, in order to
perform the correct operation.
Voltage Tolerance: 10%
Current Draw: 420mA@12 VDC; 210mA@24 VDC
)at temperature 20 C(
Magnetic bond sensor monitor output (GS-300M)
(SPDT rated 3A@30VDC), indicates the door locked
or unlocked status.
Operating Temperature: -30~+55 C
Humidity: 0~95% non-condensing.
Lock's surface Temperature (when the power is on):
Holding Force: Up to 1200 lbs (545 Kg) in shear.
The Gap between the Lock and Armature plate is 2 mm
Special Finishes for magnet and armature plate: Zinc
Epoxy Potting Compound: E87252 (S), UL94V-0
Weight )Approx.(: 1.4 Kg
±
GS-300
MINI SURFACE MOUNT SHEAR LOCK
M6 x45 Screw
M6 x45 Screw
Blind Nut
Blind Nut
Magnet
Assembly
Armature
Assembly
Metal Door
Header
Mini
clearance
2m
mo
fg
a
p
