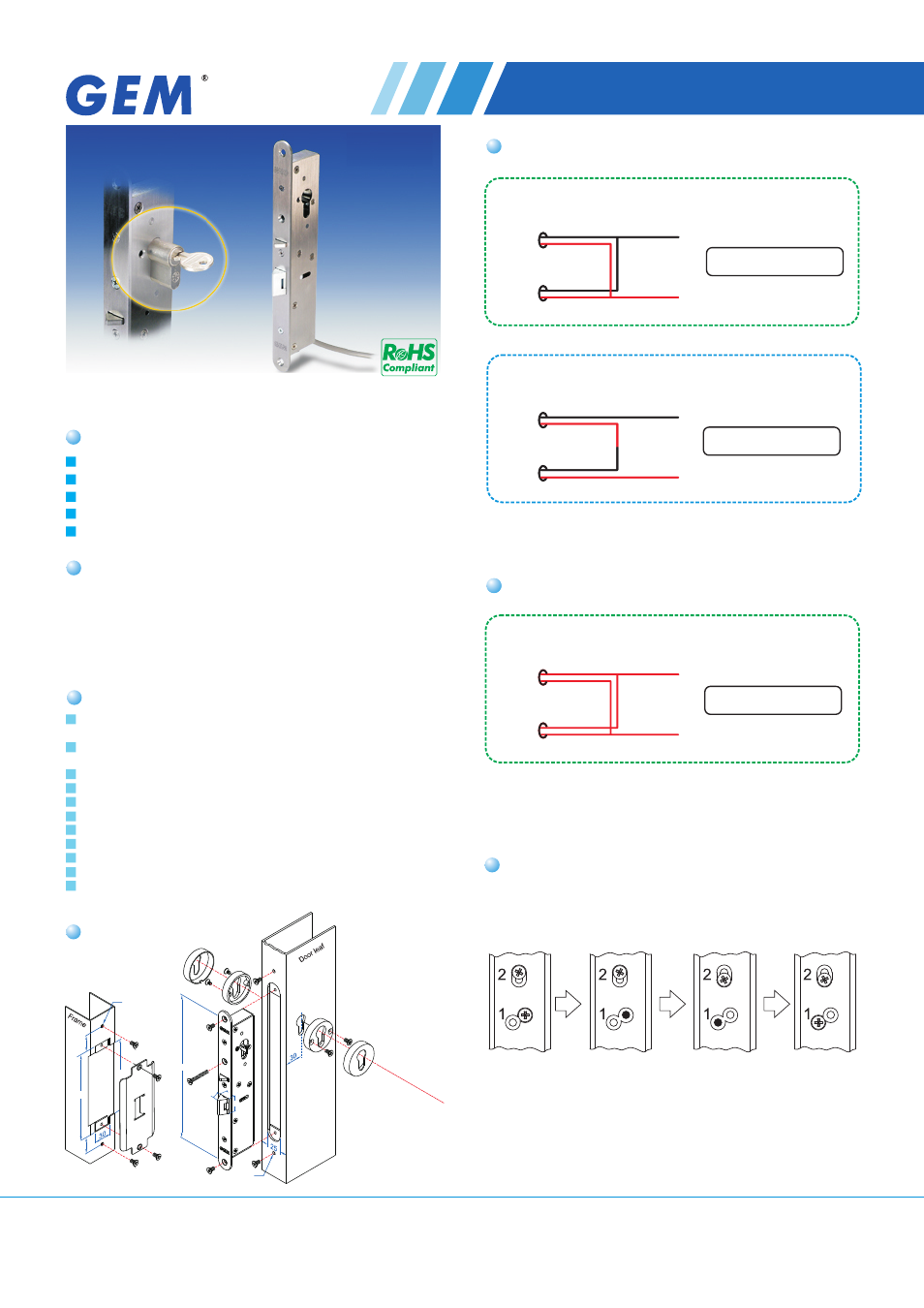

Gianni Industries ML-300 User Manual
Specification dimension, Features, Voltage selection for 12 or 24 vdc

Specification
Dimension
Easily Changeable control version
Long life solenoids
Bond sensor output
For double swing door
Automatically and manually
Features
Operating Voltage: ML-300:12 or 24VDC
ML-300-SW:12~24VDC/AC
Current Draw: ML-300:280mA/12 VDC;140mA/24VDC
ML-300-SW:210mA/12VDC;150mA/24VDC
Version Changeable: Fail-safe/secure changeable
Operating Temperature: -10~45ºC
Humidity: 0~95% non-condensing
Lock bolt sensor switch output:
SPDT rated 3/125VAC
Solenoids testing: Tested to 1,000,000 cycles
Backset : 30mm
Net Weight: ML-300:800g / ML-300-SW:815g
Only applicable to vertical installation
GIANNI INDUSTRIES, INC.
Patents
M 338884(Taiwan)
Nr 20 2008 005 402.8(Germany)
Fail-Secure
Fail-Safe
Fail-Secure
Fail-Safe
Fail-Secure
Fail-Safe
Fail-Secure
Fail-Safe
"Fail-Secure"
(Power to Open)
"Fail-Safe"
(Power to Lock)
The Electromechanical Lock is easily changed between fail-
safe and fail-secure modes.
ML-300
ML-300-SW
Electromechanical Lock
For 24 VDC Optional
For 12 VDC Optional
12 VDC Power supply
Voltage Selection for 12 or 24 VDC
–
+
–
+
–
+
Black
Red
Black
Red
24 VDC Power supply
Black
Red
Black
Red
Voltage
for 12~24VDC/AC
Selection
For 12~24 VDC/AC Optional (ML-300-SW)
12~24 VDC/AC Power supply
Red
Red
Red
Red
Cylind
er n
ot inc
lud
ed
–
+
ш5.0
250
150
124
28
28
ш5.0
26
13
16
Statement
Electromechanical Locks exhibit convenience and reliability
found in electric and mechanical locks respectively. This type
of locks is aimed at granting access promptly rather than
d e f e n d i n g b u r g l a r y. E l e c t r o m e c h a n i c a l L o c k s m a y b e
unlocked with spare keys when the access system is out of
service.
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-ML-300 Ver. E Published on 2011.03.21
Switchable Version
No. 13, Zhongxing Rd., Tucheng Dist., New Taipei
City 236,Taiwan (R.O.C.)
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: [email protected]
Website: gianni.tw
