-28-
Model G0632 (Mfg. 4/12+)
Changing Speed
Ranges
The Model G0632 has two speed ranges: 1) the
low range from 100 to 1200 RPM which provides
a greater torque, and 2) the high range from 250
to 3200 RPM.
Refer to the speed recommendations table (see
Figure 31) to choose the appropriate RPM for
your operation. Then choose the speed range that
will include the selected RPM.
Changing Speed Ranges
Diameter
of Work-
piece
Roughing
RPM
General
Cutting
RPM
Finishing
RPM
Under 2" 1520 3200 3200
2–4" 760 1600 2480
4–6" 510 1080 1650
6–8" 380 810 1240
8–10" 300 650 1000
10–12" 255 540 830
12–14" 220 460 710
14–16" 190 400 620
Figure 31. Model G0632 speed
recommendations.
3. Use the included 8mm hex wrench to loosen
the motor mount cap screw just under the
motor tensioning handle (see
Figure 33).

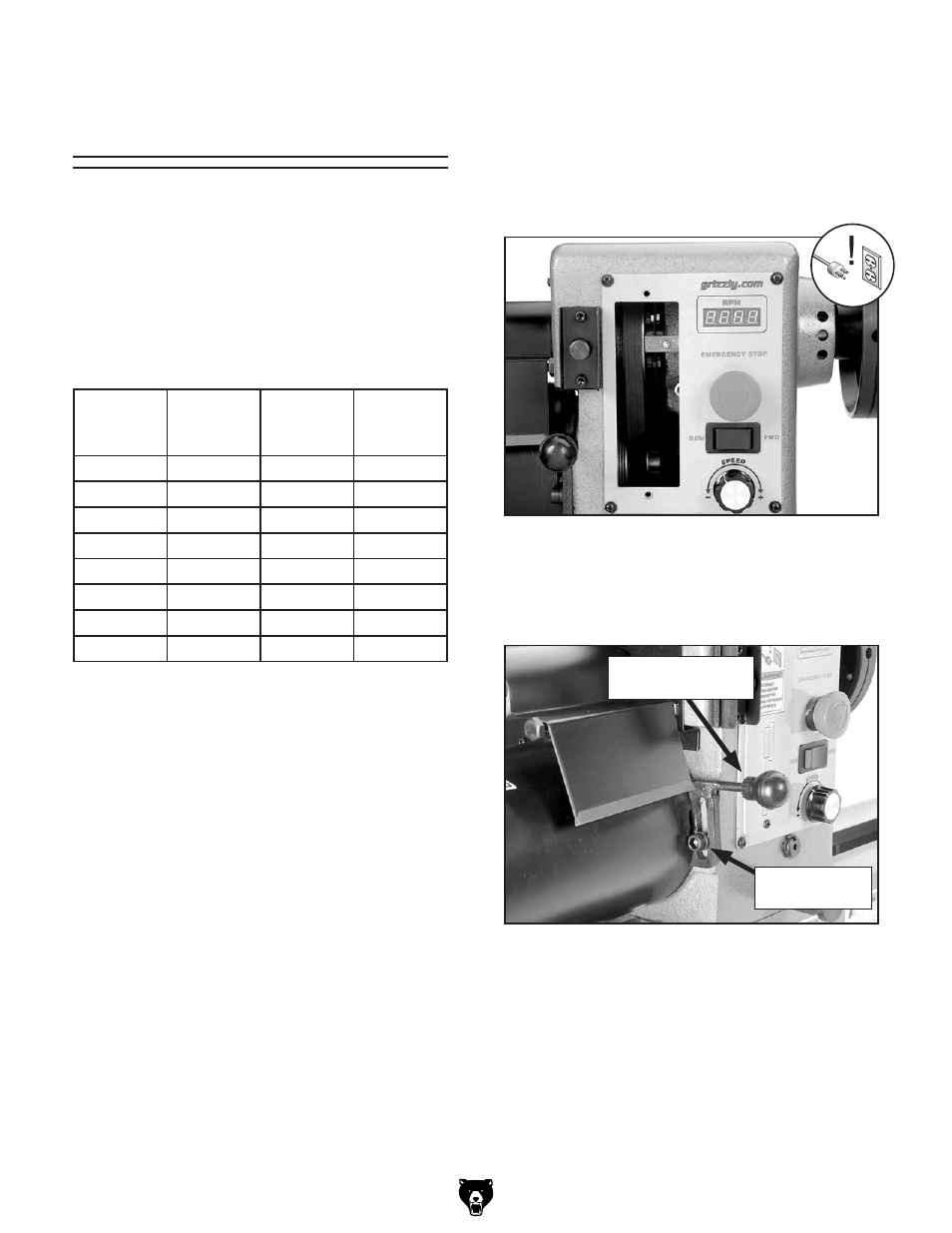

Figure 32. Belt access panel removed.
Figure 33. Motor tensioning handle and motor
mount cap screw.
Motor Mount
Cap Screw
Motor Tensioning
Handle
2. Remove the front belt access panel (see
Figure 32).
To change speed ranges:
1. DISCONNECT THE LATHE FROM THE
POWER SOURCE!
