-14-
Model G0632 (Mfg. 4/12+)
Box Inventory: (Figures 5–7) Qty
A. Lathe Assembly
—Headstock (mounted) ............................. 1
—Tool Rest Base (mounted) ...................... 1
—Tailstock (mounted) ................................ 1
—Face Plate 6" (installed).......................... 1
B. Supporting Legs ......................................... 2
C. Machine Feet .............................................. 4
D. Tool Rest .................................................... 1
E. Spur Center MT#2 ...................................... 1
F. Live Center MT#2 ....................................... 1
G. Hex Wrenches 3, 4, 8mm .....................1 Ea
H. Knockout Tool ............................................ 1
I. Indexing Pin ................................................ 1
J. Hardware (not shown)
—Cap Screws M10-1.5 x 25 ...................... 8
—Lock Washers 10mm .............................. 8
B
C
D
E
F
G
H
Inventory

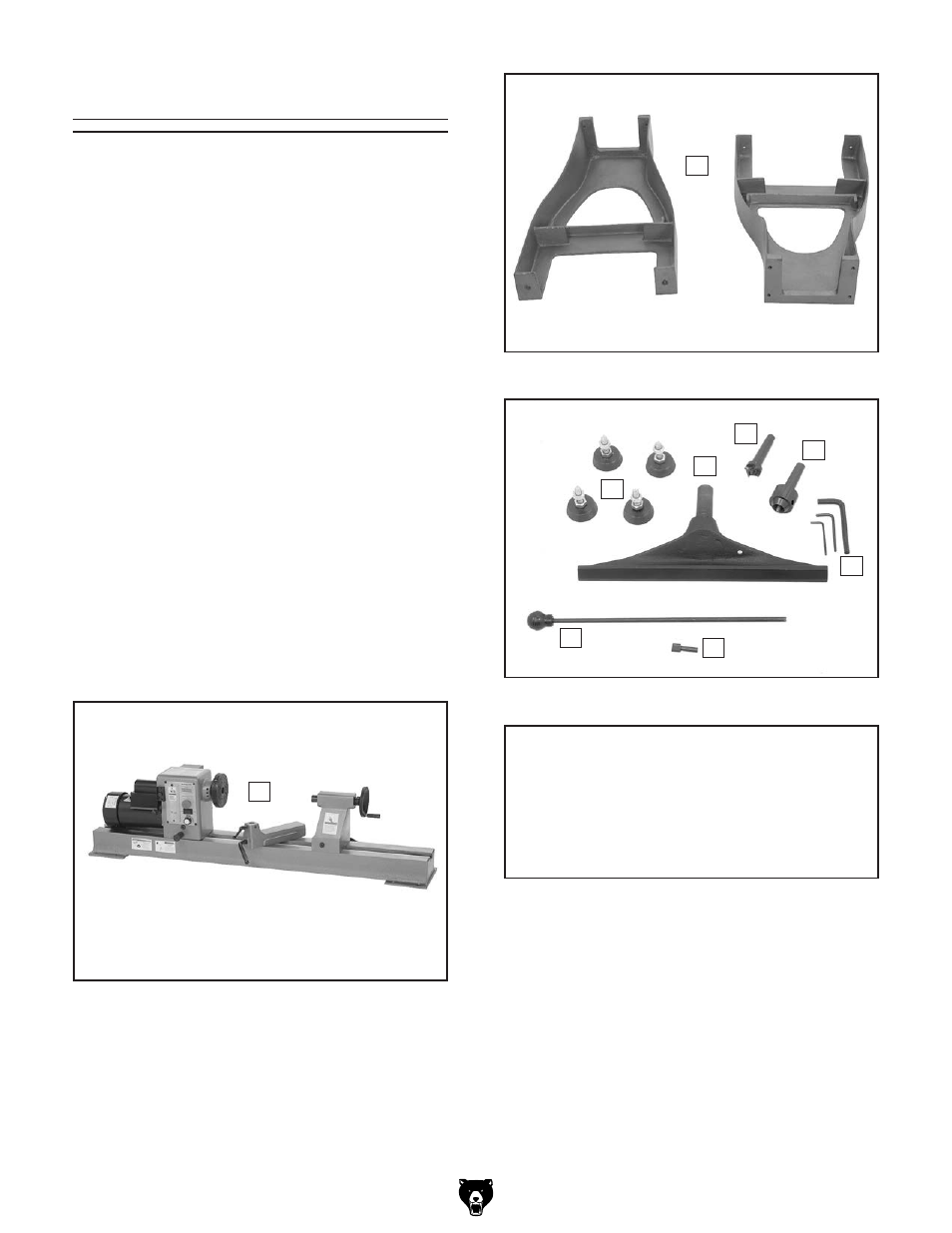

Figure 6. Model G0632 inventory B.
Figure 7. Model G0632 inventory C–I.
Figure 5. Model G0632 inventory A.
A
I
Inventory
The following is a description of the main compo-
nents shipped with your machine. Lay the compo-
nents out to inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
NOTICE
If you cannot find an item on this list, care-
fully check the machine and the packaging
materials. Some of these items may be pre-
installed for shipping or become misplaced
during unpacking.
