Gianni Industries LZ-EM150 - Manual

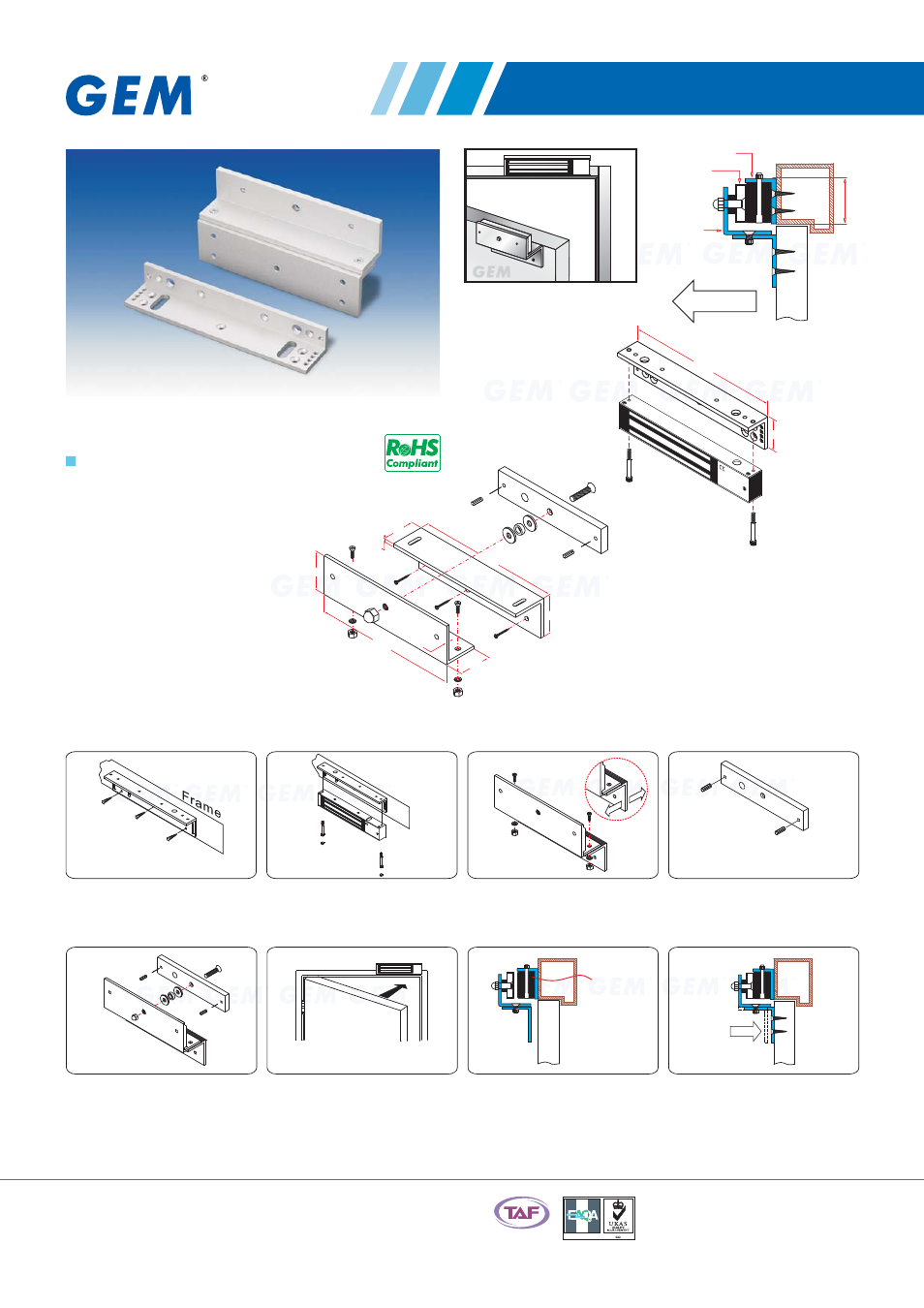

LZ-EM150 Bracket
Typical mounting on “IN-SWINGING” door
GIANNI INDUSTRIES, INC.
No.306-1, Hsin Shu Road, Hsin Chuang, Taipei,Taiwan 242
TEL: 886-2-2206 9929
FAX: 886-2-2204 6632
E-Mail: [email protected]
Website: gianni.tw
Copyright © 2008 Gianni industries, inc. All rights reserved.
DM-CA-LZ-EM150 Ver. C Published on 2008.05.20
The products are manufactured under an ISO
9 0 0 1
Q C 0 8 0 0 0 0 C e r t i f i e d Q u a l i t y
Management Program environment back its
product quality, performance and commitment
to customer satisfaction.
&
GP001
200
180
38
6
40
40
6
48
30
180
Application for the Electromagnet:
EM-150
Minimal:40mm
L-Bracket
Z-Bracket
In-Swinging
Frame
Door
Armature
Unit:mm
Installation Steps of LZ bracket for In-swinging doors
2
Tighten the electromagnetic lock
on the L bracket by using the
fixing screw.
1
Find a mounting location on the
door frame for the L bracket. Make
sure that the door is still closeable.
6
Close the door. Measure the correct
position by bringing the armature
plate close to the contact surface of
the electromagnetic lock.
7
Turn on the power of EM-Lock,
and let the armature plate bonds
to the EM-lock. Adjust the position
between the Z bracket and the
door frame.
Finish
Once the position is correct,
use the screws to permanently
mount the Z bracket on the door
frame. This should be the last step.
4
Insert the guide pins into the
armature plate.
5
Put one rubber washer between
armature plate and the Z bracket.
3
Assemble the Z bracket, and make
sure that the Z bracket is adjustable.
Power
