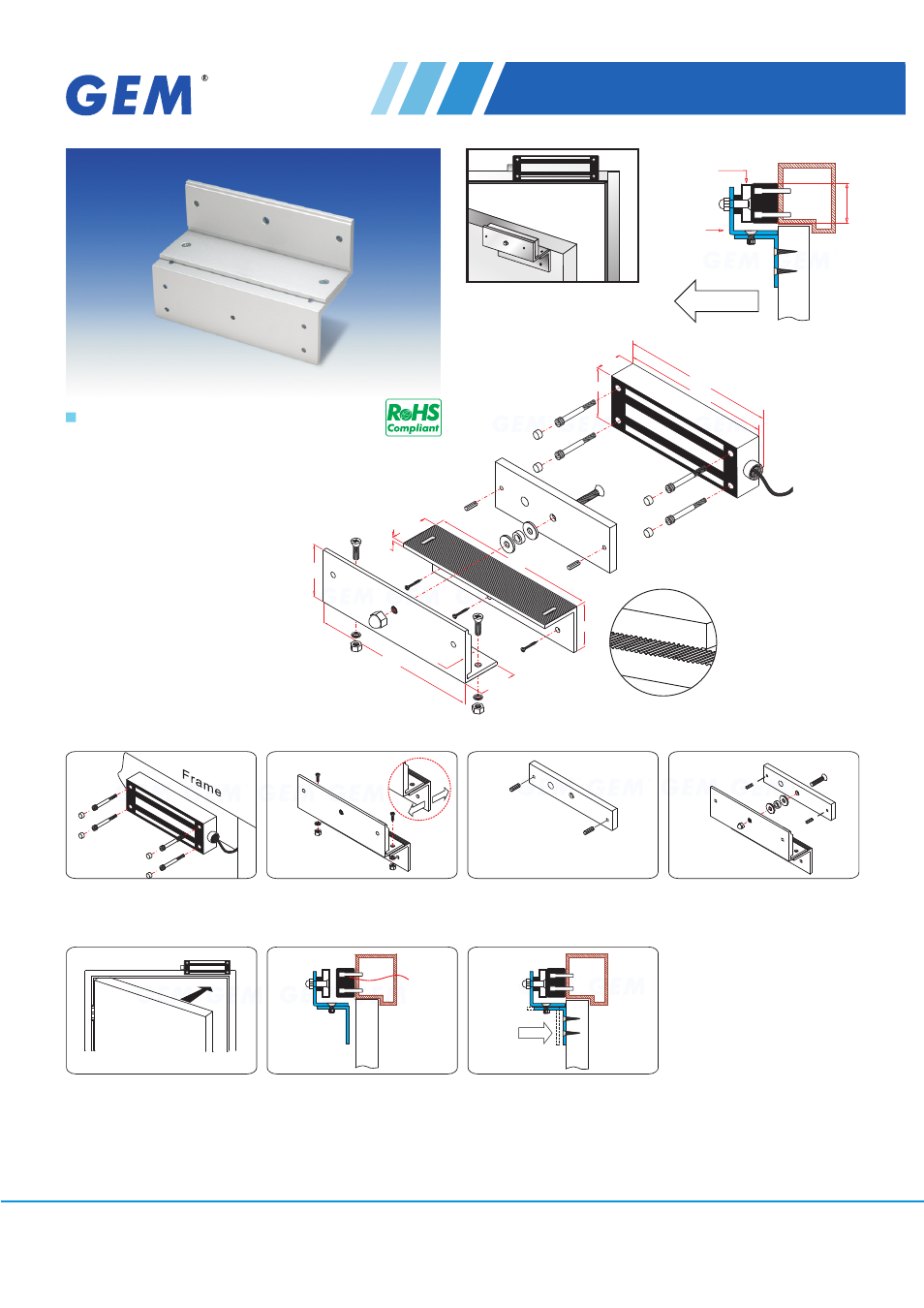

Z-600N Bracket

Typical mounting on

i

n-swing door

GIANNI INDUSTRIES, INC.

Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-Z-600N Ver. D Published on 2011.09.08

Unit:mm

Application for the Electromagnet:
GL-1200F series

Installation Steps of Z bracket for In-swing doors

2

Tighten the electromagnetic lock
on the L bracket by using the
fixing screw.

1

6

Close the door. Measure the correct
position by bringing the armature
plate close to the contact surface of
the electromagnetic lock.

Turn on the power of EM-Lock,
and let the armature plate bonds
to the EM-lock. Adjust the position
between the Z bracket and the
door frame.

Finish

Once the position is correct,
use the screws to permanently
mount the Z bracket on the door
frame. This should be the last step.

4

Insert the guide pins into the
armature plate.

5

Put one rubber washer between
armature plate and the Z bracket.

3

Assemble the Z bracket, and make
sure that the Z bracket is adjustable.

Power

19

0

63

.5

8

63

.5

5

63

.5

63

.5

19

0

40

203

216

62

M

in

im

a

l:

6

2

m

m

Z-Bracket

In-swing

Frame

D

o

o

r

Armature

Plate

No. 13, Zhongxing Rd., Tucheng Dist., New Taipei
City 236,Taiwan (R.O.C.)
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: [email protected]
Website: gianni.tw
