頁面 2, Keyprox plus access control system, Application – Gianni Industries Keyprox Plus User Manual
Page 2: Two door system, Single door system, 3c o re, 2c o re, Exit 1, Reader a, 2c o re 3 core 2 core
Gianni supplies all accessories for access control application
including maglock, electric bolt lock, electric strike ,exit button,
power supply, prox cards or fobs.
Keyprox Plus
Access Control System
Application
The KeyProx Plus controller has both a RS-232 and a RS-485 interface.
RS-232 interface a simple connection between the controller and the PC in less than 30 meters. The drawings below show typical
RS-232 connection
AC IN
N L
- +
12VDC 0.5A
P.B.
NO
NC
COM

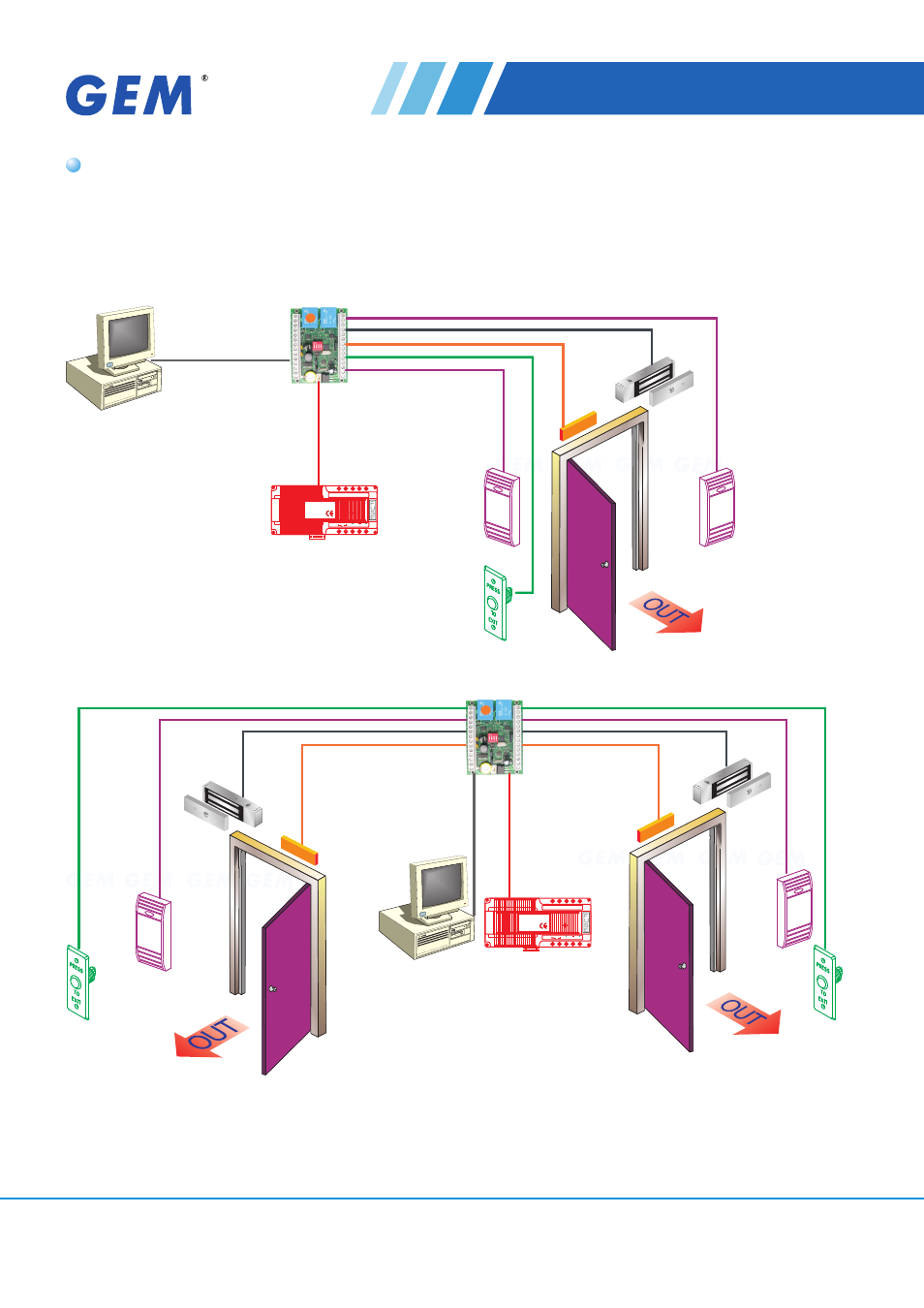

Two Door System
Door
strike 2
Door strike 1
3
c
o
re
3
c
o
re
2
c
o
re
2
c
o
re
2
c
o
re
2
c
o
re
2
c
o
re
2
c
o
re
2
c
o
re
RS-232 to PC
Power supply
Exit 2
Exit 1
Door Sw 2
Door Sw 1
Reader B
Reader A
AC IN
N L
- +
12VDC 0.5A
P.B.
NO
NC
COM
Single Door System
Door
strike 1
3 core
2 core
2
c
o
re
2
c
o
re
3 core
2 core
RS-232 to PC
Reader A
Power supply
Exit 1
Door Sw 1
Reader B (in)
