GIANNI INDUSTRIES, INC.

Copyright 2008 Gianni industries, inc. All rights reserved.
DM-CA-FDH Ver. C Published on 2008.05.19

The products are manufactured under an ISO
9 0 0 1

Q C

0 8 0 0 0 0

C e r t i f i e d

Q u a l i t y

Management Program environment back its
product quality, performance and commitment
to customer satisfaction.

&

The product is warranted against defects in material and
workmanship while used in normal service for a period of 5
year from the date of sale to the original customer. The GEM
policy is one of continual development and improvement;
therefore GEM reserves the right to change specifications
without notice.

Warranty

Specifications

FDH-100M / FDH-200M
Electromagnetic Lock

FDH-200M

Voltage Tolerance: 15%
Current Draw:
FDH-100M: 500mA@12Vdc ,250mA@24Vdc
FDH-200M: 500mA@12Vdc X 2 ,250mA@24Vdc X 2
)at temperature 20C(
Magnetic bond sensor monitor output (SPDT rated

3A@12V DC), remotely monitors the door lock or
unlock status. (N.C. Output--Door opened; N.O.
Output--Door closed)

Operating Temperature: -10~55C )14~131F(
Humidity: 0~95% non-condensing.
Lock's surface Temperature (when the power is on):

Holding Force:
FDH-100M: Up to 600 lbs )272 Kg(
FDH-200M: Up to 1200 lbs )545 Kg(
Special Finishes for magnet and armature plate: Zinc
Epoxy Potting Compound: E87252 (S), UL94V-0Dimensions:
Dimensions:

Magnet:(L) 200(100), (W) 35, (D) 24 mm

Armature Plate:(L) 152, (W) 32, (D) 10 mm

Mounting Plate:(L) 200, (W) 22, (D) 5 mm

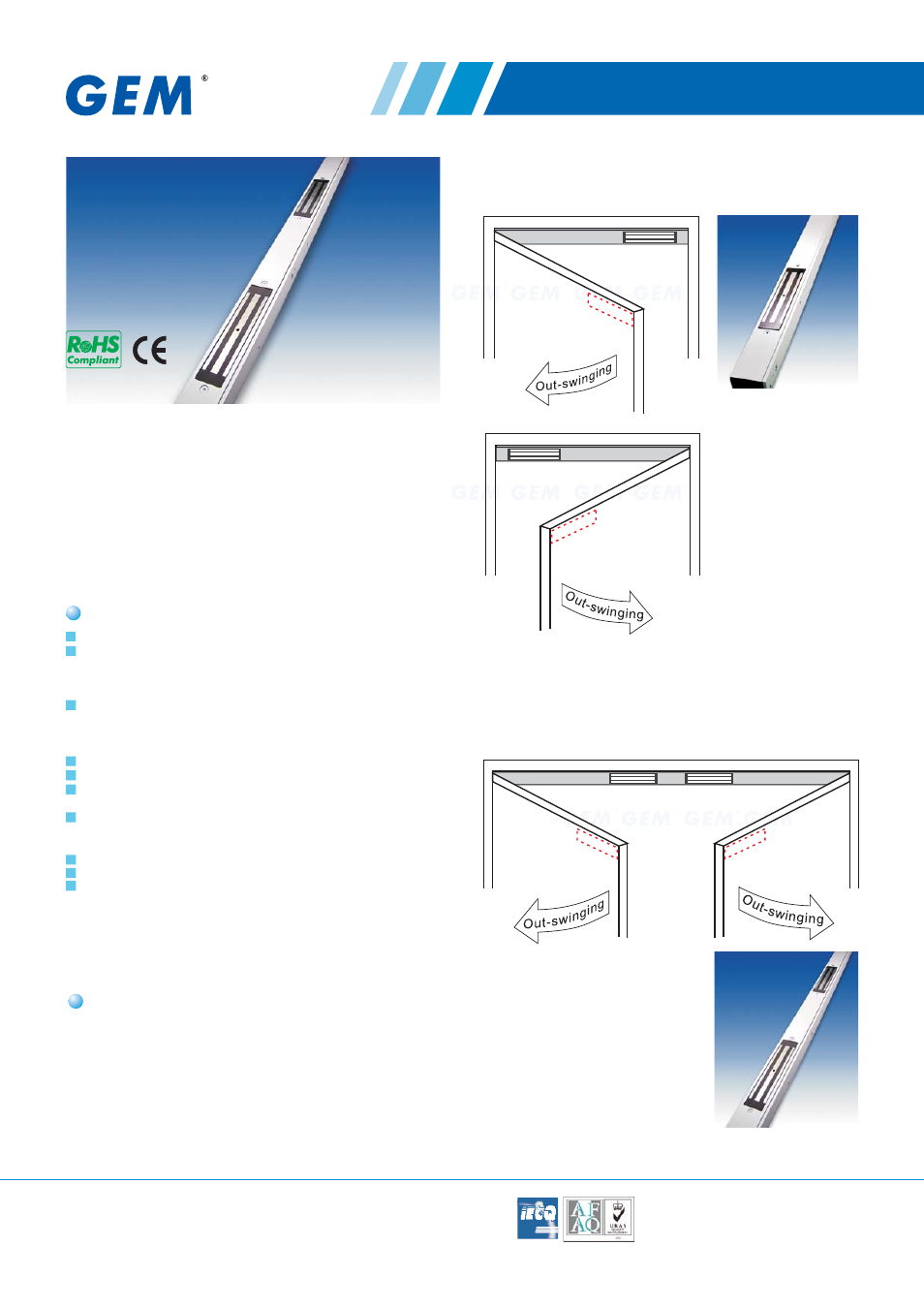

Single Action Door (Out-swinging)

Application for the Electromagnet: FDH-100M (Length :100 CM)

Double Door Leaf (Out-swinging)

Double Door Leaf (Out-swinging) Application for the Electromagnet:
FDH-200M (Length: 200 CM)

FDH electromagnetic lock has been designed to embed the

electromagnet in the doorpost and it offers to 600 LBS holding
force. The doorpost is installed in horizontally on the header
of the door-frame. Hence, the doorpost and doorframe will be
shaped into one and provides superior appearance.

This series of doorposts are available in 1 meter and 2 meter

length. One meter length of door-post is designed for single
door applications and two meter length of door-post is
designed for double door applications.

No. 13, Zhong Sing Road, Tu-Cheng Industrial Zone,
Tu-Cheng City, Taipei, Taiwan 23678
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: [email protected]
