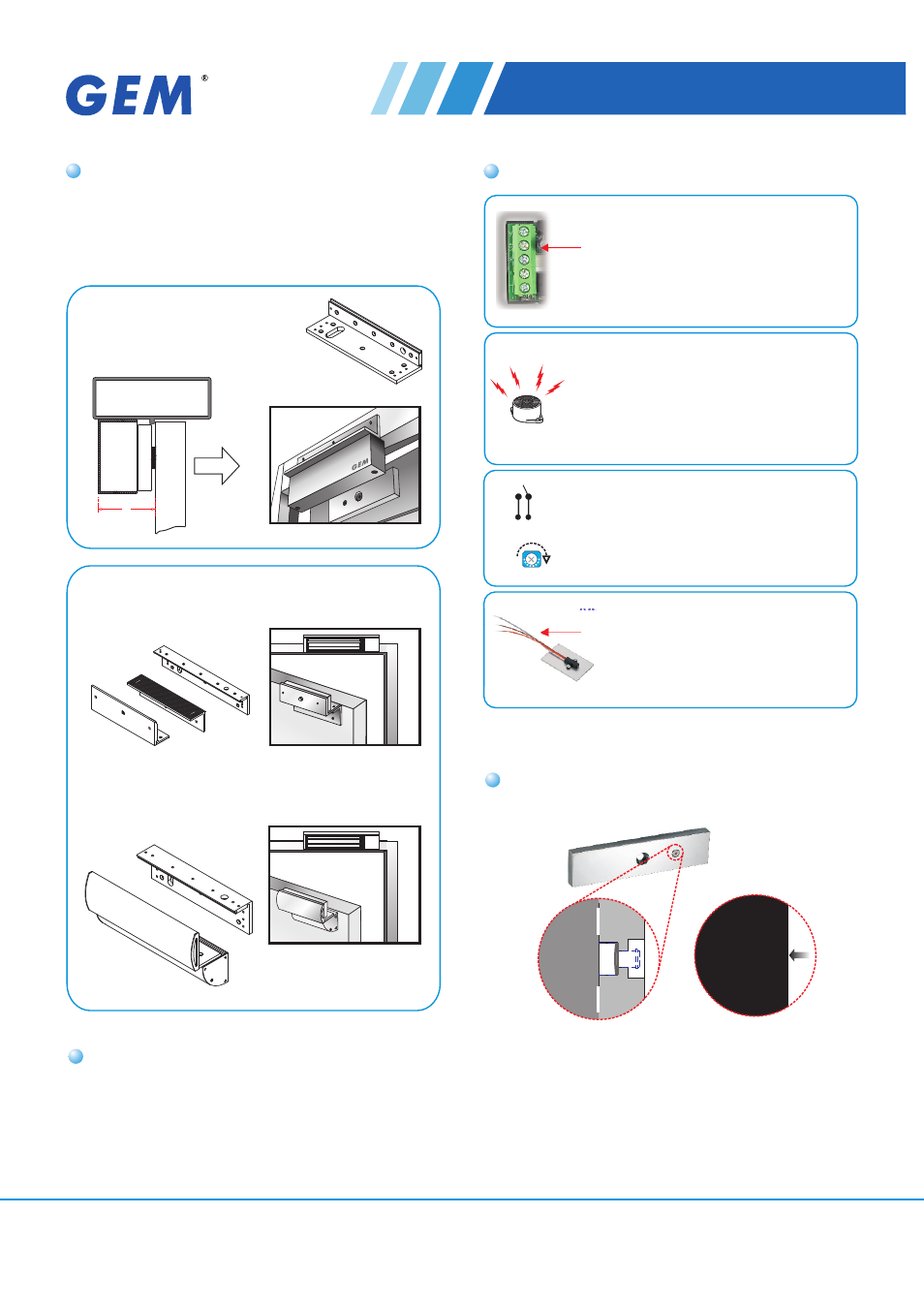

Gianni Industries EM-NH500 - Manual (Page 2)

L-NH500
LZ-NH500N
LZ-NH500NAU
GIANNI INDUSTRIES, INC.
xxxxx-TD : Relock time delay
Ensure the automatic lock mode after
the door is closed properly and it can
be adjusted from 1 to 80 seconds.
xxxxx-BZ : Buzzer Alarm
The alarm sounds when the door is not
closed and that has exceeded a specified
time limit. VR timer is adjustable from 1 to 20
seconds.
xxxxx-M : Bond sensor output
Indicate the locked & unlocked status with
visible LED indicator.
Bond sensor output
SPDT rated: 0.5A/125VAC;1A/24VDC
Operating Features
EM-NH500
Standard Electromagnetic Lock
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-EM-NH500 Ver. G Published on 2011.09.01
The product is warranted against defects in material and
workmanship while used in normal service for a period of 5
years from the date of sale to the original client. The GEM
policy is one of continual development and improvement;
therefore GEM reserves the right to change specifications
without notice.
Warranty
Optional Brackets
L-bracket for narrow door frames
When < 60 mm ,must
installed with "L" brackets.
"A"
LZ-bracket for inswing doors
Bracket installation is according to door swing
direction and door frame type , e.g. narrow frame
door , in-swing door , etc.
Anti-residual statement
Magnet Armature
(Power Off)
Magnet Armature
(Power On)
Anti-residual statement
Our electromagnet locks feature Anti-Residual Magnetism
(ARM) which ensures the door can be opened without any
resistance from left over magnetism imparted to the armature
plate
60 mm
Magnet
A
rm
a
tu
re
Door Frame
Door
Leaf
A
Outswing
Timer Adjust
Shorten
Trigger
: Door status xxxxx-DS
Door Status Sensor indicates the door
is in an open or closed status.
Door status output
SPDT rated: 0.2A/12VDC
