Installation

(for qualified installers only)

4090102

100-01212_000

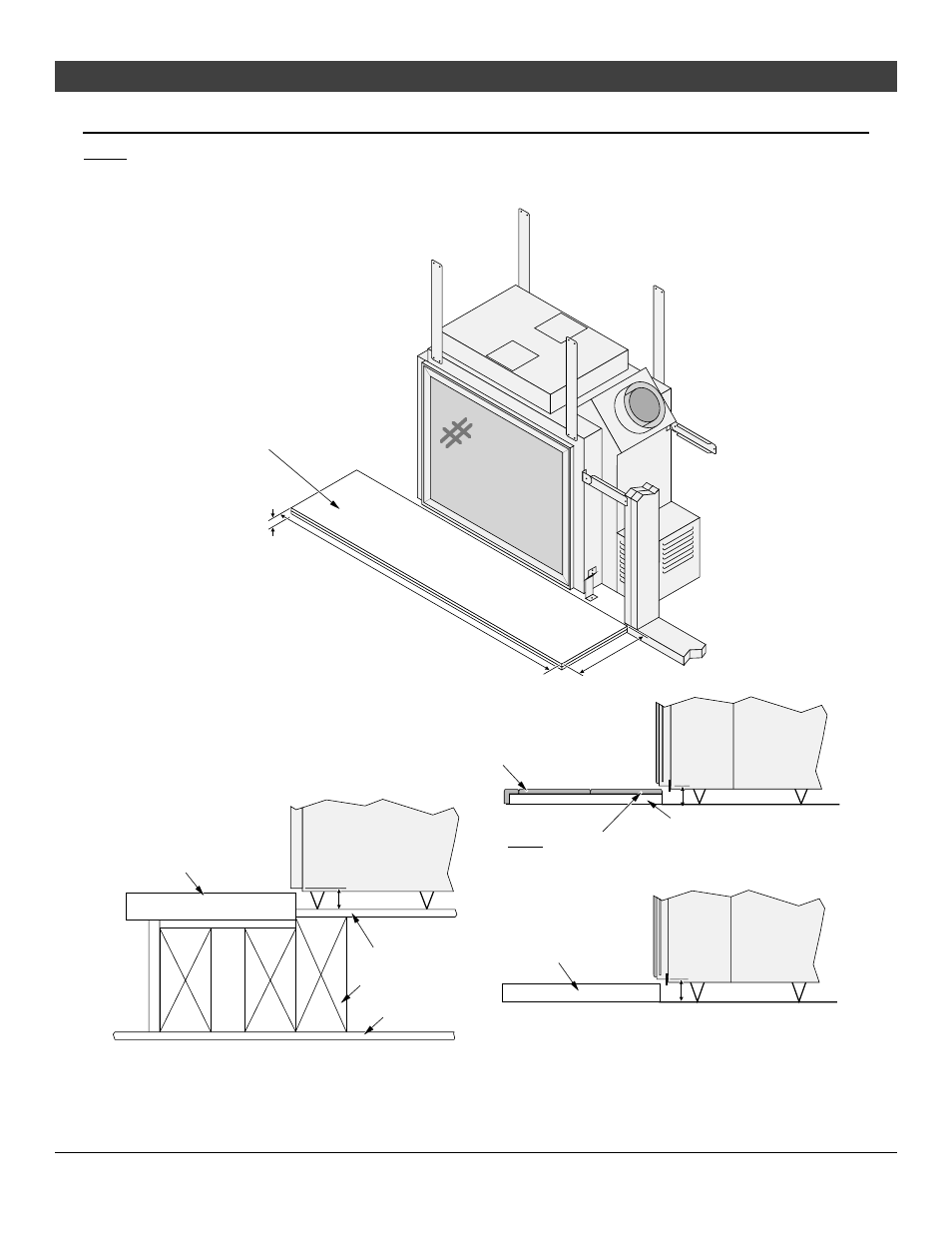

Hearth Requirements

NOTE: Whenever using a hearth over 1” thick, the fireplace will need to be raised.

Flush Hearth

Side View

Min.10”

Min. 64” (on ST, Pier will vary)

Min. 3/4”

Max 1”

Non-Combustible Hearth

Fireplace

1”

Plywood (OSB, etc.)

Framing

Sub-Floor

Hearth Material over 1” Thick

(granite, concrete, etc.)

Fireplace

1”

Marble

Fireplace

NOTE: Do not build a hearth more than the 1” maximum above the

base of the fireplace (it must fit under the glass frame).

1”

Tile

Cement Board

Figure 20
