22 Installation
(for qualified installers only)
© Travis Industries 4090102 100-01212_000

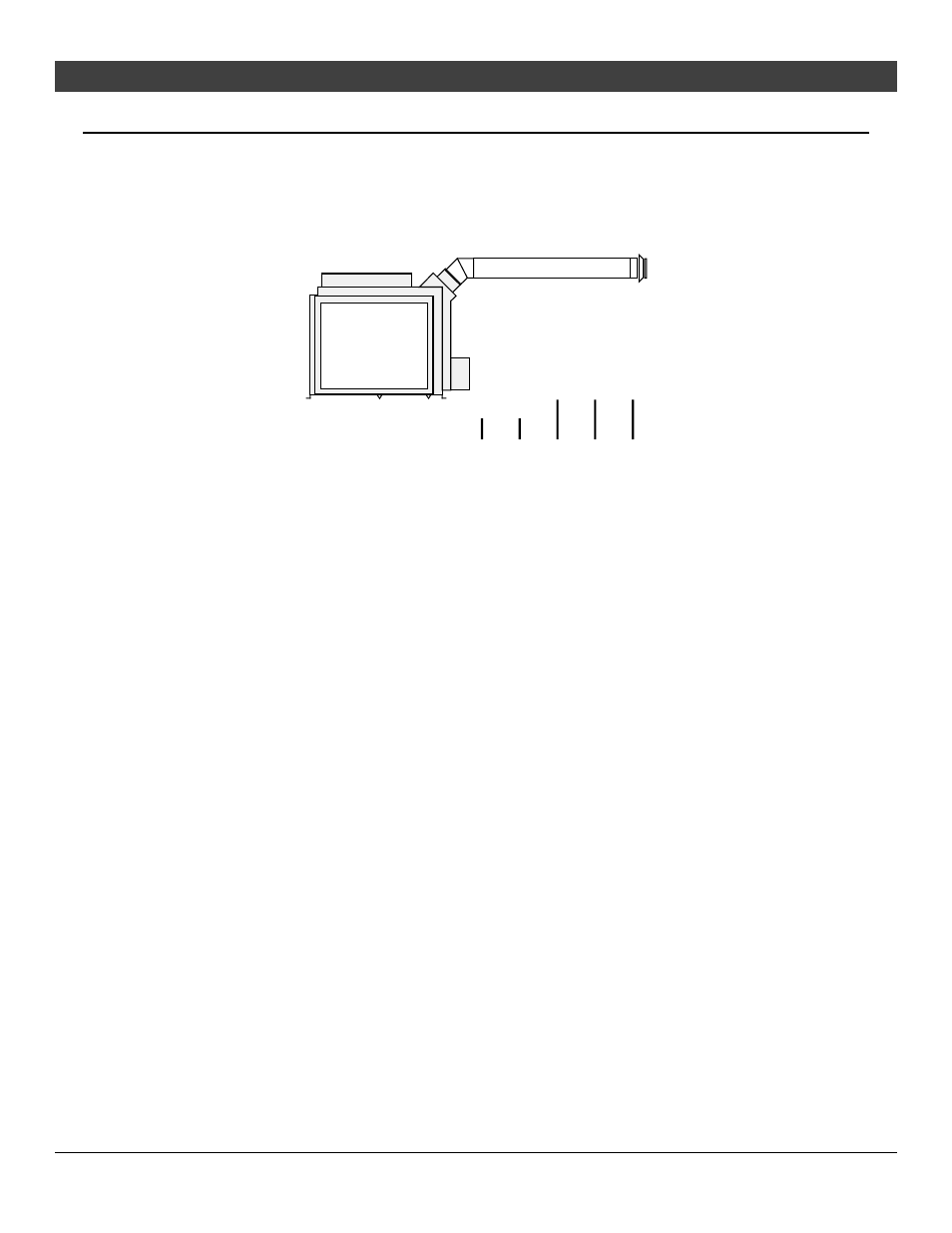

Approved Vent Configuration – Rear Vent, Horz. Term. (1 45
°
Elbow)
•
The vent must not exceed 5 feet (see chart below).
•
Use Exhaust Restrictor Position # 1.
•
Horizontal sections require a 1/4" rise every 12" of travel
0 feet
5 feet (max)
Figure 12
