Installation
(for qualified installers only)
11
© Travis Industries 4090102 100-01212_000

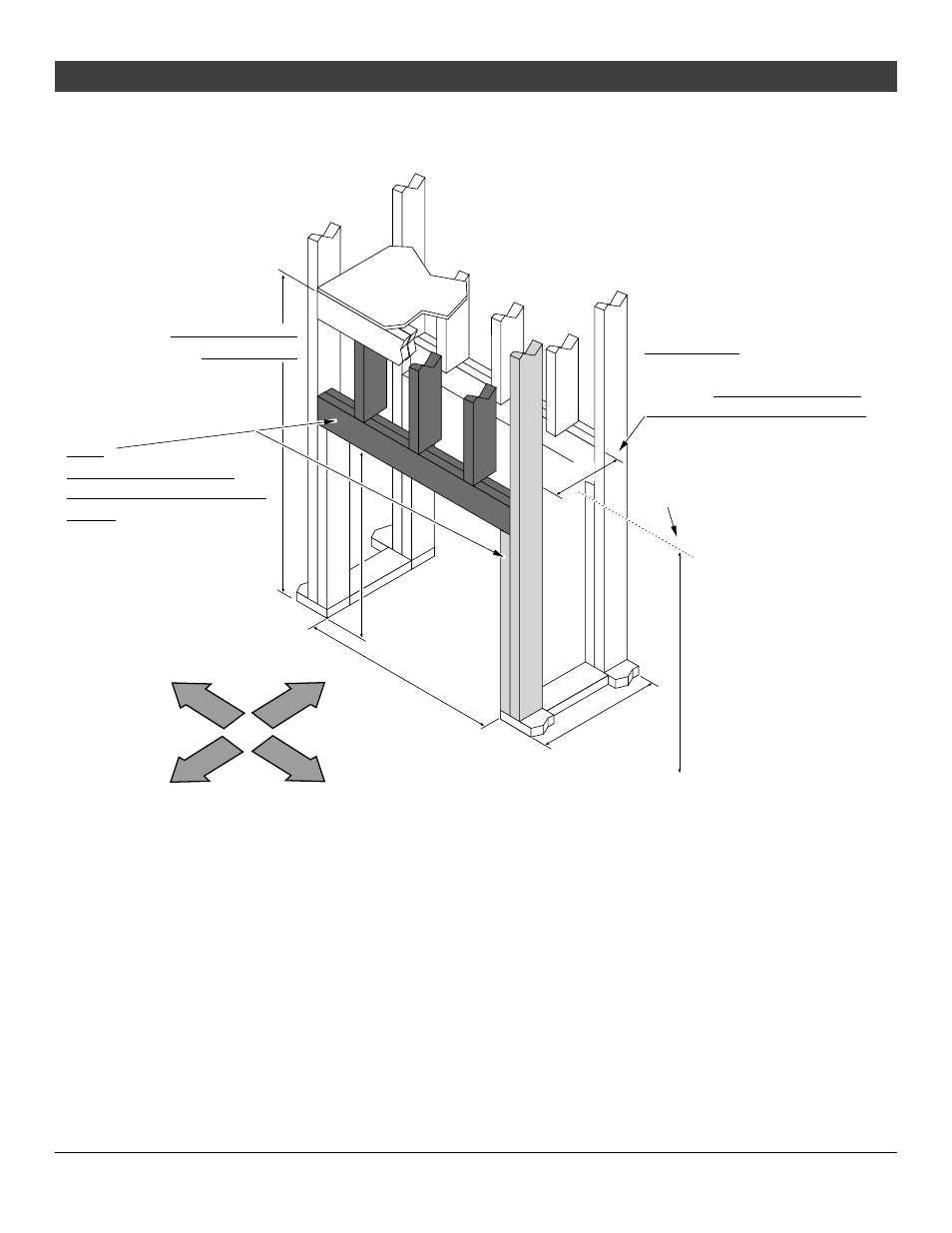

Minimum Framing 36 CF ST (See Through)
62-1/2"
Minimum 78” Fireplace
Enclosure Height
NOTE:
We recommend you install the
framing after placing the fireplace in
position.
As an alternative, you may omit the
framing above one side and back of the
fireplace until the fireplace is in position
(shown in gray).
56-1/2"
22-1/2"
Right
Left
Front
Back
42-1/4"
If venting to the rear using a 45° elbow directly
off the fireplace, the vent will be 42-1/4" above
the base of the fireplace.
Vent Clearances:
8-5/8" Diameter vent requires 3-1/2" clearance
to the sides. You may need to notch the
framing to accommodate this clearance.
15-5/8"
Figure 5
