564 SS FPX Arched Face

Upgrade Kit

98500683

Page 1 of 2

7/18/07

© Travis Industries, Inc.

Compatibility:

• 564 SS Fireplace with FPX Arched Face

Packing List:

• Tiling guide (2 pieces - left and right)

• (4) Mounting Brackets (attaches to the fireplace)

• (4) Screws

• (8) 8-32 Keps Nuts

This upgrade kit (98500683) must be installed prior to installing the facing material or face.

Installation

1

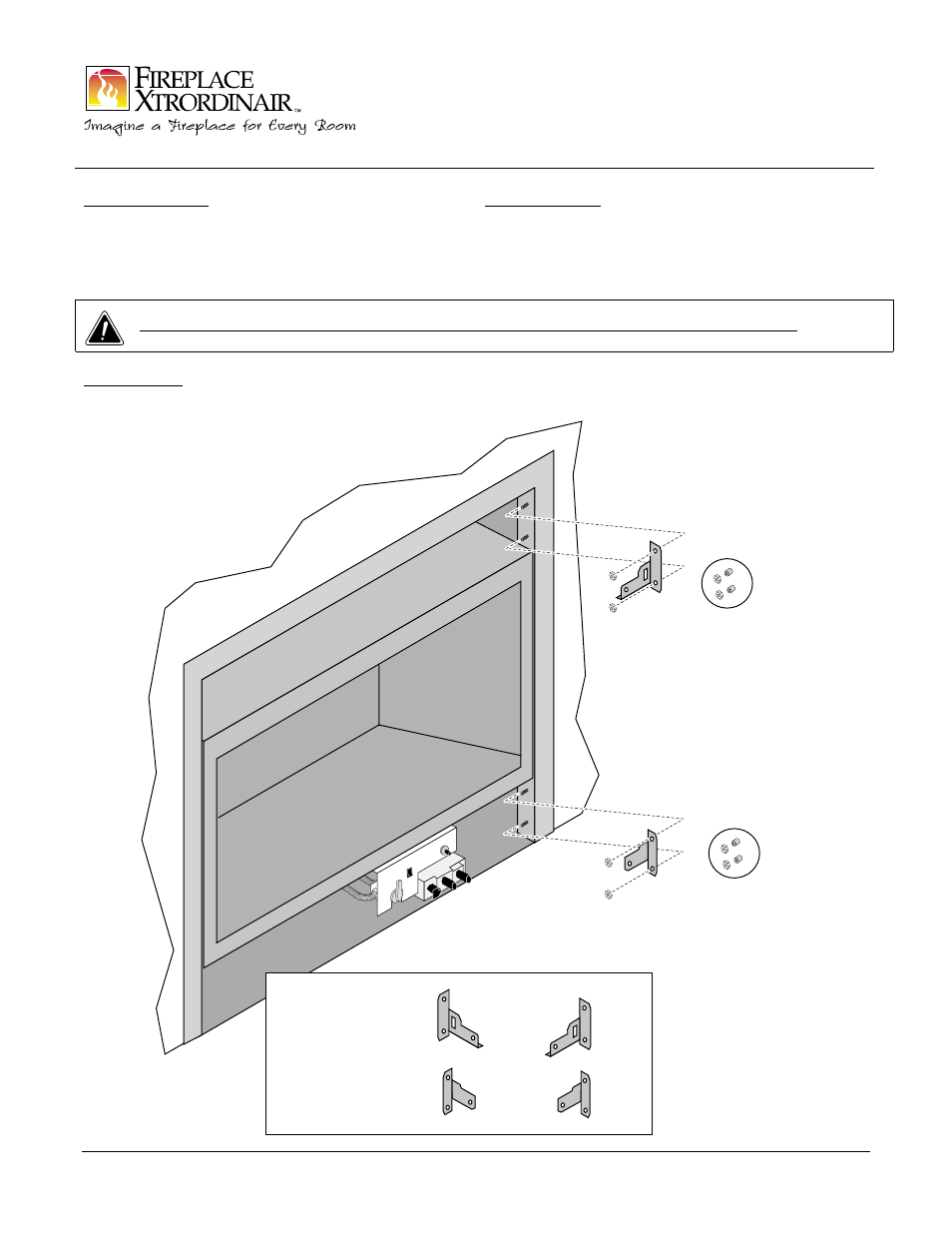

Attach the brackets to the fireplace following the directions below.

Remove and discard the nuts and bushings

above and below the firebox.

Place the upper and lower brackets in place

and secure using the nuts included with this

kit.

Repeat these steps for the opposite side.

Upper

Bracket

Lower

Bracket

Upper

Left

Lower

Left

Upper

Right

Lower

Right

Bracket

Identification

Discard the stock

bushings and nuts.

Discard the stock

bushings and nuts.
