12 Installation
(for qualified installers only)
© Travis Industries 4090102 100-01212_000

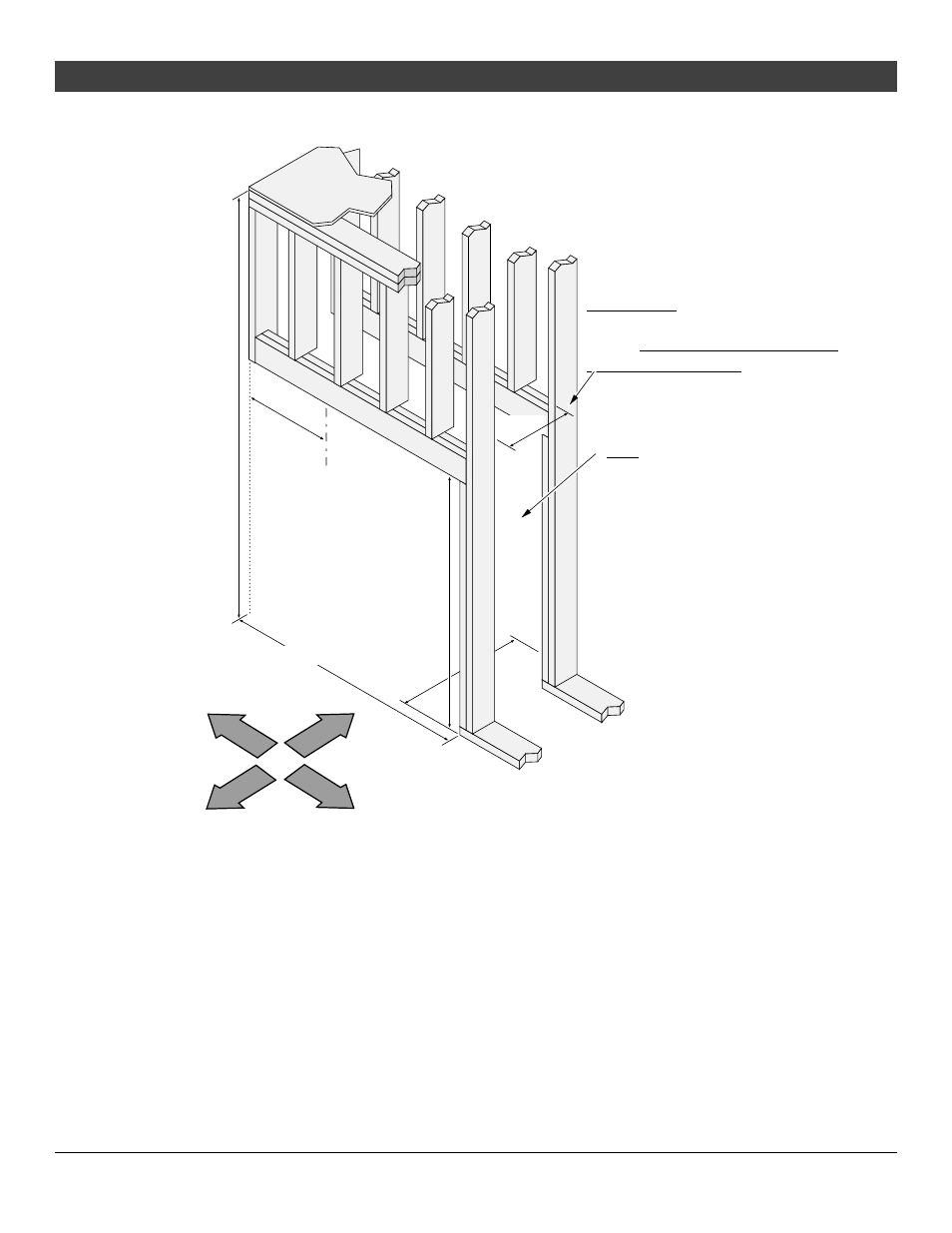

Framing Dimensions – 36 CF Pier
18-1/4"
22-1/2”
NOTE: Do not build into
this area - it must be left
clear to provide
adequate clearance for
the vent.
49-3/8”
56-1/2”
Minimum 78” Fireplace
Enclosure Height
Right
Left
Front
Back
Vent Clearances:
8-5/8" Diameter vent requires 3-1/2" clearance to
the sides. You may need to notch the framing to
accommodate this clearance.
15-5/8"
Glass
Centerline
Figure 6
