i.MX27 PDK 1.0 Hardware User's Guide, Rev. 1.0 Freescale Semiconductor 4-6
8. Select the CPLD data file (Figure 4-5).
9. Click to download the data file in the CPLD.
10. Wait about 10 seconds.
When the Status section displays PASS, programming the CPLD is completed.

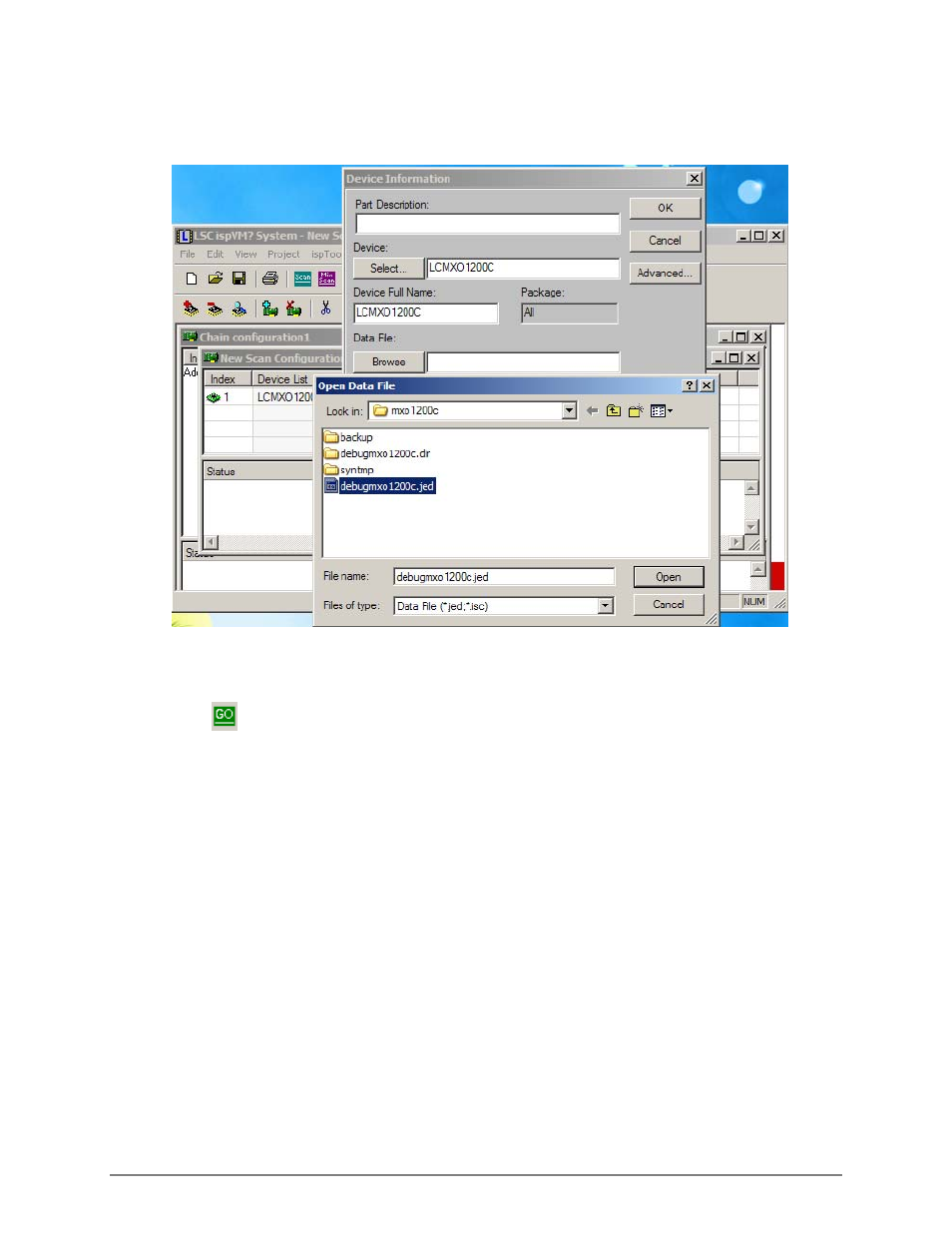

Figure 4-5 Selecting the CPLD Data File
