Freescale Semiconductor
i.MX27 PDK 1.0 Hardware User's Guide, Rev. 1.0
2-3

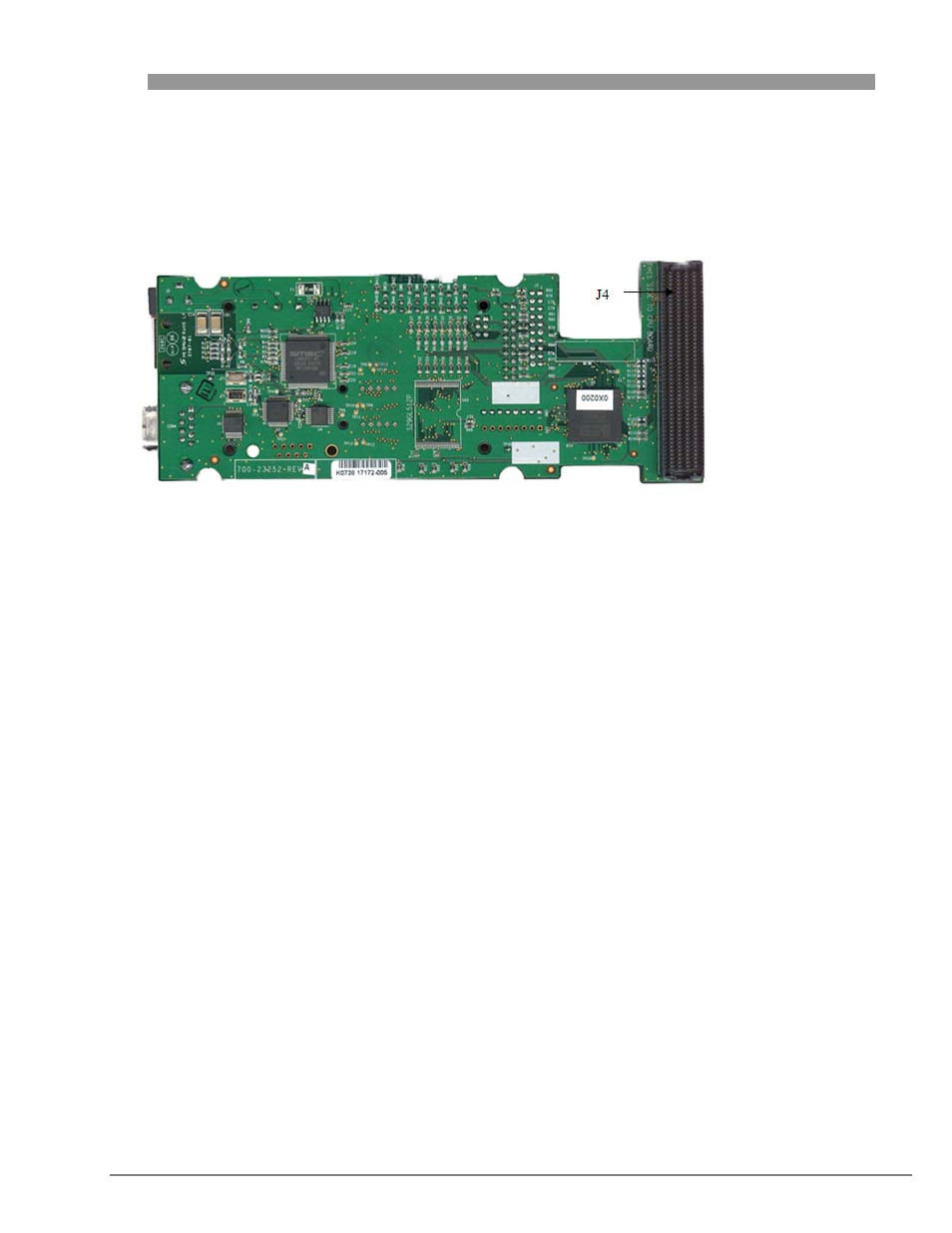

Figure 2-2 Debug Board Bottom View
2.1.2
Debug Board Bottom Connectors
Figure 2-2 illustrates the bottom view of the Debug board, where J4 identifies the 500-pin connector to the
CPU Engine board.
