Freescale Semiconductor i.MX27 PDK 1.0 Hardware User's Guide, Rev. 1.0 3-1
Chapter 3
Build the Platform
This chapter explains how to connect the three types of 3-Stack boards (Debug, Personality, CPU) together
(Figure 3-1), to make either a development platform (Personality board + CPU board + Debug board), or a
demonstration platform (Personality board + CPU board); and how to connect the 3-Stack platform to your
PC.
The three 3-Stack boards in your development kit may already be assembled. If the three boards are already
assembled, review the procedures in the following sections, and be sure to configure the Debug board
appropriately.
• To build a development platform, follow the procedures in “Build a Development Platform:
Assemble 3 Boards” on page 3-2.
• To build a demonstration platform, follow the procedures in “Build a Demo Platform: Assemble 2
Boards” on page 3-5.

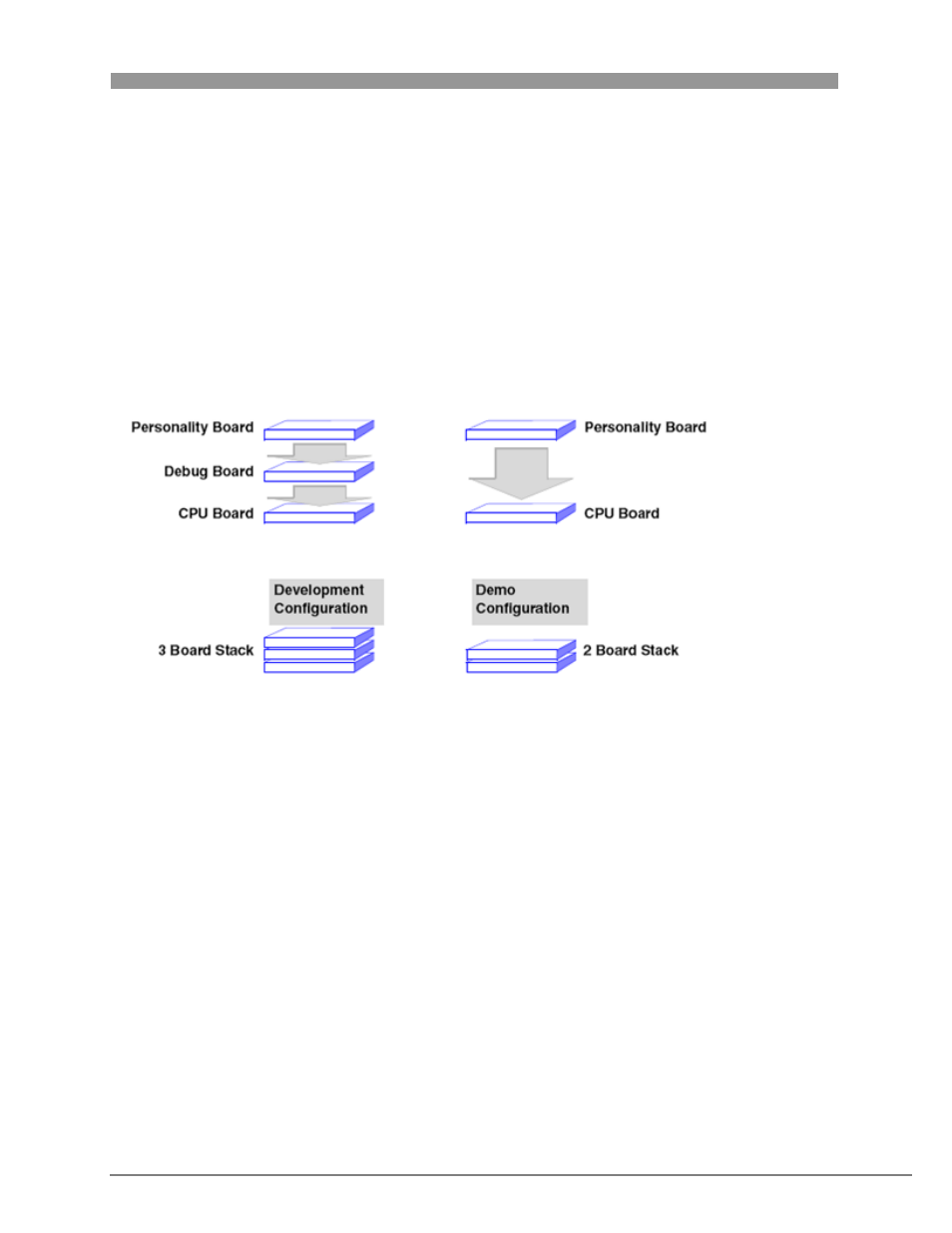

Figure 3-1 Platform Configurations
