Freescale Semiconductor i.MX27 PDK 1.0 Hardware User's Guide, Rev. 1.0 4-5
CS5
_B
A16 A15 A14 A5 A4 A3 A2 Description
0 1 0 0 1 0 1 0 Read Only CPLD Code Version #
0 1 0 0 1 0 1 1 Read Only Returns CAFÉ
0 1 0 0 1 1 0 0 Reserved
4.3.3 Programming the CPLD
To program the CPLD, use these steps:
1. Install Lattice ispLEVER Project Navigator Ver 6.0 on the PC.
2. From the Start menu, select Programs > Lattice Semiconductor > Accessories >
ispVM System.
3. Connect the Lattice CPLD ispDOWNLOAD Cable to the PC parallel port.
4. Attach the JTAG connector to CN2 on the Debug board.
5. Power on the Debug board.
6. Scan Chain.
The CPLD device list is displayed (Figure 4-4).
7. Double-click LCMXO1200C.

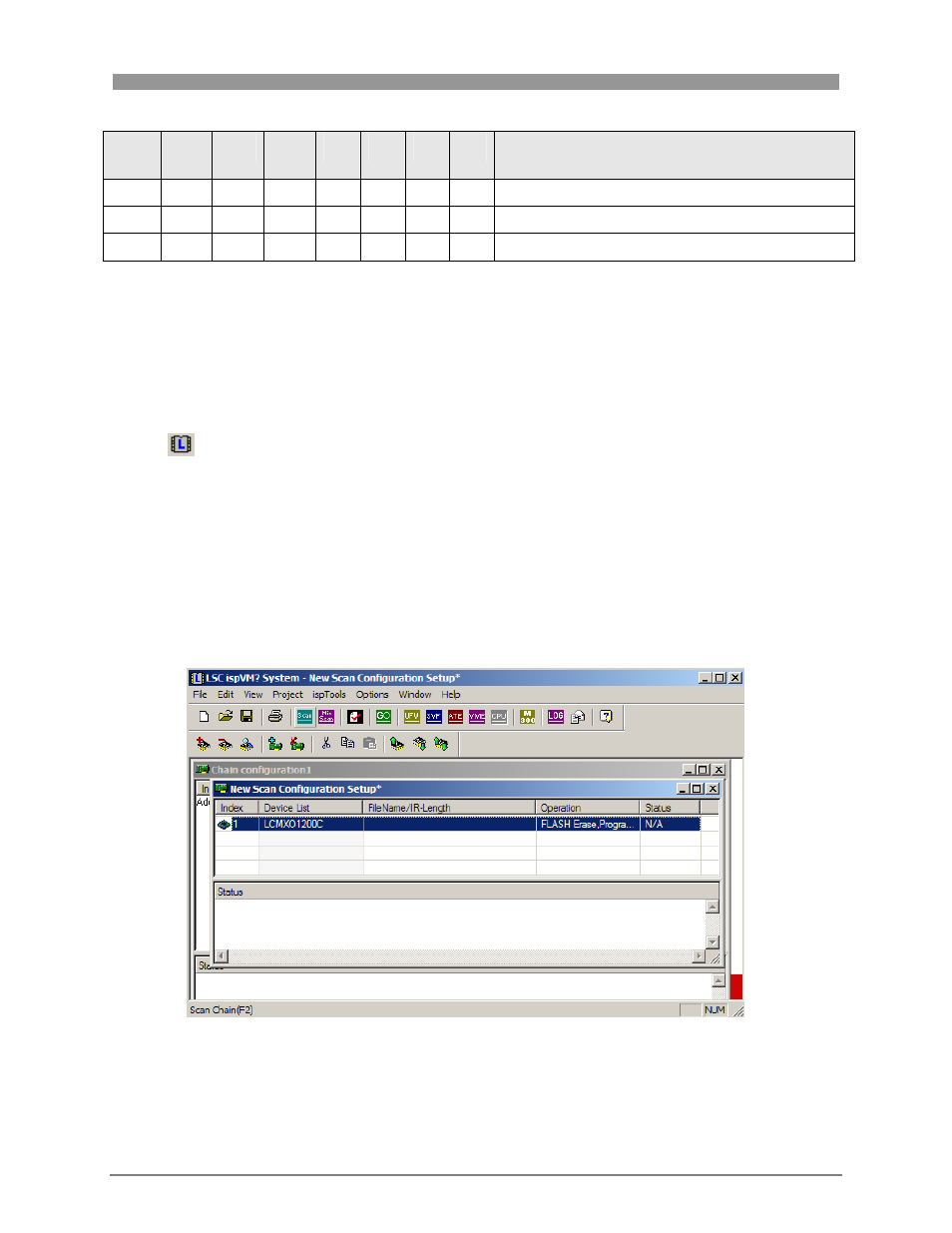

Figure 4-4 Scan CPLD Devices
