General, Physical dimensions, Model lr16 [specifications – Fostex LIVE RECORDING MIXER LR16 User Manual
Page 85: Recording time, Frequency response, Dimensions, Weight, Power requirement, Power consumption, Control unit main unit
85
Model LR16 [Specifications]
INSERT
INSERT
INSERT
INSERT
INSERT
INSERT
INSERT
INSERT
INPUT
AUX SEND (-2dBu)
EFF SEND (-2dBu)
GROUP (+4dBu)
R STEREO OUT (+4dBu) L
ST MIX OUT (-10dBV)
USB
MIDI OUT
FOOT SW
CONTROLLER
PANEL LOCK
LOCK
PHANTOM
POWER
Recording time:
approx. 16 hours (80GB HD,
16bit/44.1kHz, 16 tracks)
Frequency response:
20Hz - 20kHz +1dB, -2dB
(44.1/48kHz)
S/N:
Line (Trim Min) 95dB or more (typical)
Mic (Trim Max) 90dB or more (typical)
Dynamic range:
100dB or more (Trim Min)(Typical)
T.H.D.:
Mic (Trim Max) -> ST out: 0.01% or less
(1kHz, -2dBFS)
Line (Trim Min) -> ST out: 0.01% or less
(1kHz, -2dBFS)
General
Dimensions:
482 (W) x 136 (H) x 570 (D) mm
Weight:
approx. 13kg
Power Requirement:
120VAC 50/60Hz
230VAC 50/60Hz
240VAC 50/60Hz
Power Consumption:
approx. 60W

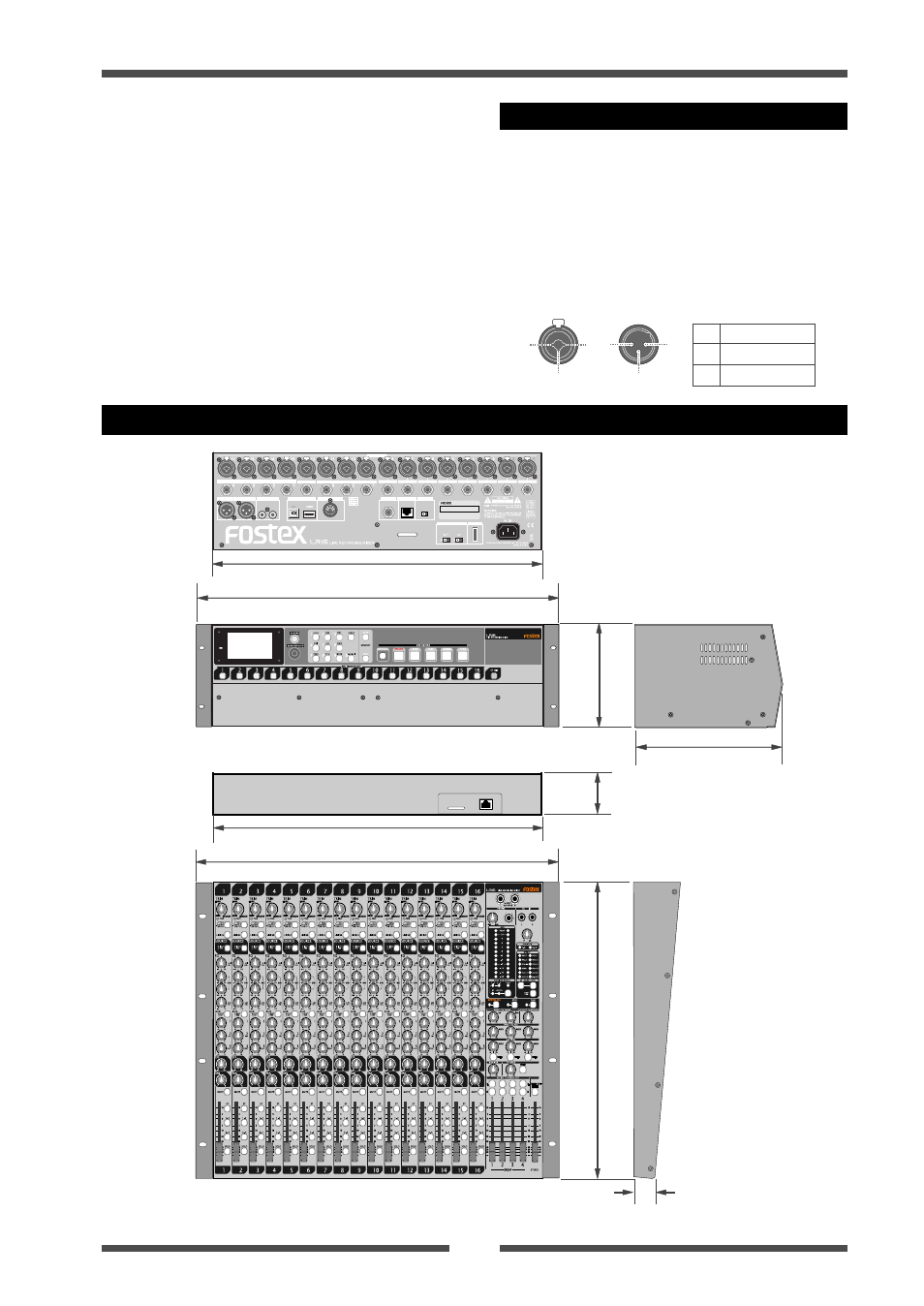

Physical dimensions
Control unit
Main unit
Line (Trim Min) -> Phones: 0.1% or less
(1kHz, 70mW, 32
Ω
)
482
437
482
437
24
355
185
129
54
1
2
3
2
1
3
1
2
3
GND
HOT
COLD
