Model LR16 [Before using the unit]
CONTROLLER

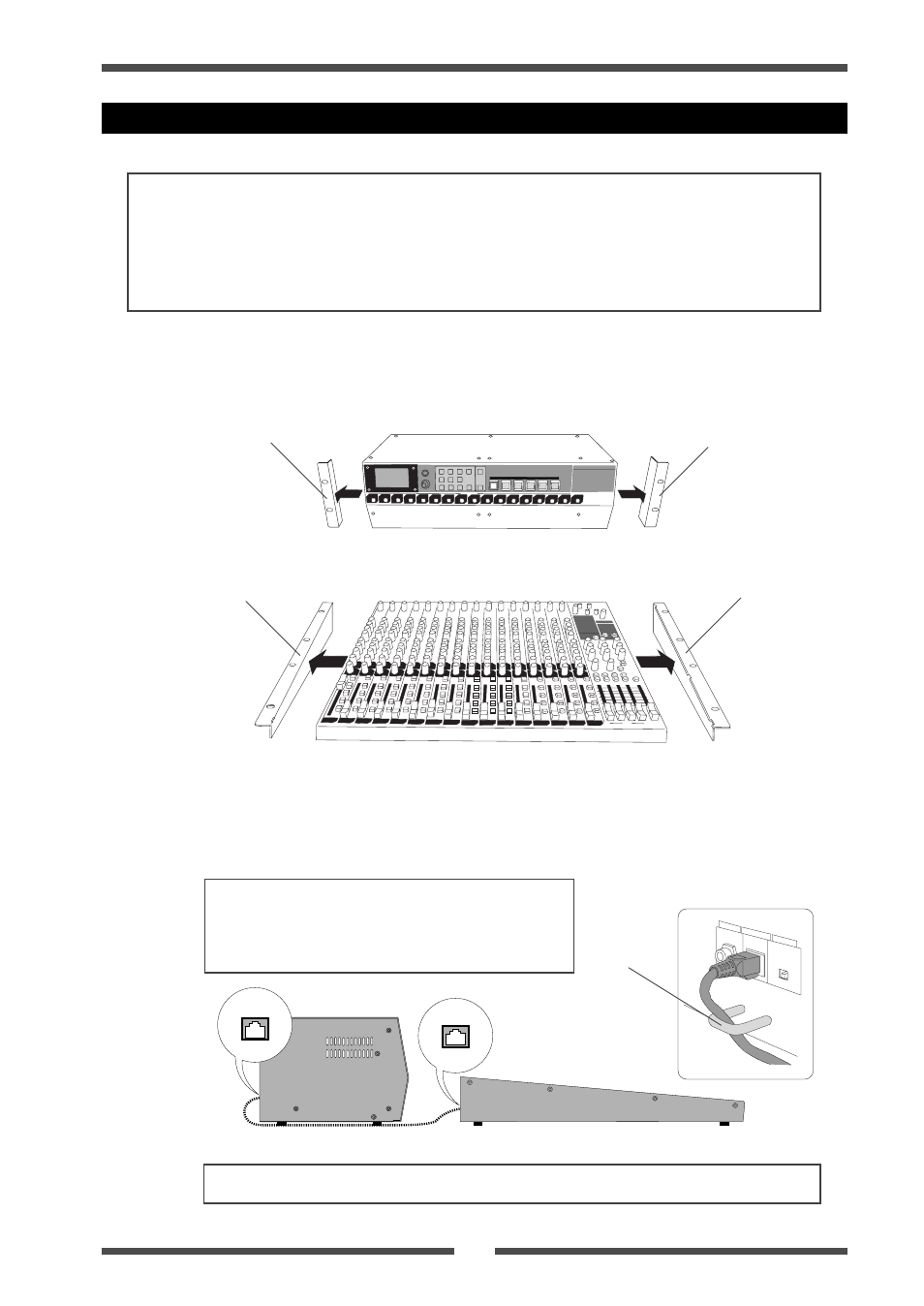

(1) Remove the rack mount angles attached to the side panels of each unit.
The removed rack mount angles and fixing screws are used in step (3) below, so be
careful not to loose them.
(2) Connect the [ETHER] connector of the control unit and the [CONTROLLER] connector
of the main unit using the supplied CAT-5 cable.
The cable should run through the cable guides fixed near the connectors of the both
units (see below).
Follow the procedure below to integrate the control unit and main unit.
: Work on a flat and stable surface. It is recommended to put the units on a soft
cloth (or blanket) to protect the units.
• Phillips-head screwdriver (which matches the fixing screws for rack mounting)
• The supplied CAT-5 cable
Control unit
Main unit
Rack mount angle
Rack mount angle
Rack mount angle Rack mount angle
: Insert the connector of the cable firmly in the correct direction.
Main unit
Control unit
Integrating the control unit and main unit
Cable guide
: Do not connect or disconnect a CAT-5
cable while the LR16 is powered on.
When you connect or disconnect a CAT-5 cable,
make sure that the LR16 is powered off.
